Robland SD510

new machine

Machine Overview

Introducing the Robland SD510

The Robland SD510 is Robland's most Industrial planer thicknesser,

with a large planing with of 510mm and a maximum thickness depth of 250mm the SD510 will easily cope with the demands of most joinery shops.

The machine has been equiped with a 7.5HP motor so will happily machine large depths through the hardest of timbers, and having 2250mm planner tables the SD510 will straigten longer lenghts with ease.

This machine is perfect for the company that does not have the space for seperates but still needs the quality and durability of stand alone machines.

Product Features

  • 7.5 HP

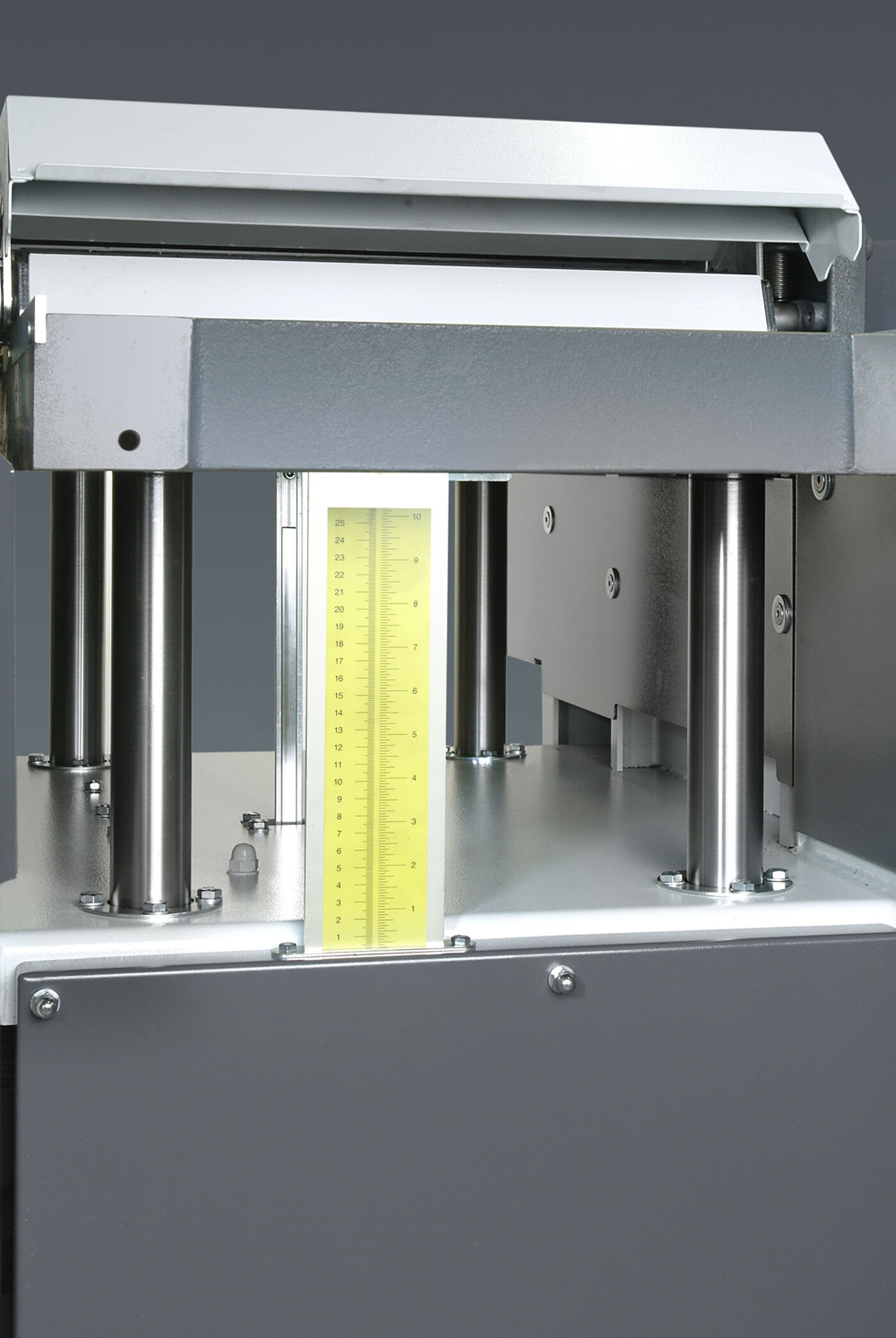

  • Digital readout for thicknesser table
  • Max thickness capacity of 250mm
  • 510mm planer width
  • 2250mm planer tables
  • 4 feed speeds

Product Options

  • 10 HP motor
  • Tersa block
  • 2 friction rollers in the thicknesser table
  • Auto star delta
  • Mortising unit

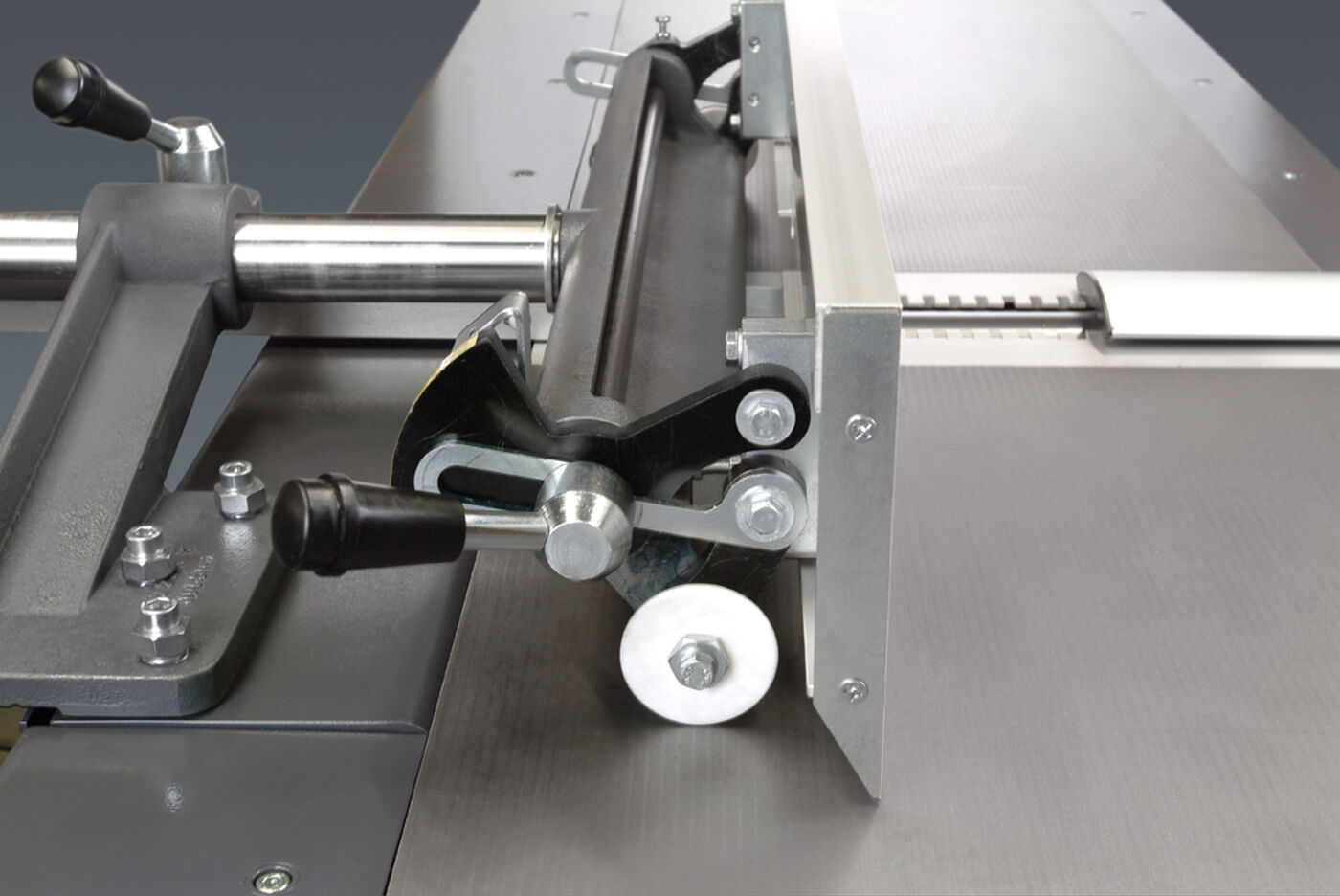

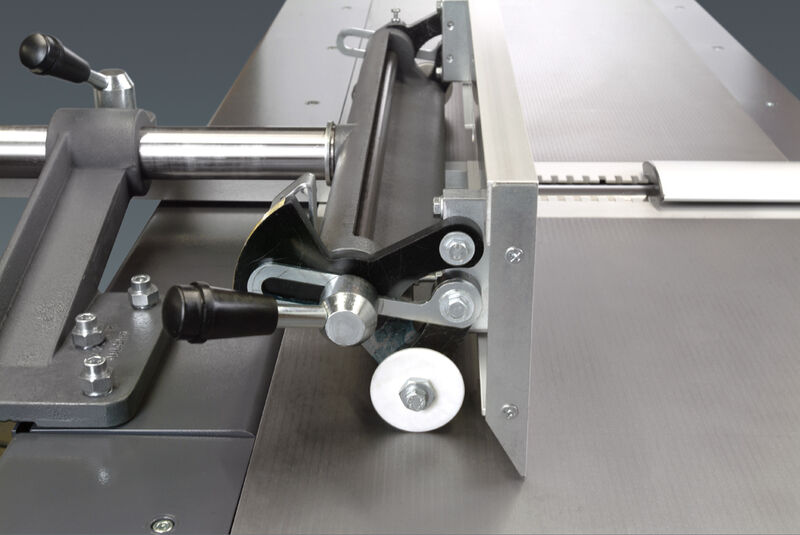

  • Suva matic bridge guard

Technical Details

PLANER

Planer width 510 mm

Total lenght planer table 2250 mm

Spindle diameter 100 mm

Number of knives 4

Dimensions of knives 510 x 30 x 3 mm

R.P.M 6000 t/min

Planer table height 790 mm

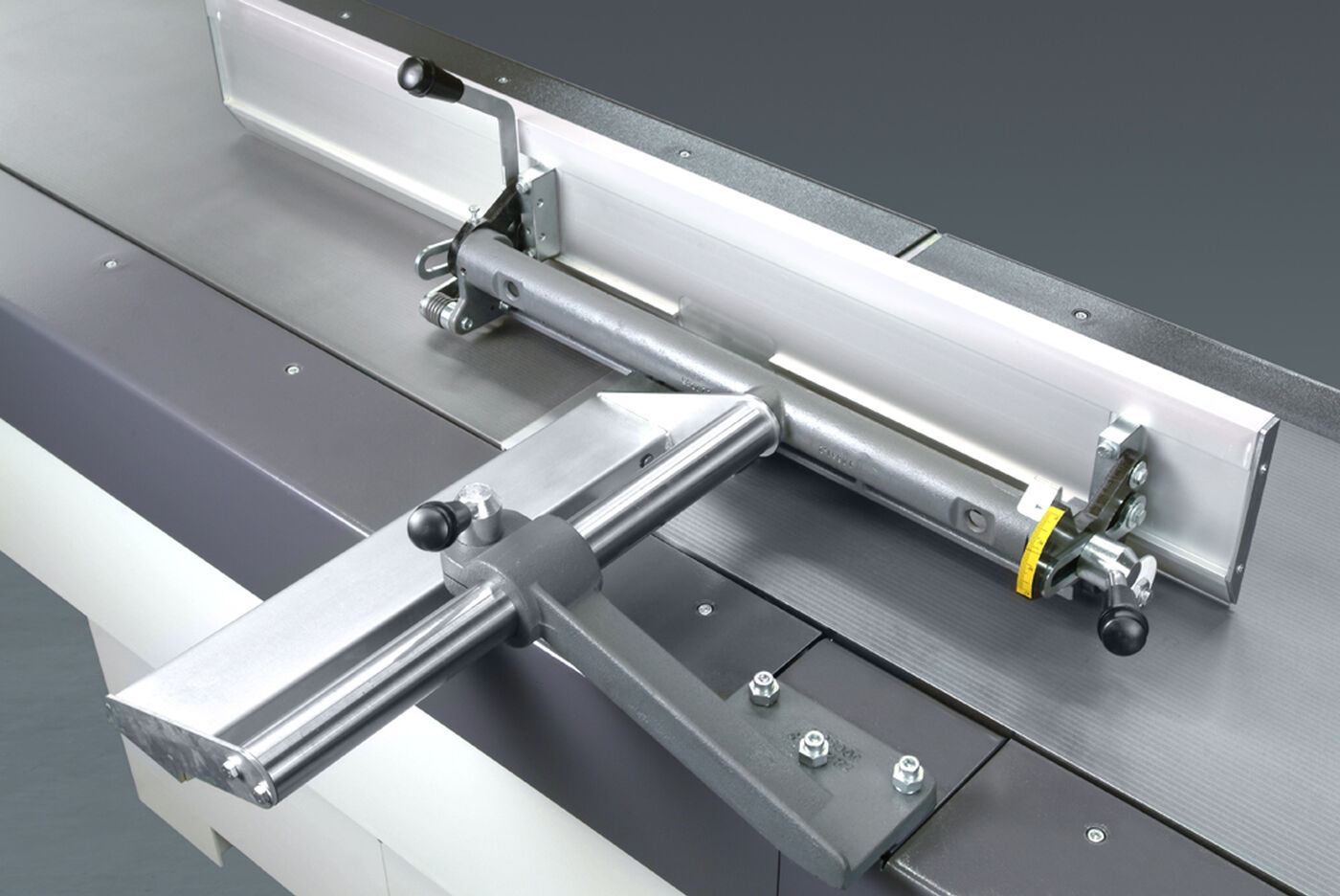

Length planer fence 1500 mm

Height planer fence 200 mm

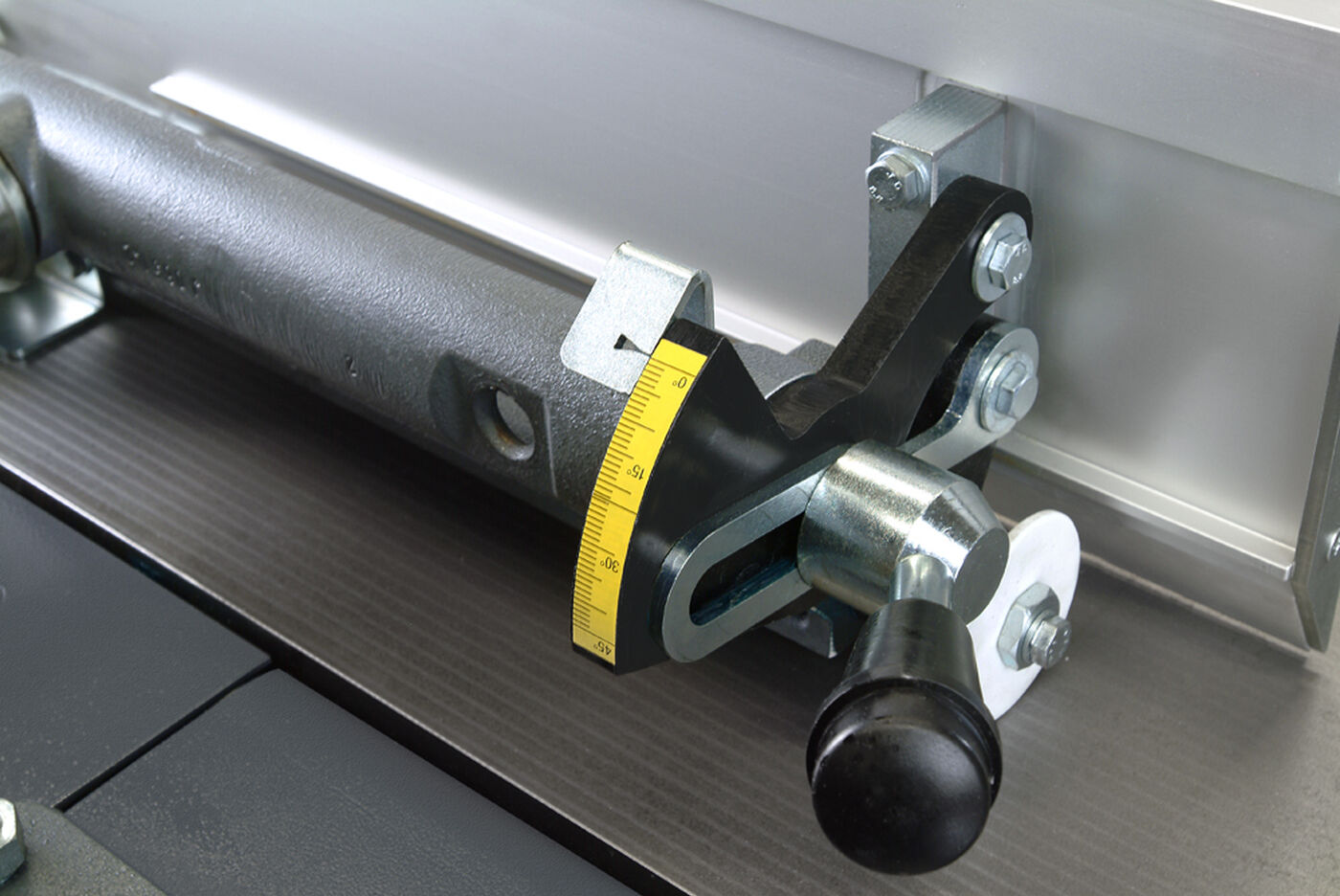

Inclination planer fence 90° en 45°

Max. planer capacity 6 mm

Motor 5,5 kW (7,5 kW option)

Tables: cast iron

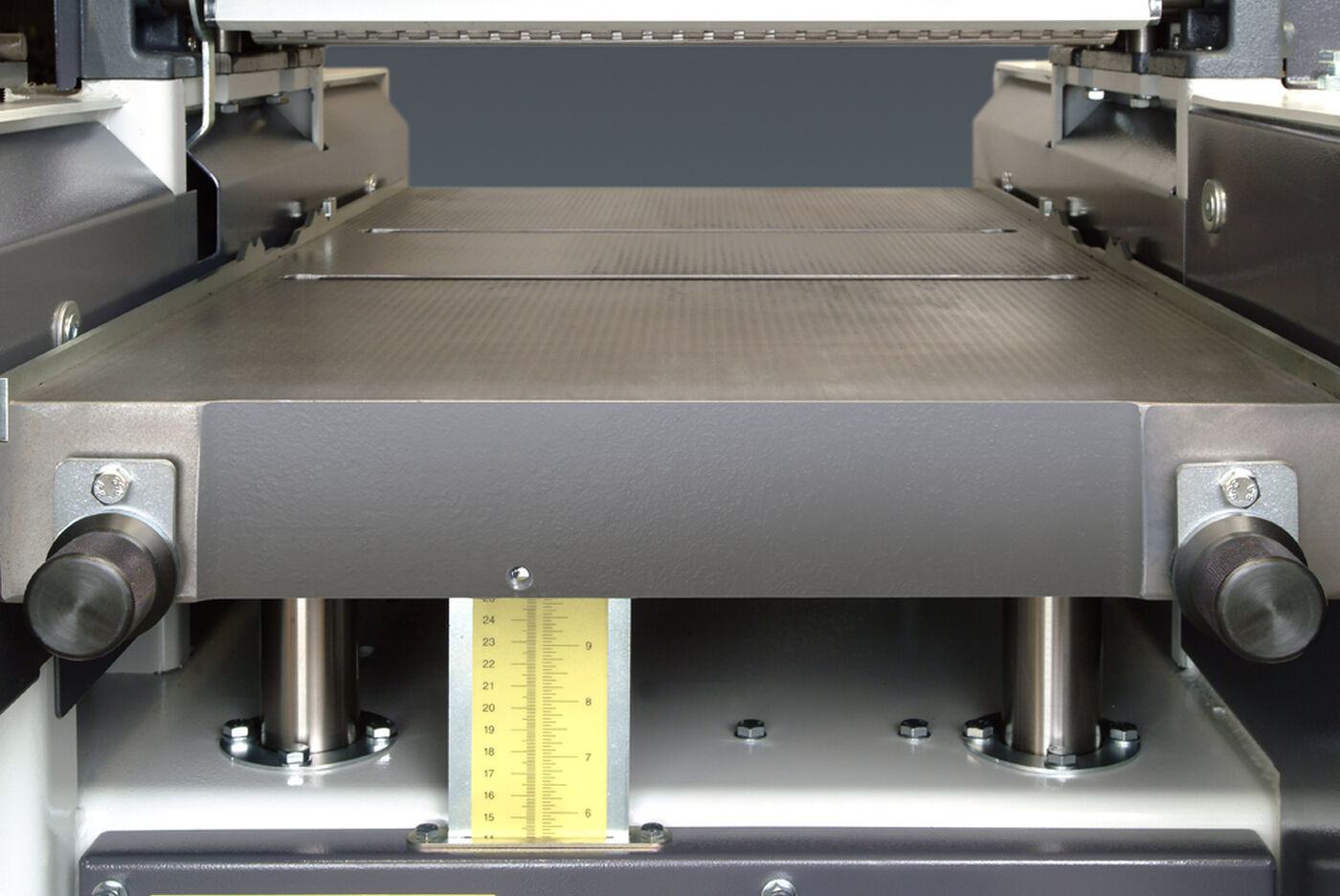

THICKNESSER

Table size 855x510 mm

Max. thickness capacity 250 mm

Feed speed 5-8-10-16 m/min

Diameter feeder rolls 50 mm

Electrical raise and fall thicknesser table 375 mm/min

Table: cast iron 960 mm




MORTISER

Dimensions table 600 x300 mm

Stroke: cross 200 mm

Stroke: in-out 150 mm

Stroke: up 150 mm

Capacity chuck 0-16 mm

R.P.M 3000

Total weight without mortiser 900 kg

Total weight with mortiser 1000 kg

Tables: cast iron

Steel bars and linear bearings

Packing dimensions:

SD-510 (LxWxH) 2300 x 1150 x 980 mm

SDB-510 (LxWxH) 2300 x 1500 x 980 mm




STANDARD EQUIPMENT

4 feeding speeds (electrical)

5,5 kW motor

Electrical raise and fall of the thicknesser table

Pressure bars between feeder rolls and arbor

Manual star-delta starting

Magnetic knife setting jig

Digital read-out thicknesser




OPTION

Mortiser unit

7,5 kW motor

Automatic star-delta starting

for 5,5 and 7,5kW motor

Wigo planer arbor

2 friction reduction rolls in thicknesser table

Product Specification

Weight 900kg
Dimensions crate 2300 x 1150 x 980 mm
Planer width 510 mm
Total length planer tables 2250 mm
Diameter cutter block 100 mm
Knives 4
Dimensions knives 510 x 30 x 3 mm
R.p.m. 6000
Dimensions planer fence 1500 x 200 mm
Inclination planer fence 90° - 45°
Max. depth of cut 6 mm
Motor power 5,5 kW (7,5 PS/hp) option 10PS/hp
Dimensions thicknesser table 855 x 510 mm
Capacity thicknesser 260 mm
Feeding speed 5 - 8 - 10 - 16 m/min
Diameter feeder rollers 50 mm
Electrical rise and fall thicknesser table 375 mm/min.
