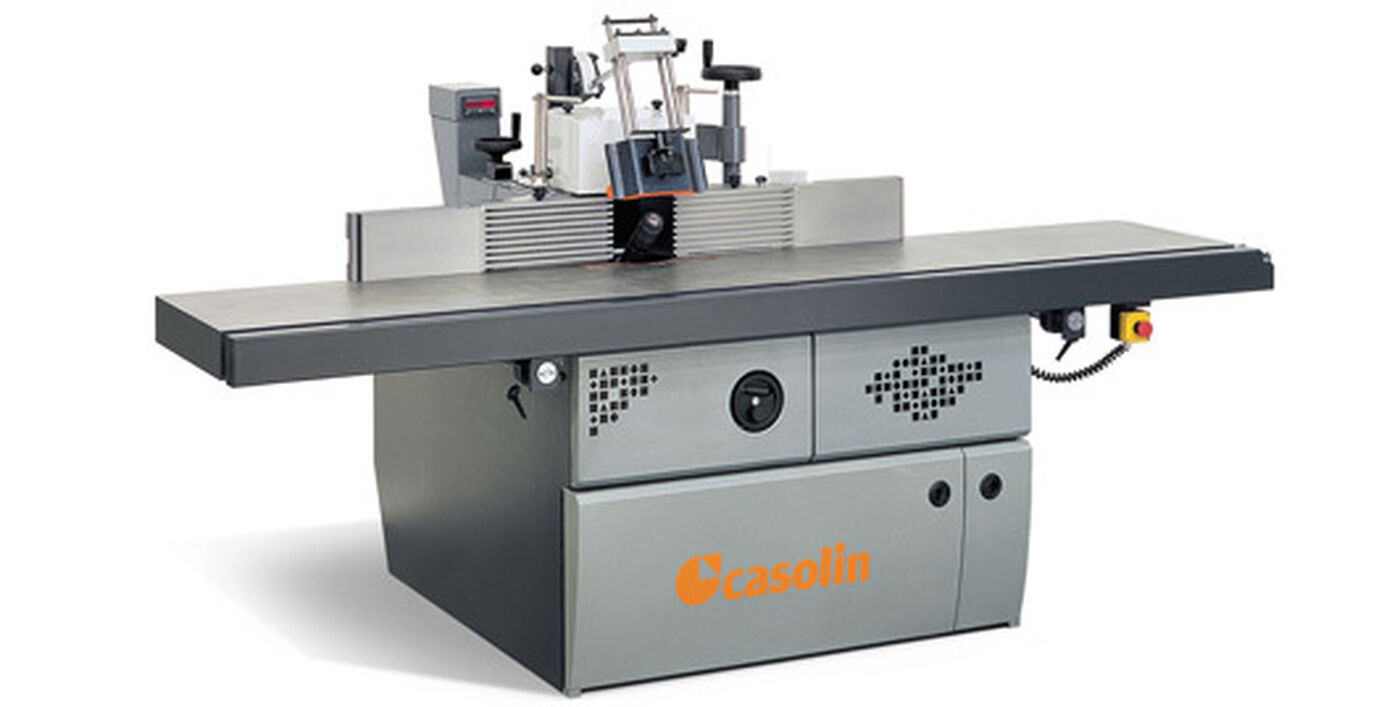

Casolin F45 Tilting spindle +45 degrees
Casolin F45 Tilting Spindle Features
Tilting shaft -10 +45 degrees
Basic model without table extensions
New work table regulation with moving table and hand wheel
Quick and practical alignment
Guaranteed precision with the table's dovetail profile
Motorized shaft lifting and tilting

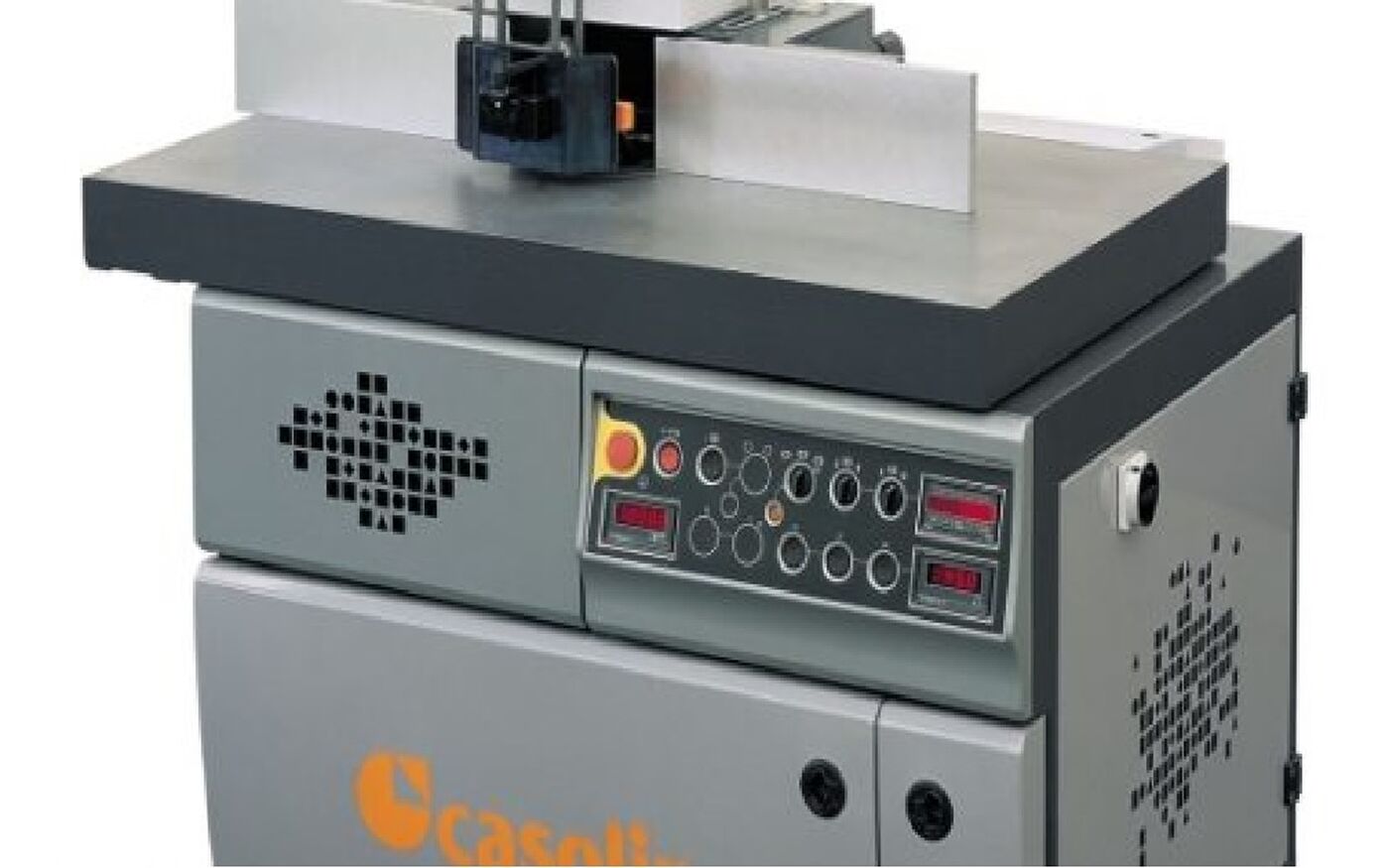

Digital read out for for tilting and speed
Spindle cap with aluminium table standard length 360 mm
Cap movement on prismatic guides giving high precision positioning
Product Documentation
Casolin F45 Tilting spindle +45 degrees Specification
| Shaft working length | 140 or 180 mm |
|---|---|
| Shaft tilting | -10 +45 degrees |
| Vertical stroke | 155 mm |
| Power of standard motor | 5.5 Kw |
| Table dimensions | 2500 x 770 mm |
