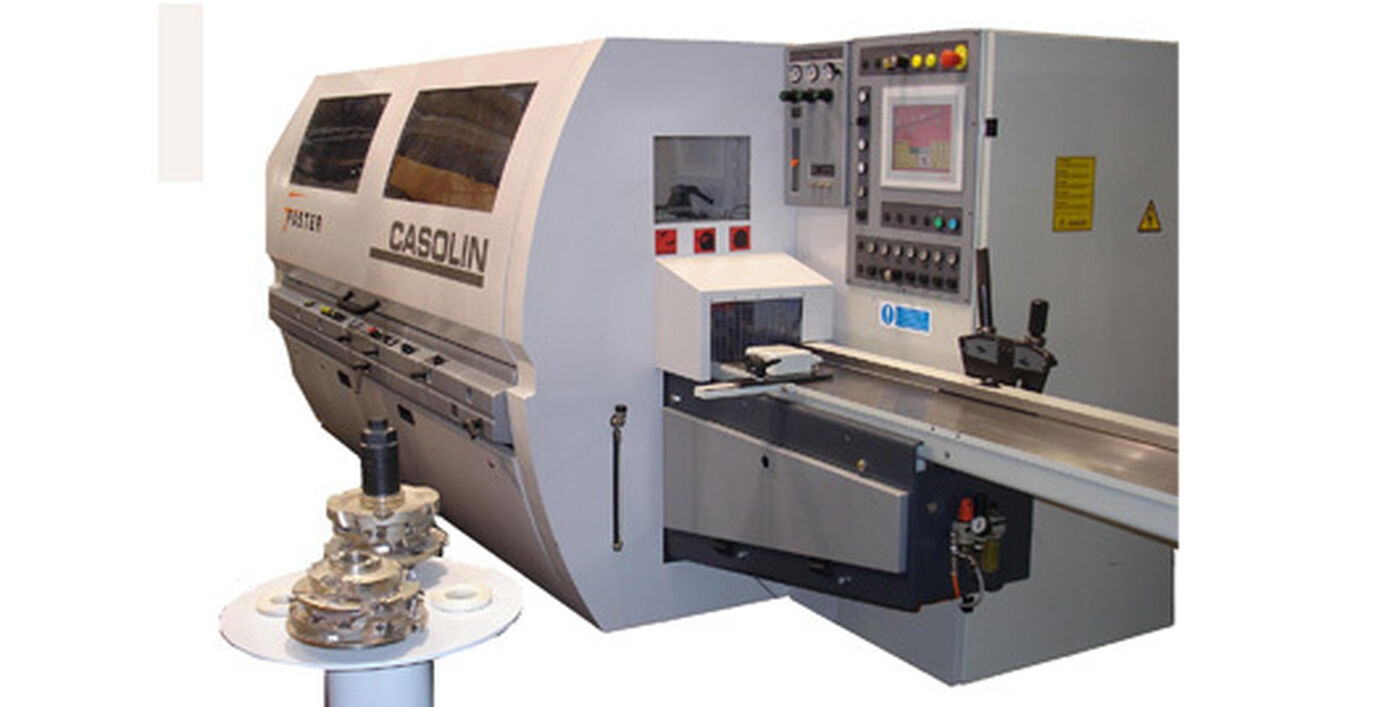

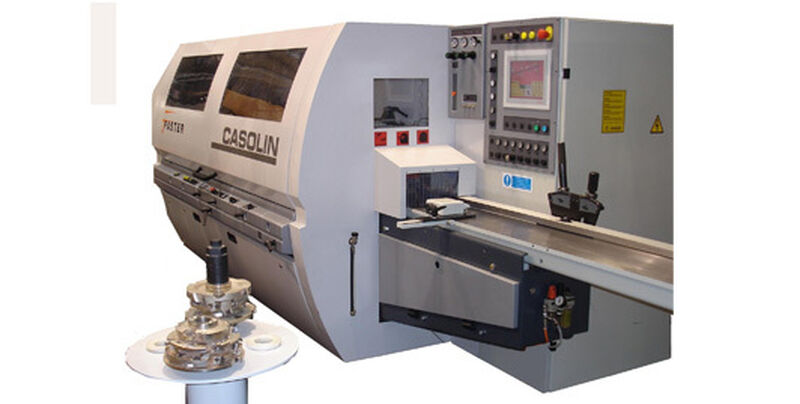

Casolin Faster

About the Casolin Faster

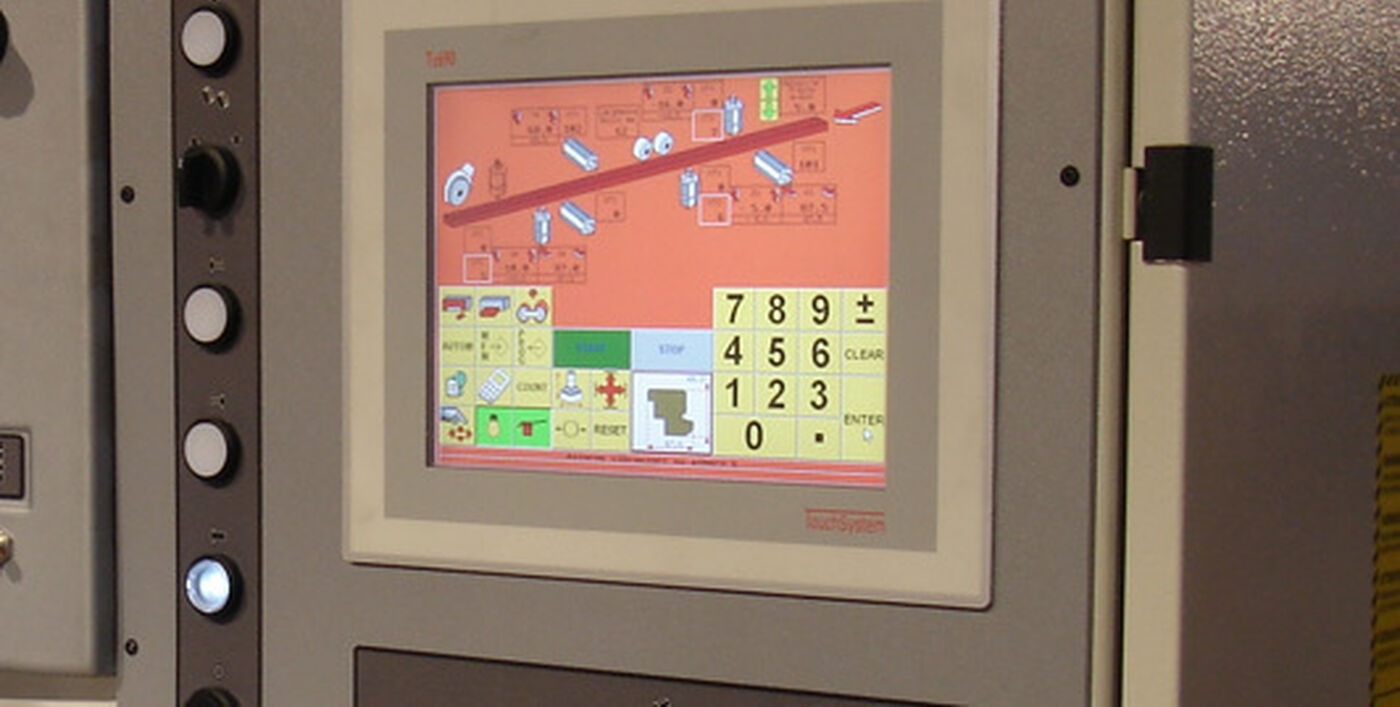

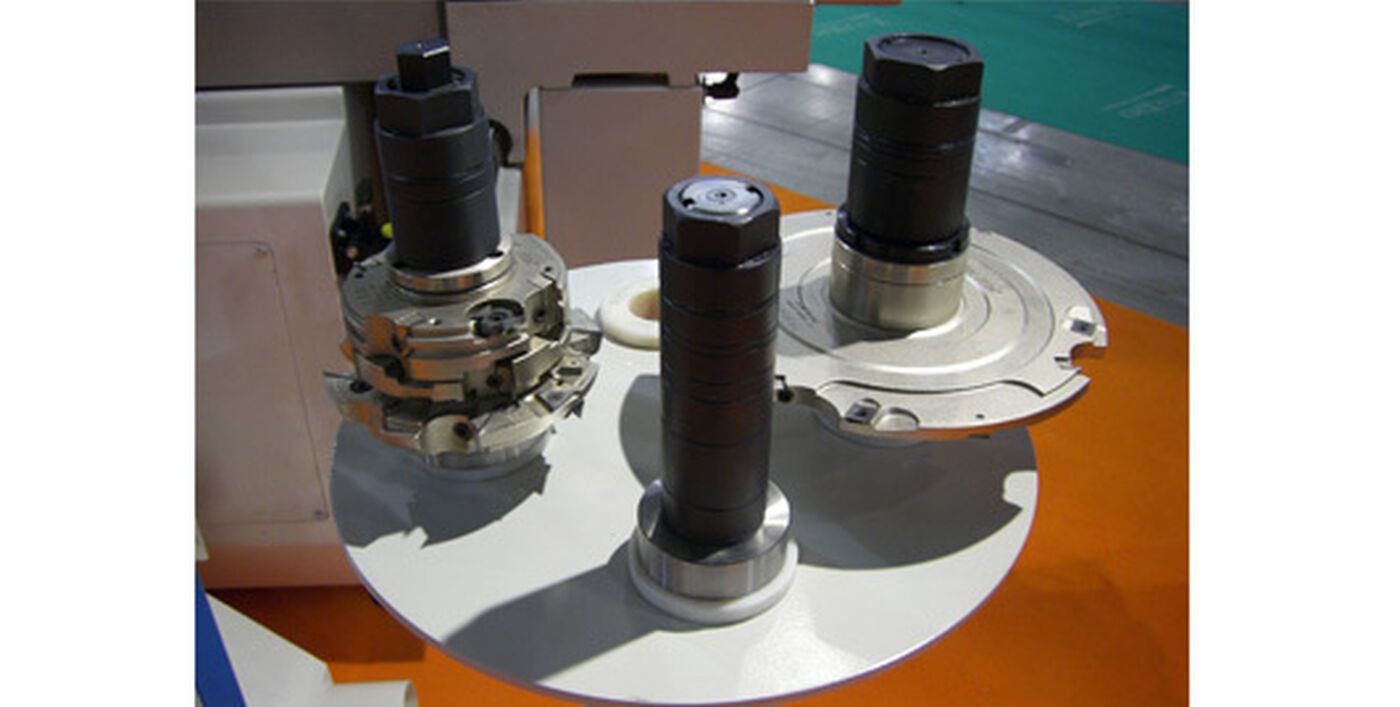

The FASTER has added rigidity of spindles with fixed shaft speed and versatility during the equipment of an interchangeable vertical spindle it could be placed on the left or the right depending on work requirements to do any type of profile. The movement for all spindles is by CNC, axes controlled and displayed are 6 with touch screen. The saving of time with the FASTER four sided spindle moulder during the change of equipment on the machine is 70%.

Casolin Faster Features

Tick bullet point Motorised lower pull roller
Tick bullet point Automatic table lubrication
Tick bullet point Centralized lubrication with manual pump
Tick bullet point Booth lights

Casolin Faster Specification

Width of finish piece with diameter 125 20-230 mm
Height of finish piece with dia.125 & dia.100 on universal shaft 7-120 mm
Feeding speed 5-25 m/min
Shaft diameter 40 mm
Working lenght of horizontal shafts 252 mm
Working length of vertical shafts 150 mm
Table length before planer 2500 mm
Feeding rollers diameter 140 mm
