Casolin Mega 230/4



new machine



Machine Overview

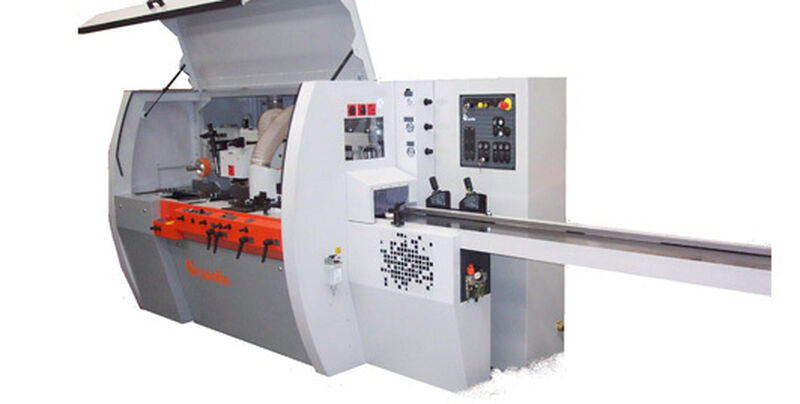

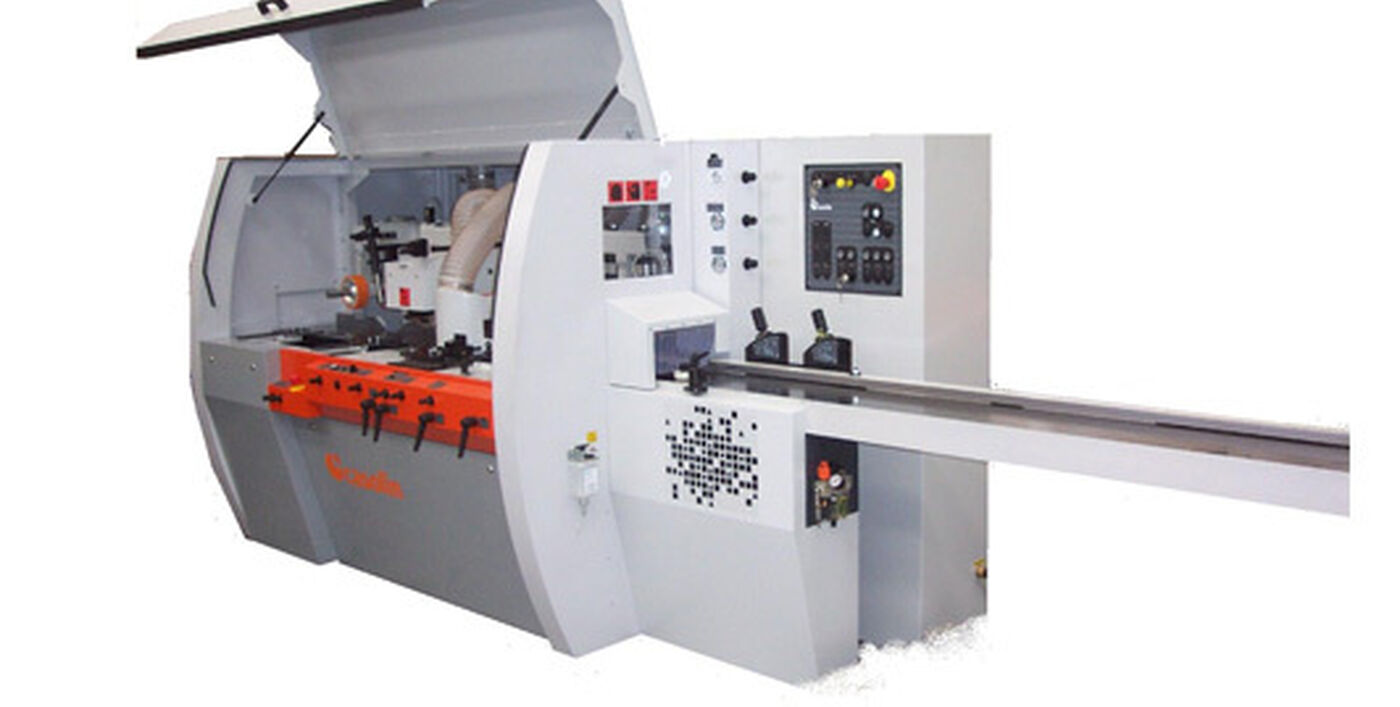

Introducing the Casolin Mega 230/4

Four sided spindle moulder.

Product Features

  • Four sided spindle moulder with 4 fixed shafts.
  • First horizontal shaft surface planer
  • Second vertical right shaft
  • Third vertical left shaft
  • Fourth horizontal over shaft.
  • Siko reader display for finished piece width and automatic updating to the tool changing.
  • Automatic pressure for feeding rollers.
  • Device with shaving tool.
  • Machine right to work squared parts.

Product Specification

Working width 15-230 mm
Working height 8-120 mm
Spindle feed 6000 g/min
Tool cutting circles of moulding spindles 125-200 mm
Spindle diameter 40 mm
Adjustment range of spindle (axial) 25 m
Adjustment range of straightening spindle 4 mm
Width of roller in the out-feed table 50 mm
Length of straigthening table 2500 mm
