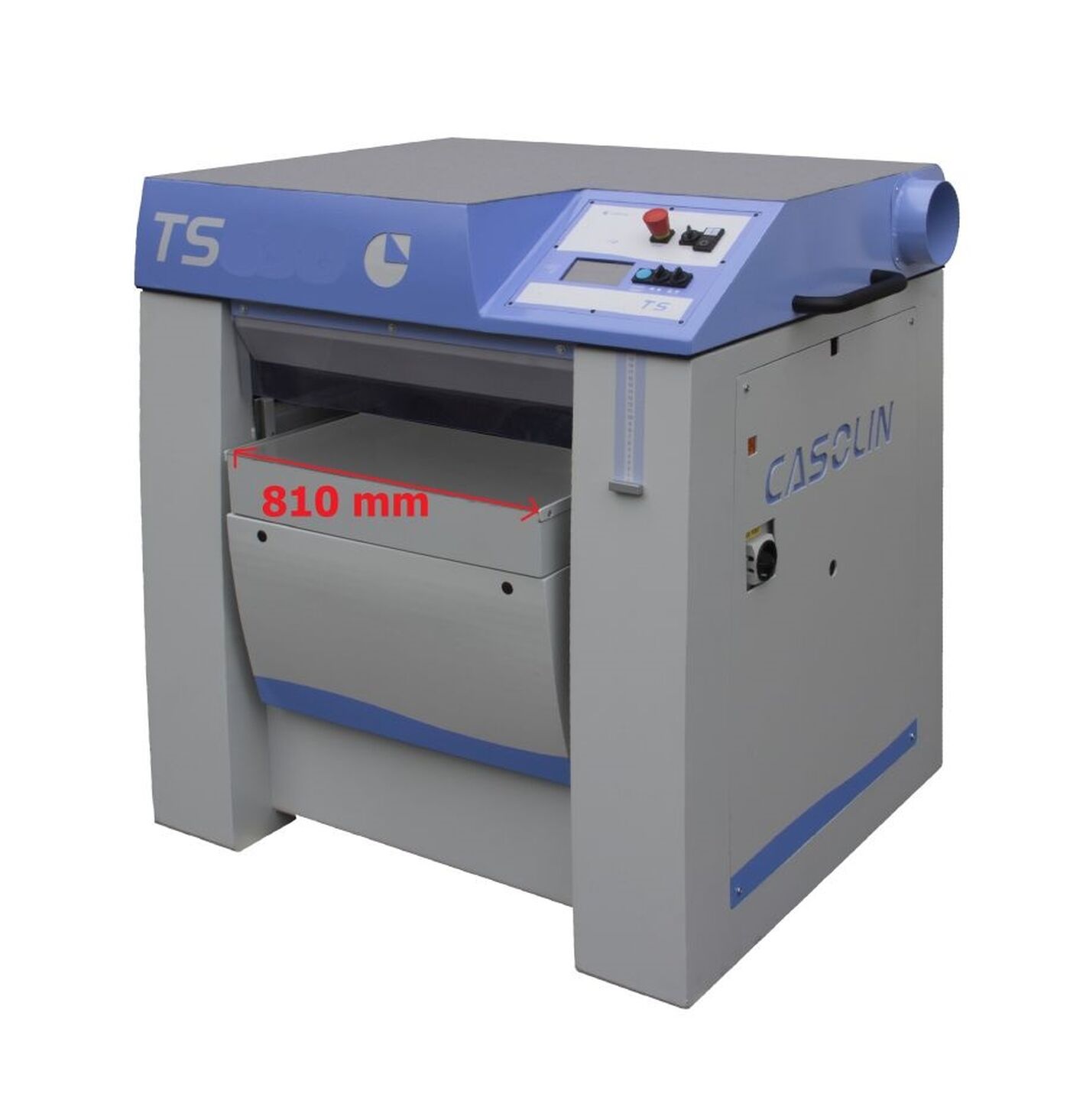

Casolin Thicknesser TS 810

The Casolin TS 810 thicknesser is a TOP STAR double cylinder planer based on the 3 main features of design, quality and technology.

Casolin Thicknesser TS 810 Features

Tick bullet point The modern trapezoidal shape guarantees noise free operation while the stiffness of the base frame eliminates all vibrations
Tick bullet point The new technological solutions adopted are the most innovative currently available for a double cylinder planer.
Tick bullet point The machine is equipped with a rocker inlet roller suspension and height adjustable torsion bar that always entrains each piece straight and allows several pieces with small differences in thickness to be entrained at the same time.
Tick bullet point The work is supported by 4 lifting screws positioned near the 4 corners to guarantee maximum stability and parallelism between the work table and teh shaft.

Casolin Thicknesser TS 810 Options

Tick bullet point Spiral shaft 630mm - Cutterblock with square inserts with 4 cutting edges interchangeable carbide. Duration of sharp up to 20 times more of a classic shaft
Tick bullet point Outfeed table extension with automatic tilting
Tick bullet point Folding top - Totally excludable
Tick bullet point Support roller incoming - pratic system

Casolin Thicknesser TS 810 Specification

Working width 810mm
Table dimension 810mm x 1060mm
Max working height 300mm
Min working height 3mm
Max thickness of removed material 10mm
Shaft diameter 120mm
Shaft speed rotation 5000rpm
Feed speed 5-8-12-19 m/min
Main motor From 5.5Kw - 15Kw
Net weight 1450kg
