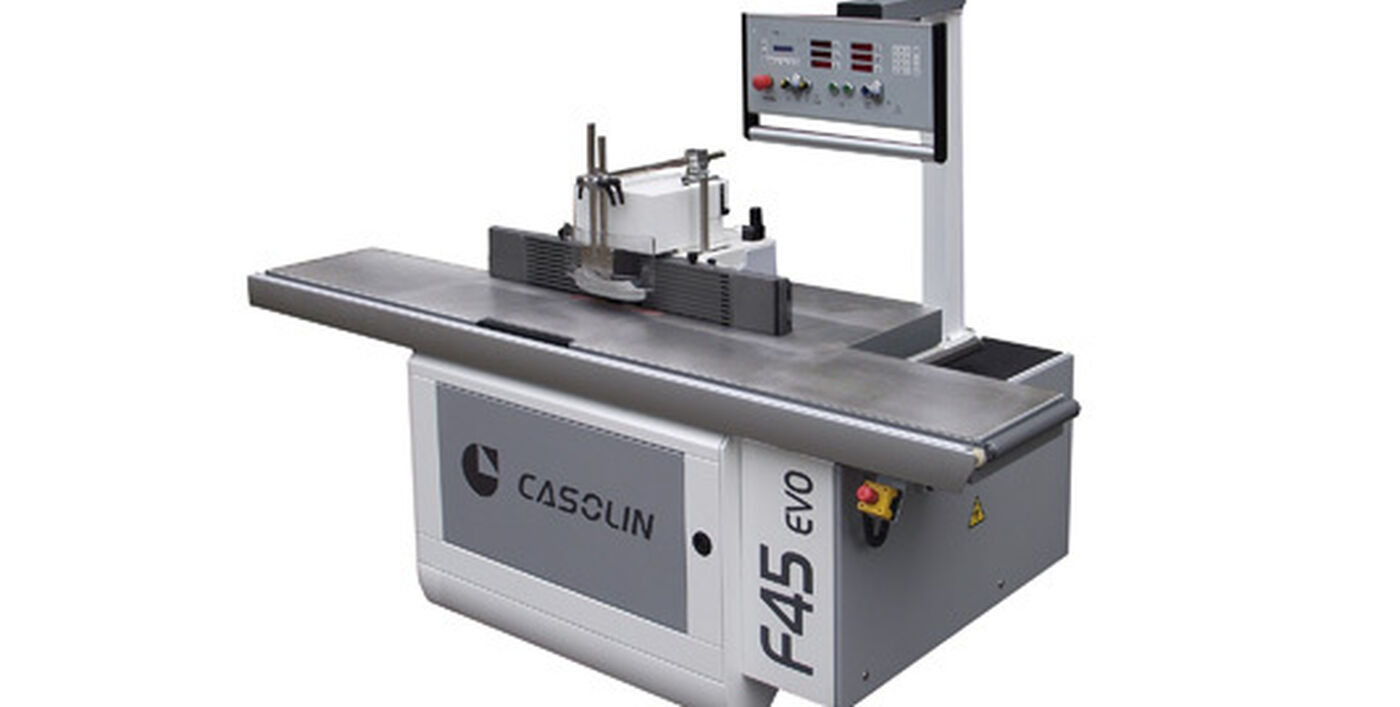

Casolin F45 EVO tilting spindle +-45 degrees

Back arow icon Previous Page


Tilting spindle moulder +-45 degrees.

Casolin F45 EVO tilting spindle +-45 degrees Features

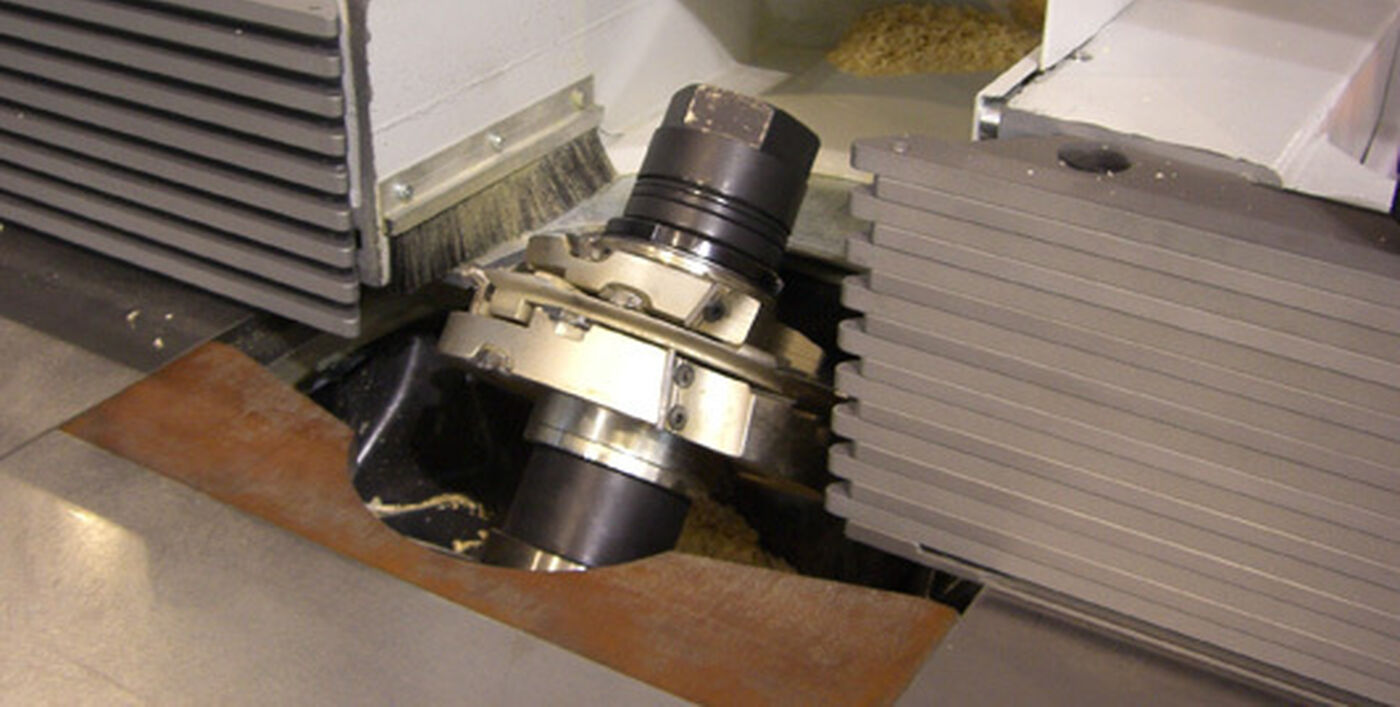

Tick bullet point Spindle moulder with tilting shaft -45 or +45 degrees

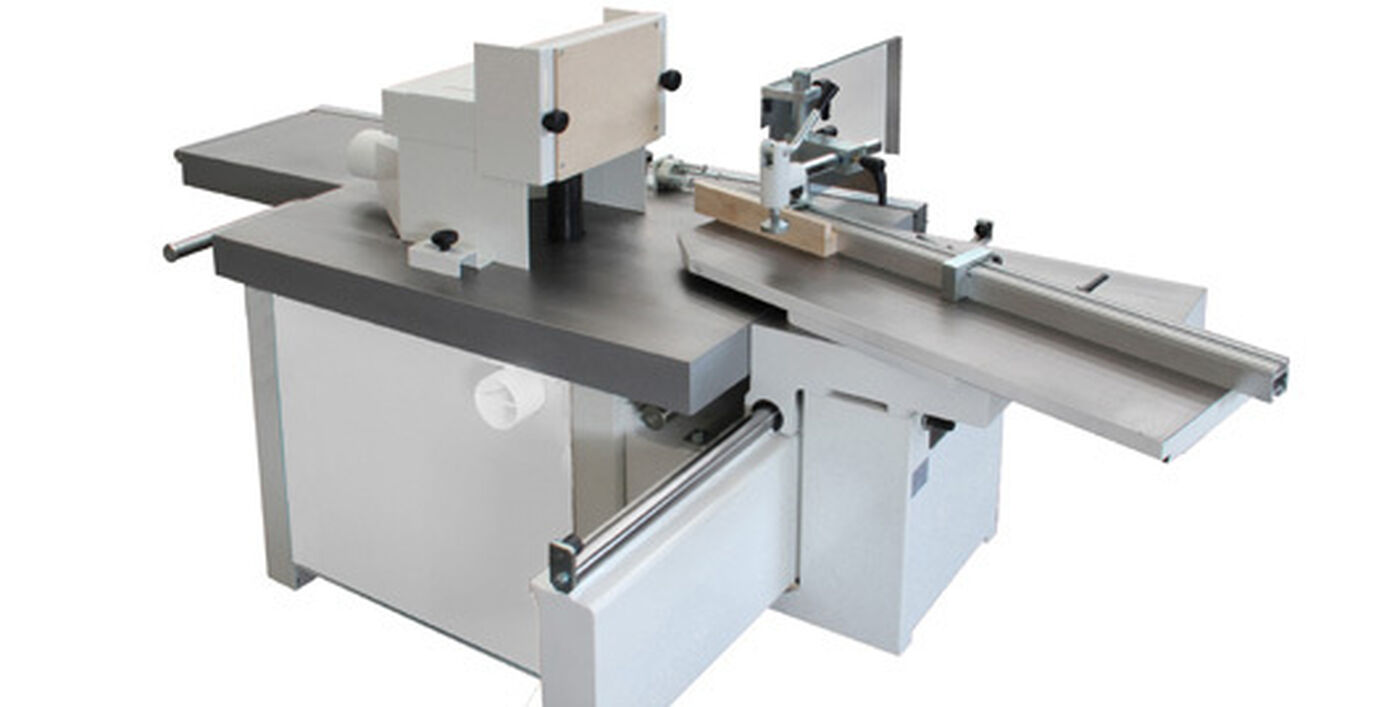

Tick bullet point Machine available in all versions with extension tables and tenoning carriage
Tick bullet point New regulation system from work table, with mobile table using handwheel
Tick bullet point Quick and practical alignment
Tick bullet point Guaranteed precision by the table's dovetail profile
Tick bullet point Motorized shaft lifting and tilting

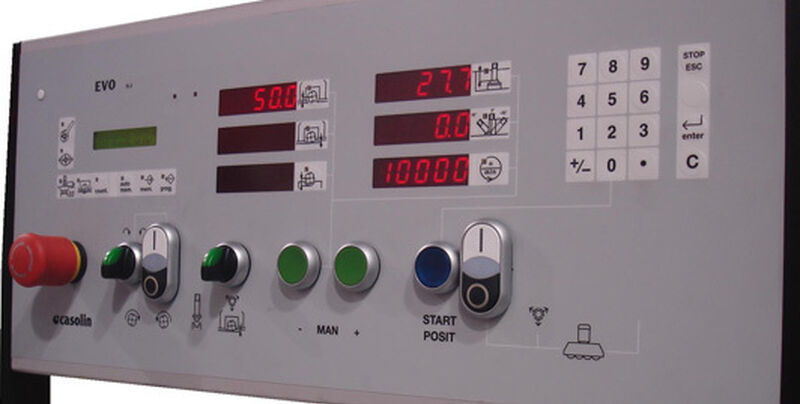

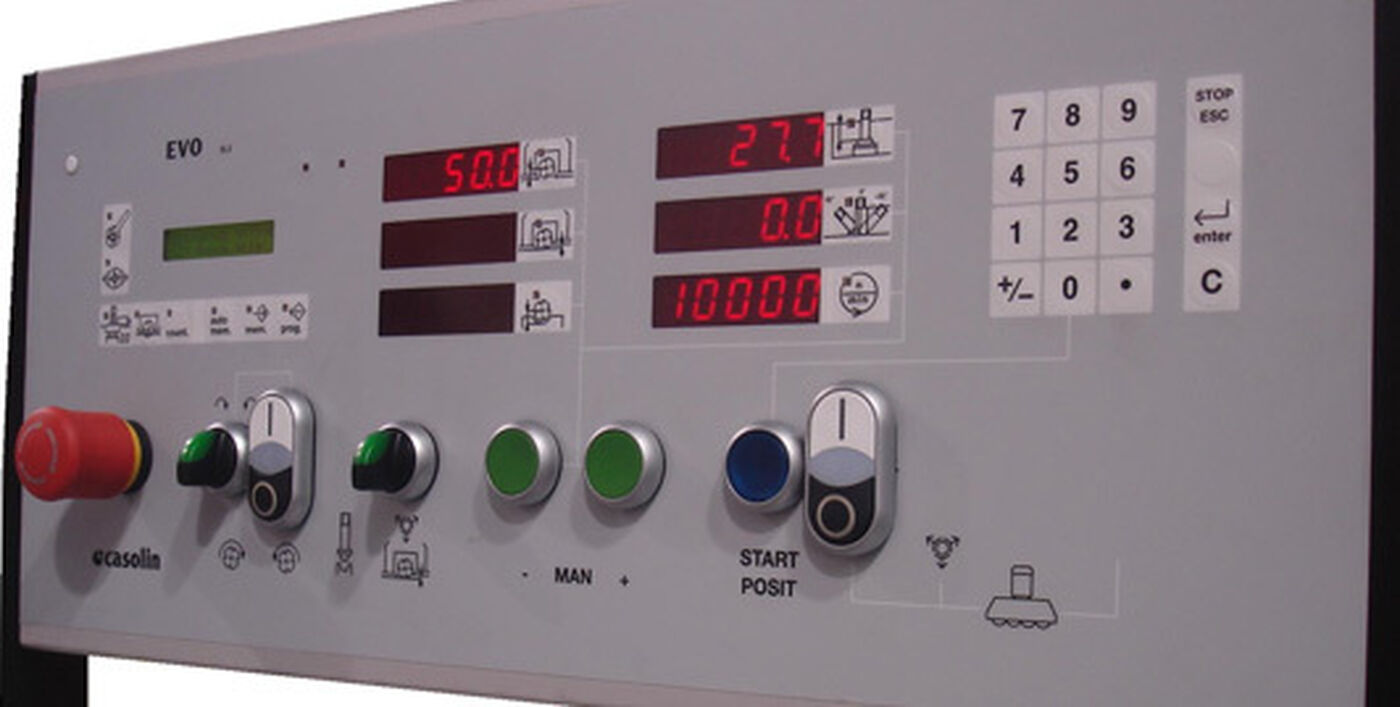

Tick bullet point Digital display for tilting and speed

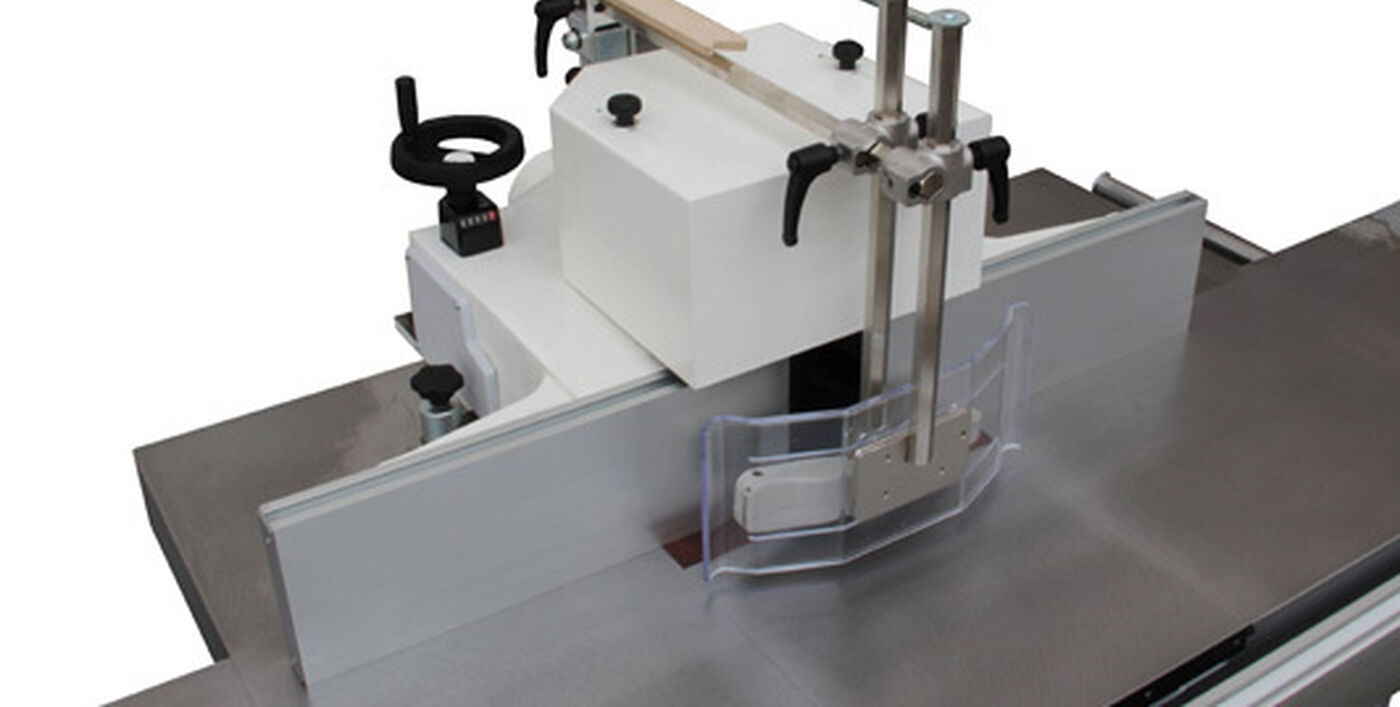

Tick bullet point Spindle cap with aluminium table standard length 360 mm
Tick bullet point Cap movement on prismatic guides
Tick bullet point High precision positioning
Tick bullet point Standard version with fixed shaft

Product Documentation

File icon
F45 EV Obro PDF file

Casolin F45 EVO tilting spindle +-45 degrees Specification

Shaft working length 140 or 180 mm
Shaft tilting -45 +45 degrees
Vertical stroke 155 mm
Power of standard motor 5.5 Kw
