Maggi Best 1250

new machine

Machine Overview

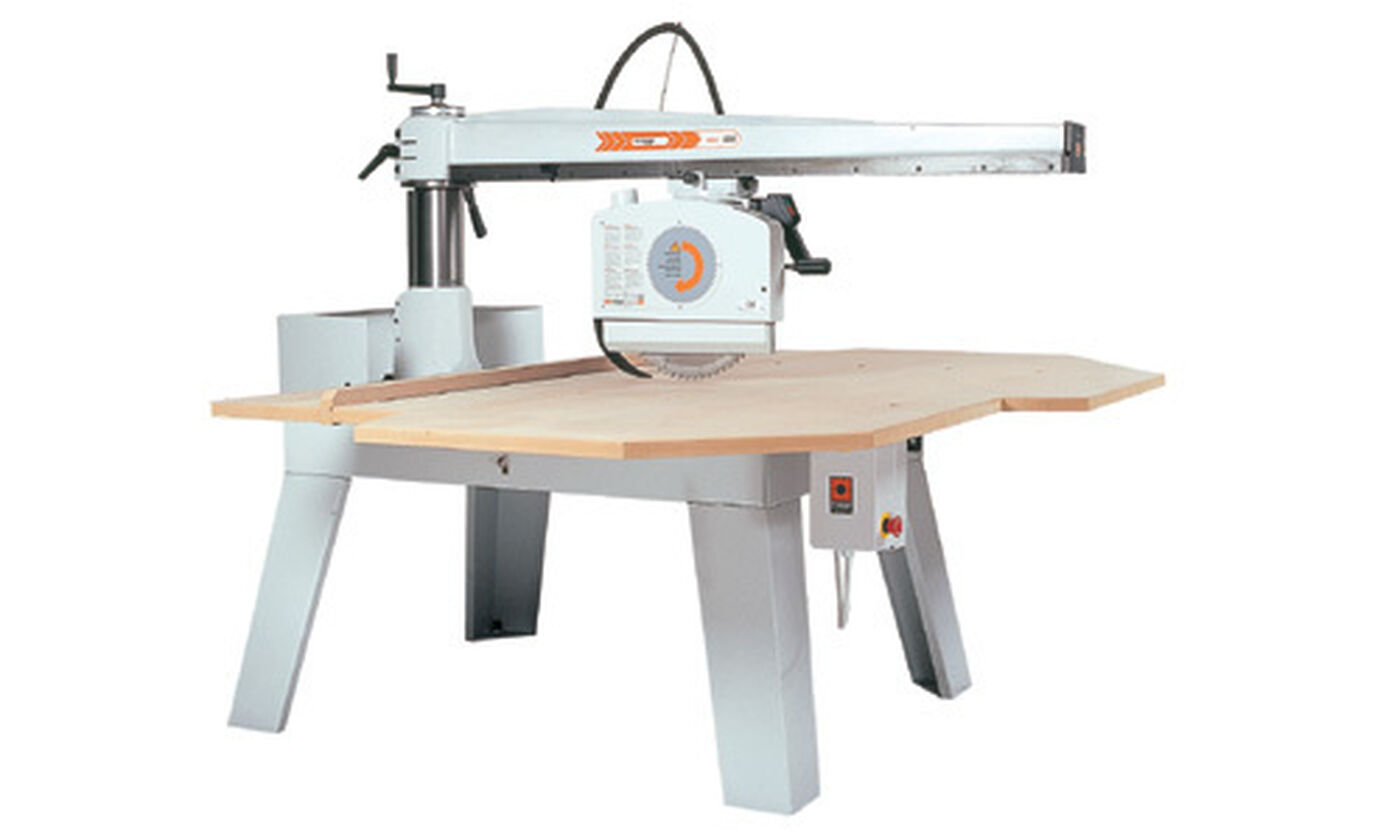

Introducing the Maggi Best 1250

The Best 1250 CE model is supplied with front lifting handle. Blade is not included. Feel free to contact R&J Machinery for more information on 01455 840224

Product Features

  • Automatic return spring
  • Self braking motor
  • Electrical equipment device and motor protection with emergency button
  • Protection case for complete blade covering 400mm
  • Sound insulated blade guard according to EC standards
  • Fitted to install dust collection system
  • Push sticks

Technical Details

Three phase Motor Power 4 (3) Hp (Kw)
Single phase Motor Power 3 (2.2) Hp (Kw)
Motor Speed 2800 r.p.m.
Blade Diameter Ø 350 mm
Blade Bore Diameter Ø 30 mm
Shaft dimension Ø 25x80 mm
Dust chute diameter on blade guard Ø 60 mm
Rear dust chute diameter Ø 100 mm
Table dimensions 1580x2400 mm
Maximum cut width Ø 350 20x1160 mm
Maximum cut width Ø 400 20x1155 mm
Length of cut h max Ø 350 100x1090 mm
Length of cut h max Ø 400 125x1060 mm
Maximum cut depth Ø 350 100 mm
Maximum cut depth Ø 400 125 mm
Max. height of blade from table Ø 350 110 mm
Max. height of blade from table Ø 400 85 mm
Max. cutting heght at 45° Ø 350 Max. 60 mm
Max. cutting heght at 45° Ø 400 80 mm
Max. cutting height arm 45° on right side 20x800 > 100x770 mm
Max. cutting height arm 45° on left side 20x610 > 100x580 mm
Net Weight 285 Kg
Gross Weight 347 Kg
Packing Dimensions 1800x1000x1000 mm

Product Specification

Three phase Motor Power7.5 HP 5.5 kW
Motor Speed2800 r.p.m.
Blade DiameterØ 550 mm
Blade Bore DiameterØ 30 mm
Shaft dimensionØ 30x80 mm
Dust chute diameter on blade guardØ 60 mm
Rear dust chute diameterØ 100 mm
Table dimensions1290x2000 mm
Max cut width20x850 mm
Width of cut h max. Ø 550195x690 mm
Maximum cut depth Ø 550195 mm
Max. height of blade from table Ø 55020 mm
Max. cutting heght at 45° Ø 550115 mm
Max. cutting height arm 45° on right side20x590 > 195x480 mm
Max. cutting height arm 45° on left side20x400 > 195x290 mm
Net Weight310 Kg
Gross Weight350 Kg
Packing Dimensions1500x1000x1000 mm
