Maggi Best 700S CE



new machine

Machine Overview

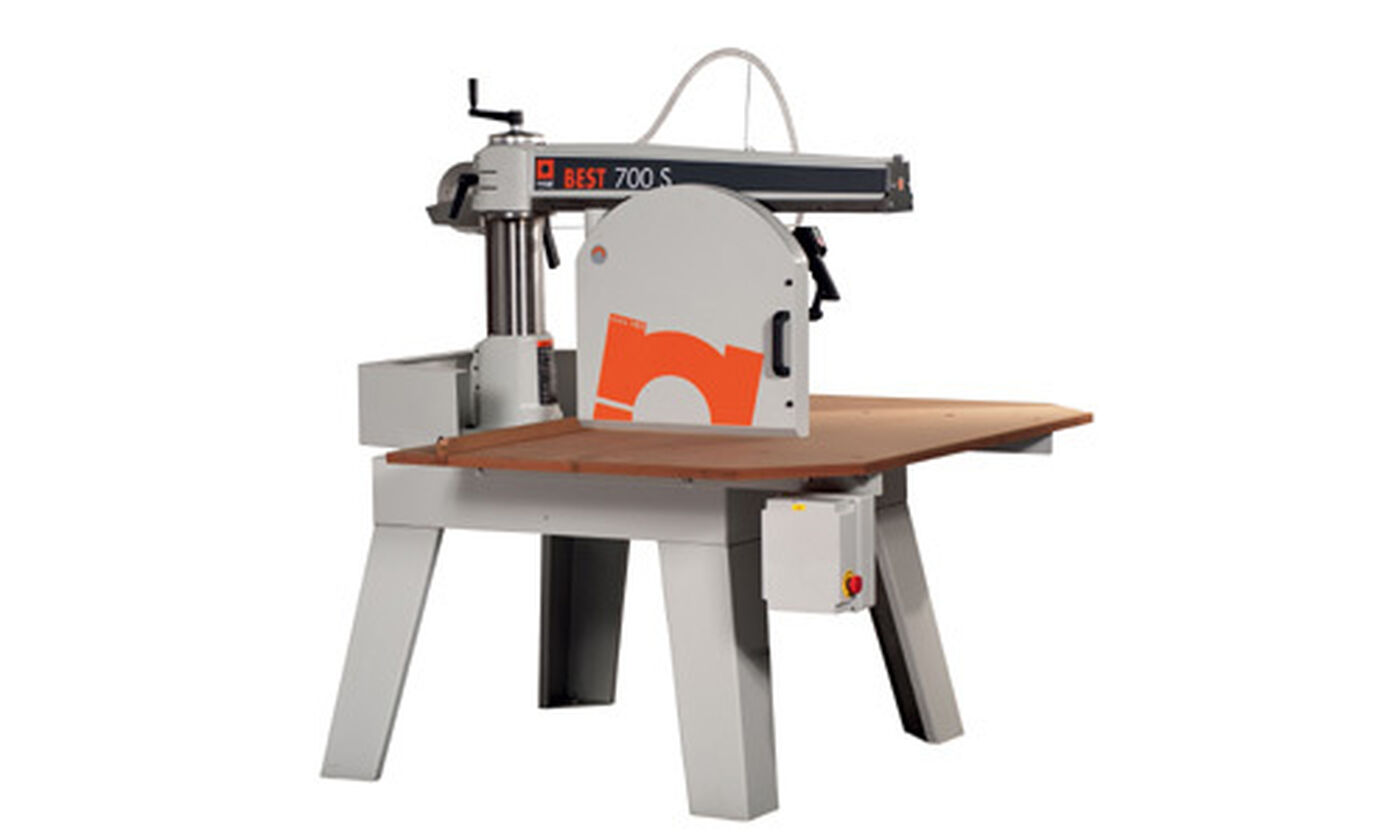

Introducing the Maggi Best 700S CE

For more information on the Maggi Best 700s CE please contact R&J Machinery on 01455 840224

Product Features

  • Automatic return spring
  • Self-breaking motor
  • Electrical equipment device and motor protection with emergency button
  • Protection case for blade covering 565 mm
  • sound-insulated blade guard according to EC standards
  • Working bench dimensions according to EC standards
  • Fitted to install dust collection system
  • Blade not included

Technical Details

Three phase Motor Power 7.5 (5.5) Hp (Kw)

Motor Speed 2800 r.p.m.

Blade Diameter Ø 550 mm

Blade Bore Diameter Ø 30 mm

Shaft dimension Ø 30x80 mm

Dust chute diameter on blade guard Ø 60 mm

Rear dust chute diameter Ø 100 mm

Table dimensions 1125x1700 mm

Max cut width 20x570 mm

Width of cut h max. Ø 550 195x690 mm

Maximum cut depth Ø 550 195 mm

Max. height of blade from table Ø 550 20 mm

Max. cutting heght at 45° Ø 550 115 mm

Max. cutting height arm 45° on right side 20x400 > 195x280 mm

Max. cutting height arm 45° on left side 20x210 > 195x90 mm

Net Weight 270 Kg

Gross Weight 330 Kg

Overall dimensions 1500x1000x1000 mm

Product Specification

Three phase Motor Power 4 (3) Hp (Kw)
Single phase Motor Power 3 (2.2) Hp (Kw)
Motor Speed 2800 r.p.m.
Blade Diameter Ø 350 mm
Blade Bore Diameter Ø 30 mm
Shaft dimension Ø 25x80 mm
Dust chute diameter on blade guard Ø 60 mm
Rear dust chute diameter Ø 100 mm
Table dimensions 1580x2400 mm
Maximum cut width Ø 350 20x1160 mm
Maximum cut width Ø 400 20x1155 mm
Length of cut h max Ø 350 100x1090 mm
Length of cut h max Ø 400 125x1060 mm
Maximum cut depth Ø 350 100 mm
Maximum cut depth Ø 400 125 mm
Max. height of blade from table Ø 350 110 mm
Max. height of blade from table Ø 400 85 mm
Max. cutting heght at 45° Ø 350 Max. 60 mm
Max. cutting heght at 45° Ø 400 80 mm
Max. cutting height arm 45° on right side 20x800 > 100x770 mm
Max. cutting height arm 45° on left side 20x610 > 100x580 mm
Net Weight 285 Kg
Gross Weight 347 Kg
Packing Dimensions 1800x1000x1000 mm
