Maggi Best 960



new machine

Machine Overview

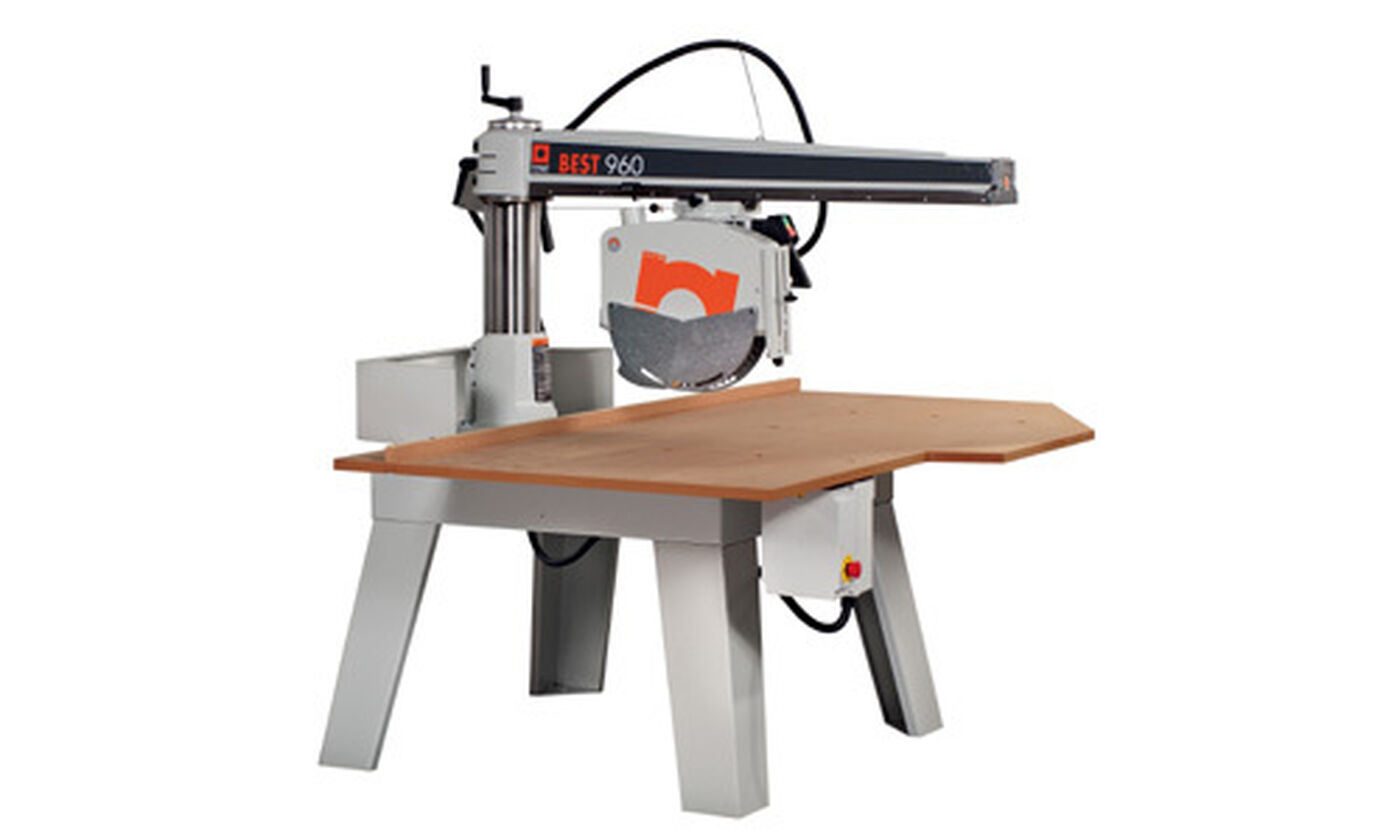

Introducing the Maggi Best 960

For more information on the Maggi Best 960 please contact R&J Machinery on 01455 840224

Product Features

  • CE
  • Predisposed for air suction
  • Self braking motor with overload protection
  • Complete with blade guard with anti noise system
  • Arm and base made of cast iron
  • 8 carriage bearings

Technical Details

Three phase Motor Power 4 HP 3 kW
Single phase Motor Power 3 HP 2.2 kW
Motor Speed 2800 r.p.m.
Diameter of blade Ø 350 mm
Blade Bore Diameter Ø 30 mm
Shaft dimension Ø 25x80 mm
Dust chute diameter on blade guard Ø 60 mm
Rear dust chute diameter Ø 100 mm
Table dimensions 1290x2000 mm
Maximum cut width Ø 350 20x870 mm
Maximum cut width Ø 400 20x865 mm
Length of cut h max Ø 350 100x800 mm
Length of cut h max Ø 400 125x770 mm
Maximum cut depth Ø 350 100 mm
Maximum cut depth Ø 400 125 mm
Max. height of blade from table Ø 350 110 mm
Max. height of blade from table Ø 400 85 mm
Max. cutting heght at 45° Ø 350 Max. 60 mm
Max. cutting heght at 45° Ø 400 80 mm
Max. cutting height arm 45° on right side 20x615 > 100x565 mm
Max. cutting height arm 45° on left side 20x425 > 100x375 mm
Net Weight 269 Kg
Gross Weight 331 Kg
Packing Dimensions 1500x1000x550 mm

Product Specification

Three phase Motor Power 4 HP 3 kW
Single phase Motor Power 3 HP 2.2 kW
Motor Speed 2800 r.p.m.
Diameter of blade Ø 350 mm
Blade Bore Diameter Ø 30 mm
Shaft dimension Ø 25x80 mm
Dust chute diameter on blade guard Ø 60 mm
Rear dust chute diameter Ø 100 mm
Table dimensions 1290x2000 mm
Maximum cut width Ø 350 20x870 mm
Maximum cut width Ø 400 20x865 mm
Length of cut h max Ø 350 100x800 mm
Length of cut h max Ø 400 125x770 mm
Maximum cut depth Ø 350 100 mm
Maximum cut depth Ø 400 125 mm
Max. height of blade from table Ø 350 110 mm
Max. height of blade from table Ø 400 85 mm
Max. cutting heght at 45° Ø 350 Max. 60 mm
Max. cutting heght at 45° Ø 400 80 mm
Max. cutting height arm 45° on right side 20x615 > 100x565 mm
Max. cutting height arm 45° on left side 20x425 > 100x375 mm
Net Weight 269 Kg
Gross Weight 331 Kg
Packing Dimensions 1500x1000x550 mm
