Maggi Best 960S



new machine

Machine Overview

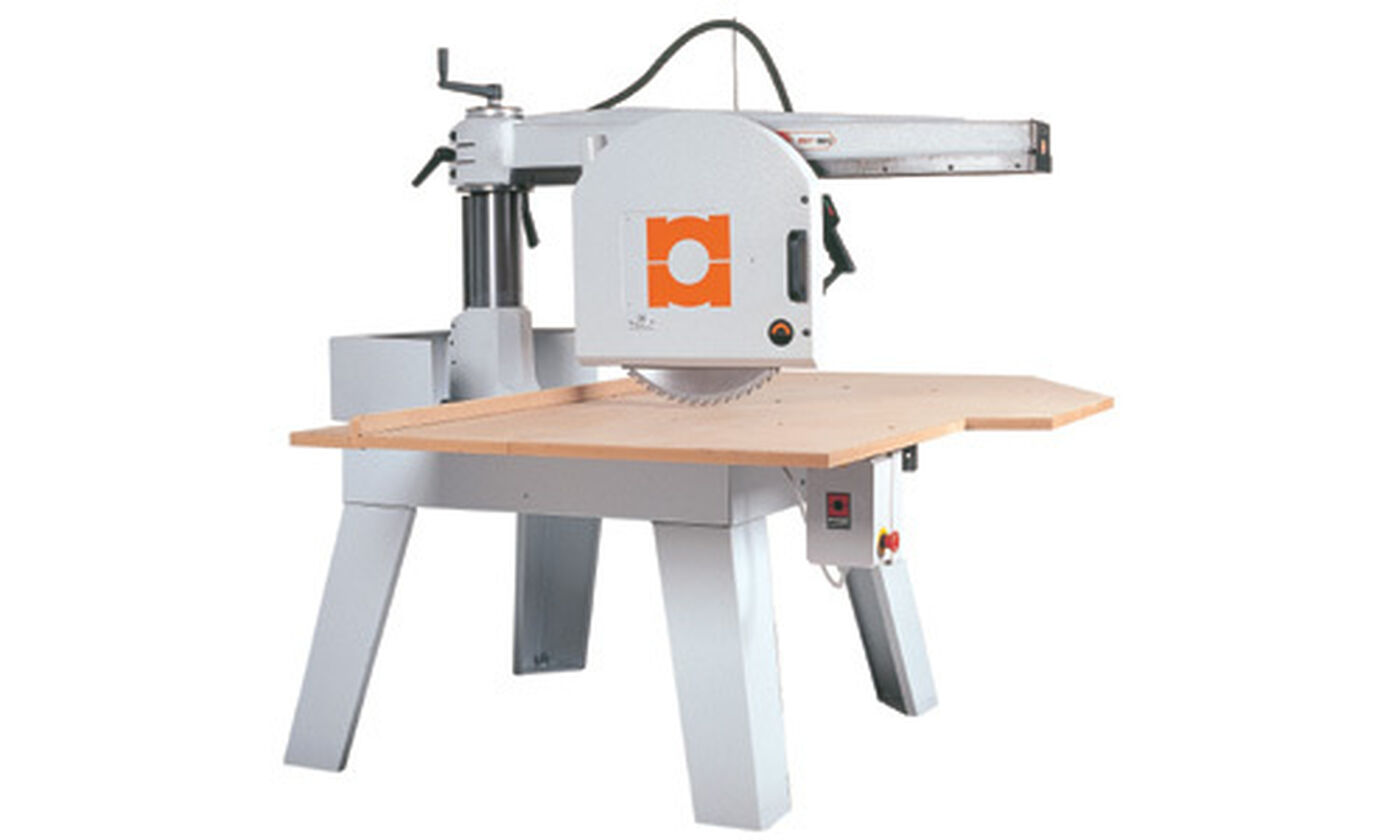

Introducing the Maggi Best 960S

Maggi Best 960S CE Radial arm saw. This model is supplied with a front lifting handle. Blade not included.

Product Features

  • Automatic return spring
  • Self - braking motor
  • Electrical equipment device and motor protection with emergency button
  • Protection case for complete blade covering diameter 565 mm
  • Sound insulated blade guard according to EC standards
  • Working bench dimensions according to EC standards
  • Fitted to install dust collection system

Technical Details

Three phase Motor Power 7.5 HP 5.5 kW
Motor Speed 2800 r.p.m.
Blade Diameter Ø 550 mm
Blade Bore Diameter Ø 30 mm
Shaft dimension Ø 30x80 mm
Dust chute diameter on blade guard Ø 60 mm
Rear dust chute diameter Ø 100 mm
Table dimensions 1290x2000 mm
Max cut width 20x850 mm
Width of cut h max. Ø 550 195x690 mm
Maximum cut depth Ø 550 195 mm
Max. height of blade from table Ø 550 20 mm
Max. cutting heght at 45° Ø 550 115 mm
Max. cutting height arm 45° on right side 20x590 > 195x480 mm
Max. cutting height arm 45° on left side 20x400 > 195x290 mm
Net Weight 310 Kg
Gross Weight 350 Kg
Packing Dimensions 1500x1000x1000 mm

Product Specification

Three phase Motor Power 7.5 HP 5.5 kW
Motor Speed 2800 r.p.m.
Blade Diameter Ø 550 mm
Blade Bore Diameter Ø 30 mm
Shaft dimension Ø 30x80 mm
Dust chute diameter on blade guard Ø 60 mm
Rear dust chute diameter Ø 100 mm
Table dimensions 1290x2000 mm
Maximum cut width 20x850 mm
Width of cut h max. Ø 550 195x690 mm
Maximum cut depth Ø 550 195 mm
Max. height of blade from table Ø 550 20 mm
Max. cutting height at 45° Ø 550 115 mm
Max. cutting height arm 45° on right side 20x590 > 195x480 mm
Max. cutting height arm 45° on left side 20x400 > 195x290 mm
Net Weight 310 Kg
Gross Weight 350 Kg
Packing Dimensions 1500x1000x1000 mm
