Maggi Big 800 CE



new machine

Machine Overview

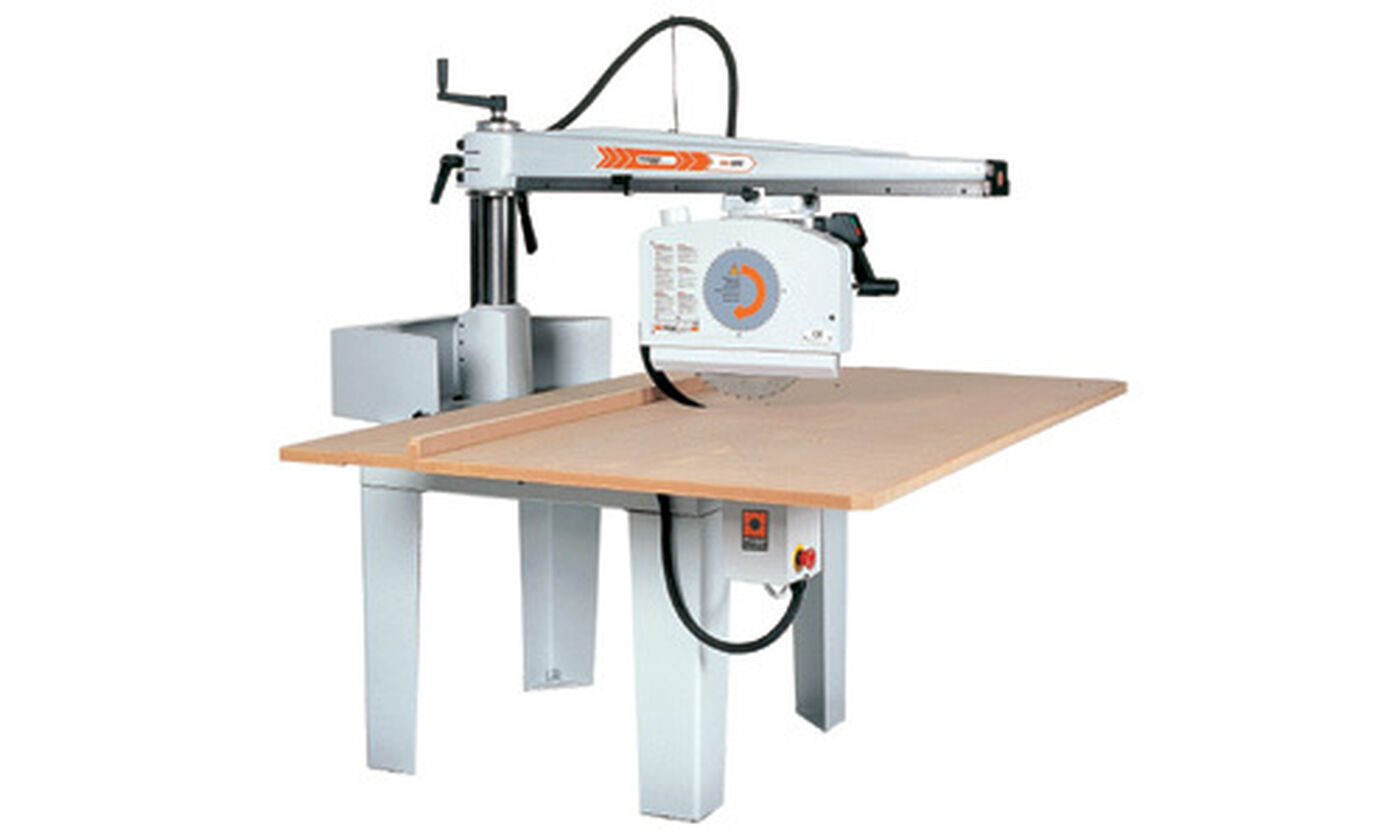

Introducing the Maggi Big 800 CE

For more information on the Maggi Big 800 please contact R&J Machinery on 01455 840224

Product Features

  • CE
  • Predisposed for air suction
  • Self braking motor with overload protection
  • Complete with blade guard with anti noise system
  • Arm and base made of cast iron
  • 8 carriage bearings

Technical Details

Three phase Motor Power 4 HP 3 kW
Single phase Motor Power 3 HP 2.2 kW
Motor Speed 2800 r.p.m.
Blade Diameter Ø 350 mm
Blade Bore Diameter Ø 30 mm
Shaft dimension Ø 25x80 mm
Dust chute diameter on blade guard Ø 60 mm
Rear dust chute diameter Ø 100 mm
Table dimensions 1145x1860 mm
Maximum cut width Ø 350 20x710 mm
Maximum cut width Ø 400 20x705 mm
Length of cut h max Ø 350 100x640 mm
Length of cut h max Ø 400 125x610 mm
Maximum cut depth Ø 350 100 mm
Maximum cut depth Ø 400 125 mm
Max. height of blade from table Ø 350 70 mm
Max. height of blade from table Ø 400 45 mm
Max. cutting heght at 45° Ø 350 Max. 60 mm
Max. cutting heght at 45° Ø 400 80 mm
Max. cutting height arm 45° on right side 20x500 > 100x450 mm
Max. cutting height arm 45° on left side 20x310 > 100x260 mm
Net Weight 198 Kg
Gross Weight 246 Kg
Packing Dimensions 1400x850x530 mm

Product Specification

Three phase Motor Power 4 HP 3 kW
Single phase Motor Power 3 HP 2.2 kW
Motor Speed 2800 r.p.m.
Blade Diameter Ø 350 mm
Blade Bore Diameter Ø 30 mm
Shaft dimension Ø 25x80 mm
Dust chute diameter on blade guard Ø 60 mm
Rear dust chute diameter Ø 100 mm
Table dimensions 1145x1860 mm
Maximum cut width Ø 350 20x710 mm
Maximum cut width Ø 400 20x705 mm
Length of cut h max Ø 350 100x640 mm
Length of cut h max Ø 400 125x610 mm
Maximum cut depth Ø 350 100 mm
Maximum cut depth Ø 400 125 mm
Max. height of blade from table Ø 350 70 mm
Max. height of blade from table Ø 400 45 mm
Max. cutting heght at 45° Ø 350 Max. 60 mm
Max. cutting heght at 45° Ø 400 80 mm
Max. cutting height arm 45° on right side 20x500 > 100x450 mm
Max. cutting height arm 45° on left side 20x310 > 100x260 mm
Net Weight 198 Kg
Gross Weight 246 Kg
Packing Dimensions 1400x850x530 mm
