Maggi Boring System 29

Back arow icon Previous Page


About the Maggi Boring System 29

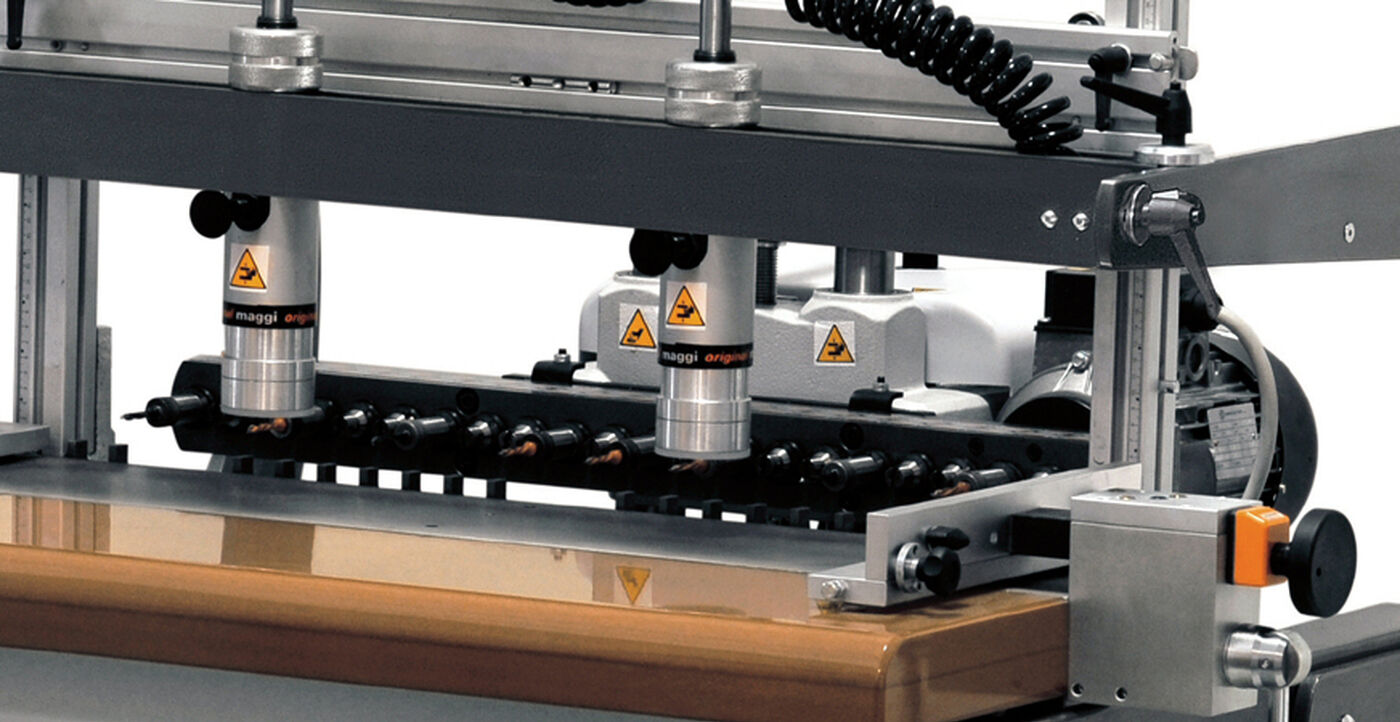

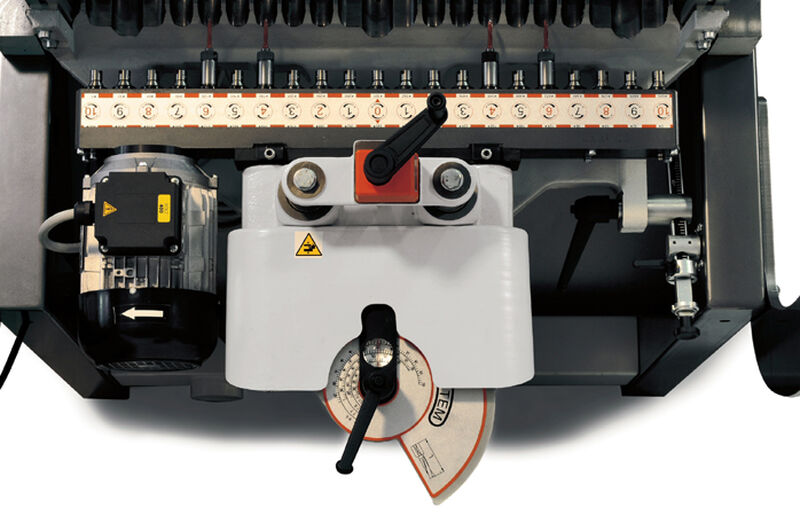

Single headed boring machine. Boring head characterised by an innovative tool-locking system, that allows quick fastening of the drills directly on spindles, without need for chucks, and ensures

the highest stability of the drills. Pneumatic head rotation with lock and stop reference from 0° to 90° at any angle.

Adjustable cast iron fences on a metric scale thanks to a magnify glass and nonius. Feel

free to contact R&J Machinery for more information.

Maggi Boring System 29 Features

Tick bullet point Quick changes chucks
Tick bullet point Aluminium made boring head

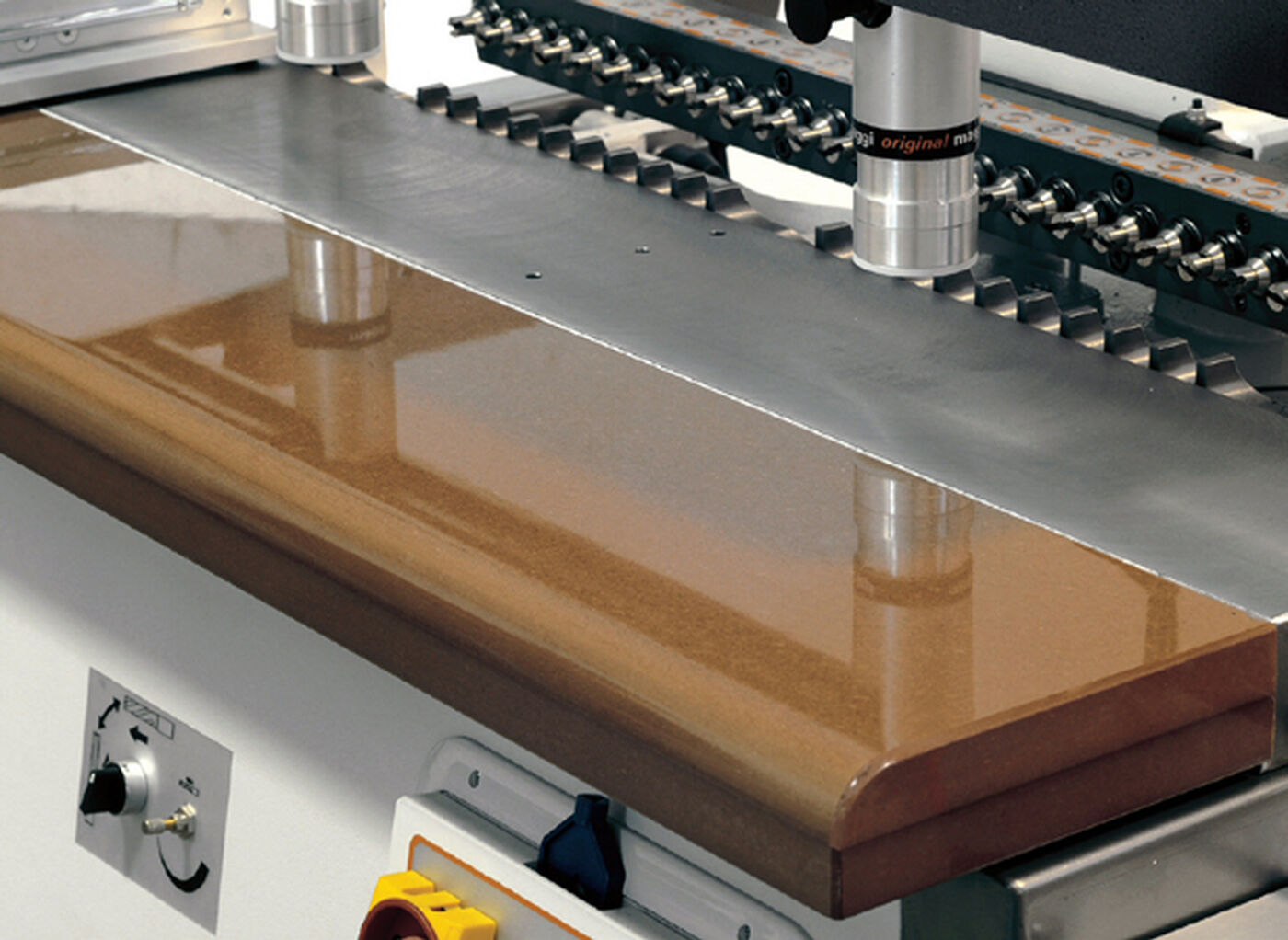

Tick bullet point MDF and cast iron made working table

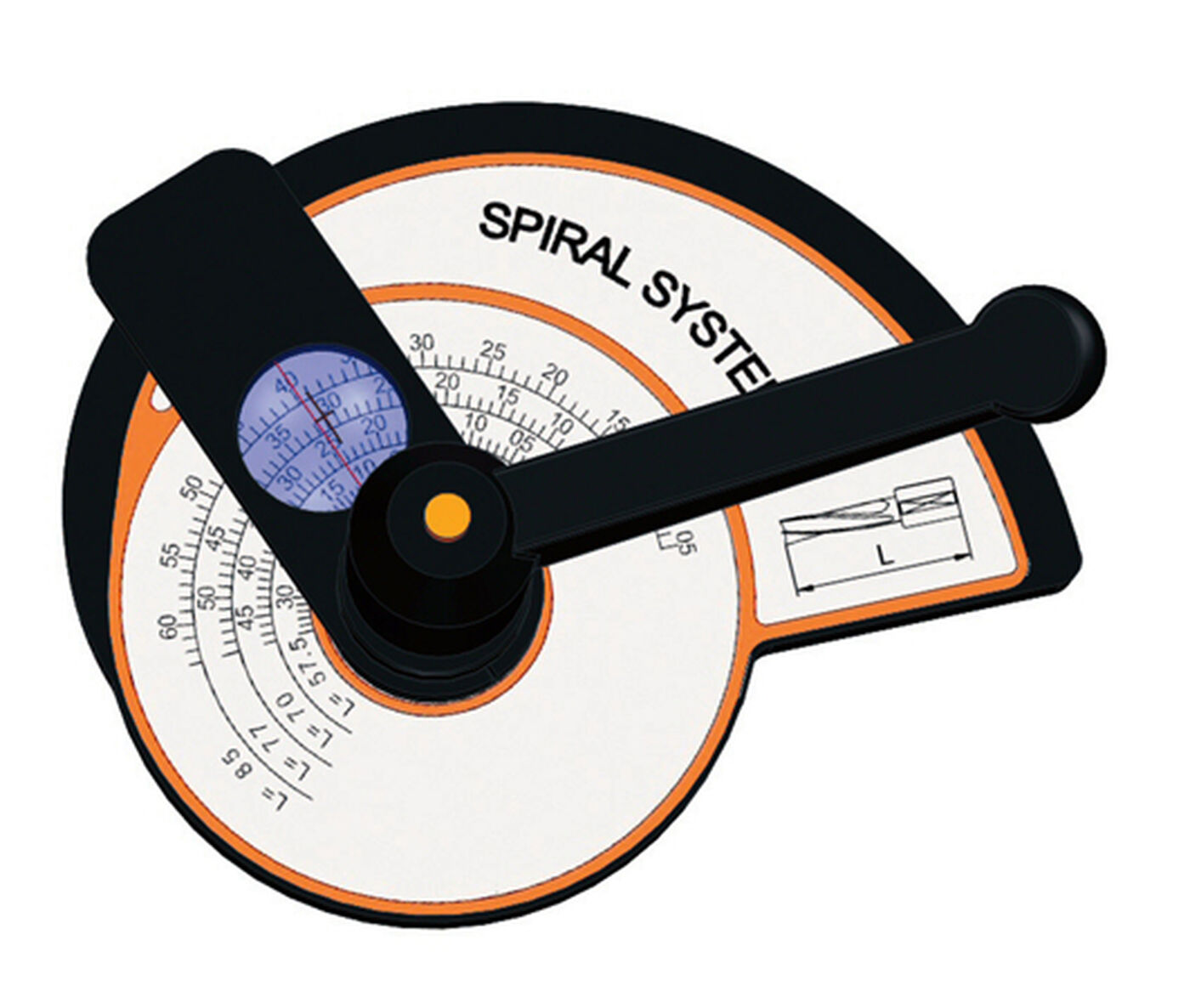

Tick bullet point Patented spiral system device for quick boring depth adjustment

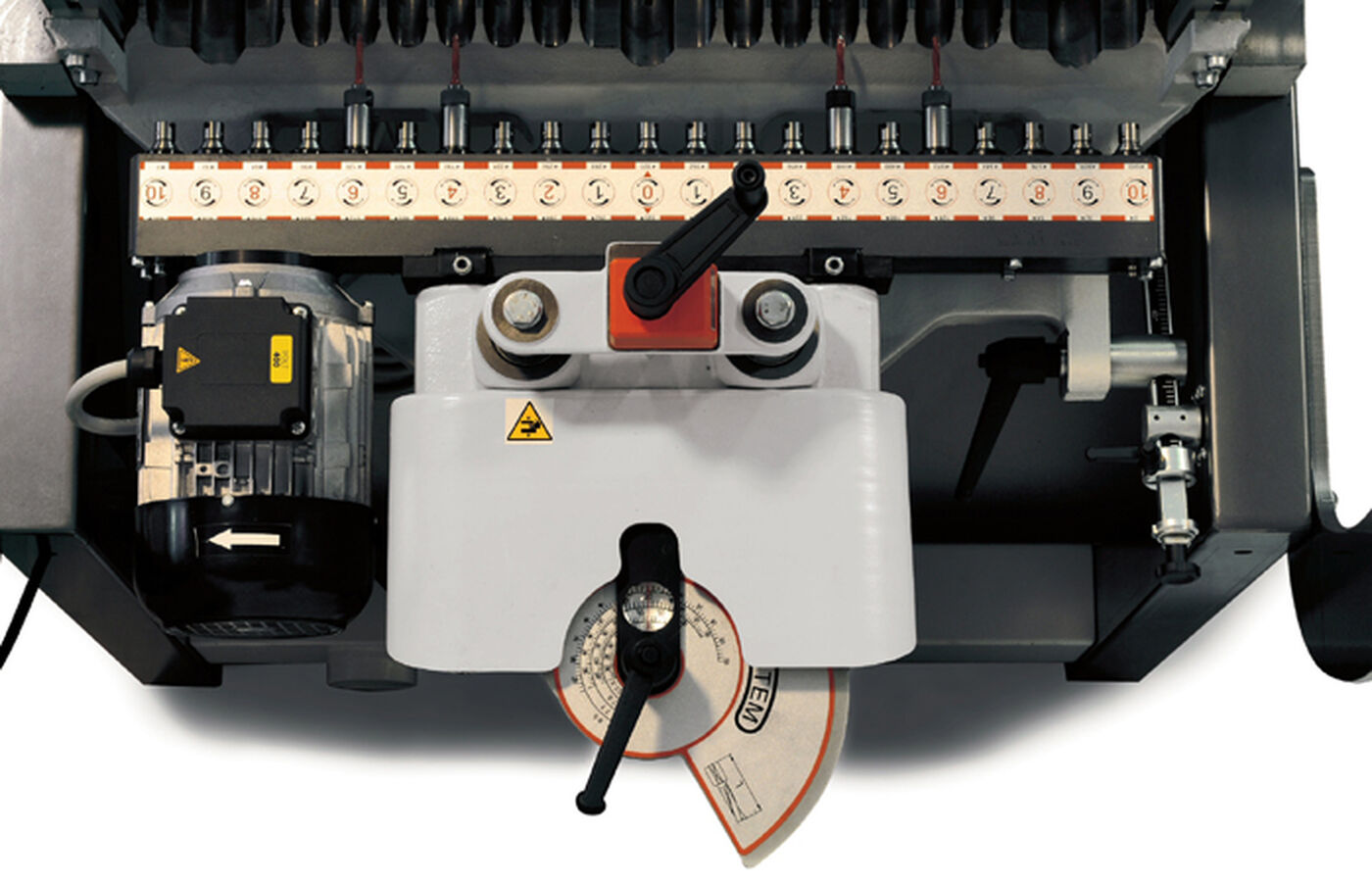

Tick bullet point Pneumatic head rotation with lock and stop reference from 0 to 90 degree at any angle
Tick bullet point Adjustable fences on the table with digital counter for decimal shifting adjustment
Tick bullet point Digital counter for regulation of drills height from the table
Tick bullet point Rear fence max stroke 300 mm
Tick bullet point Fixed stop at 37 mm for hinges
Tick bullet point Machine manufactured according to EC standards

Maggi Boring System 29 Specification

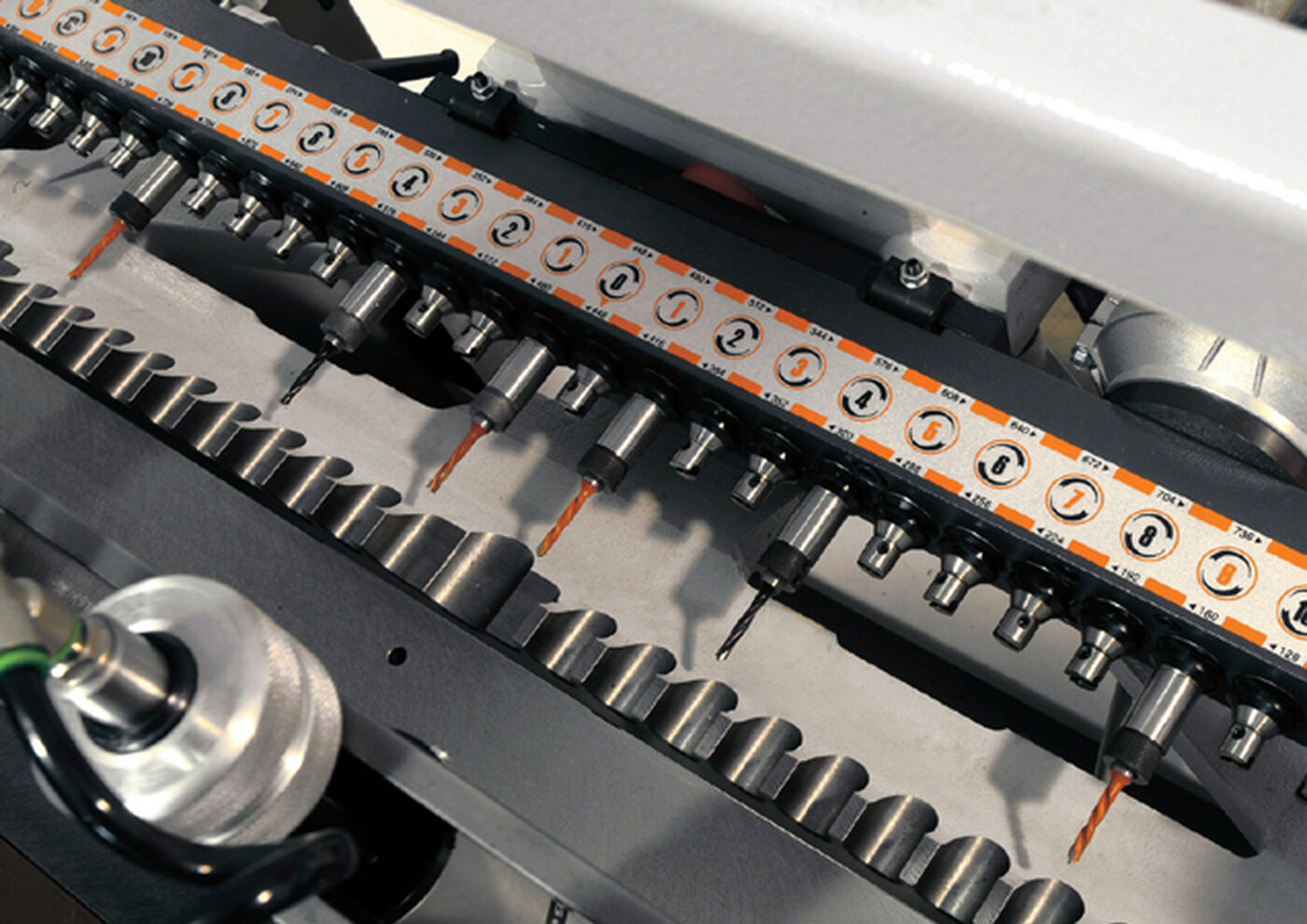

N° spindles (15 left red/14 right black) 29
Distance Between Each Splindel 32 mm
Distance Between First and Last Splindel 896 mm
Max. Drilling Depth 65 mm
INSIDE DIAMETER OF QUICK CHANGE BUSHES 10 mm
Max dimensions of working piece 1142x3000 mm
Height of working table 850 mm

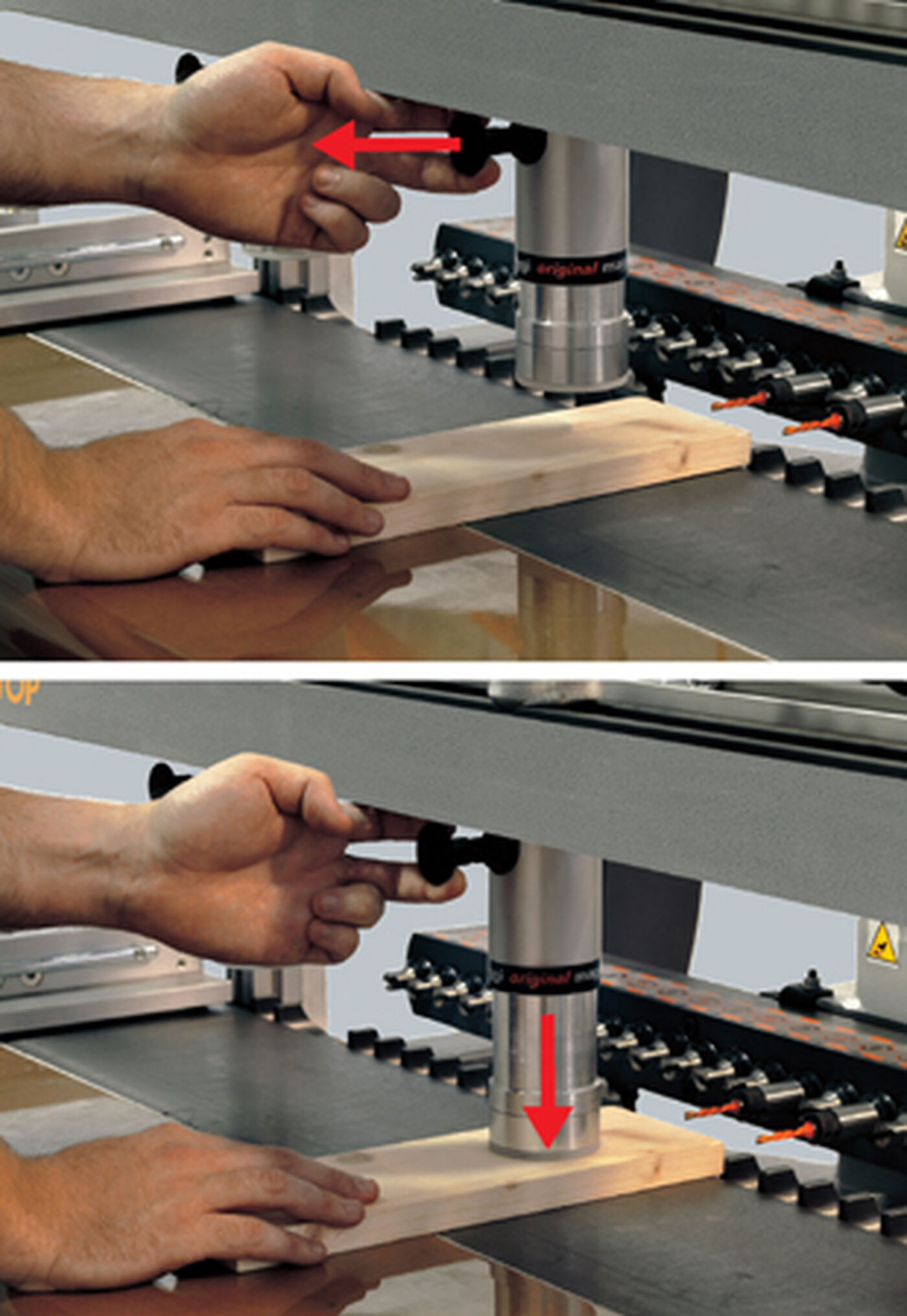

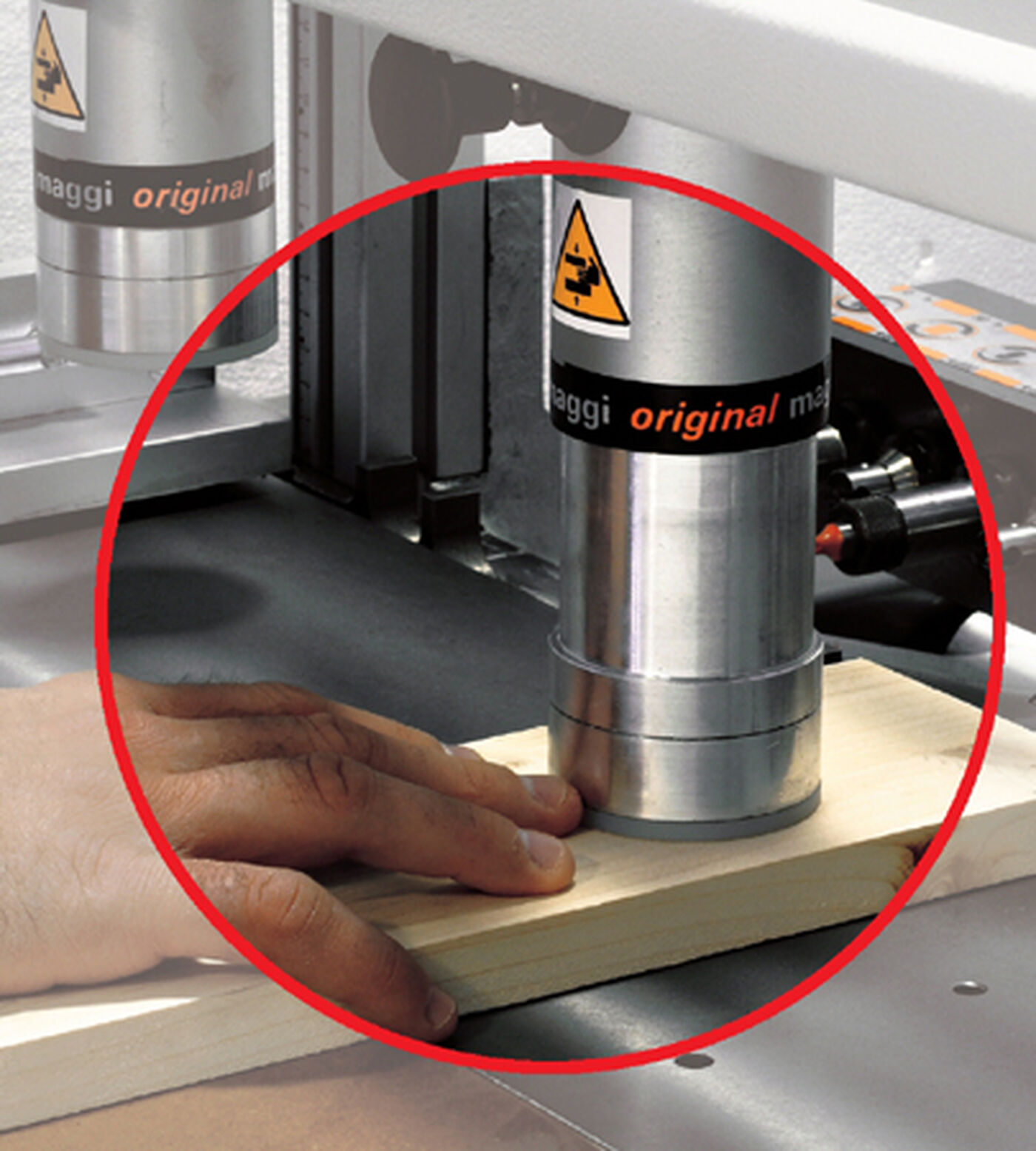

N° clamps 2
N° motors 1
Motor Power 2(1.5) HP (KW)
Noise level (max allowed 90 DB) 76.1 db
Working air pressure 6-7 bar
Standard air pressure consumption 12 L/ciclo
Motor Speed 2800 rpm
Weight 380 Kg
Dimensions of working table 1200x410 mm
