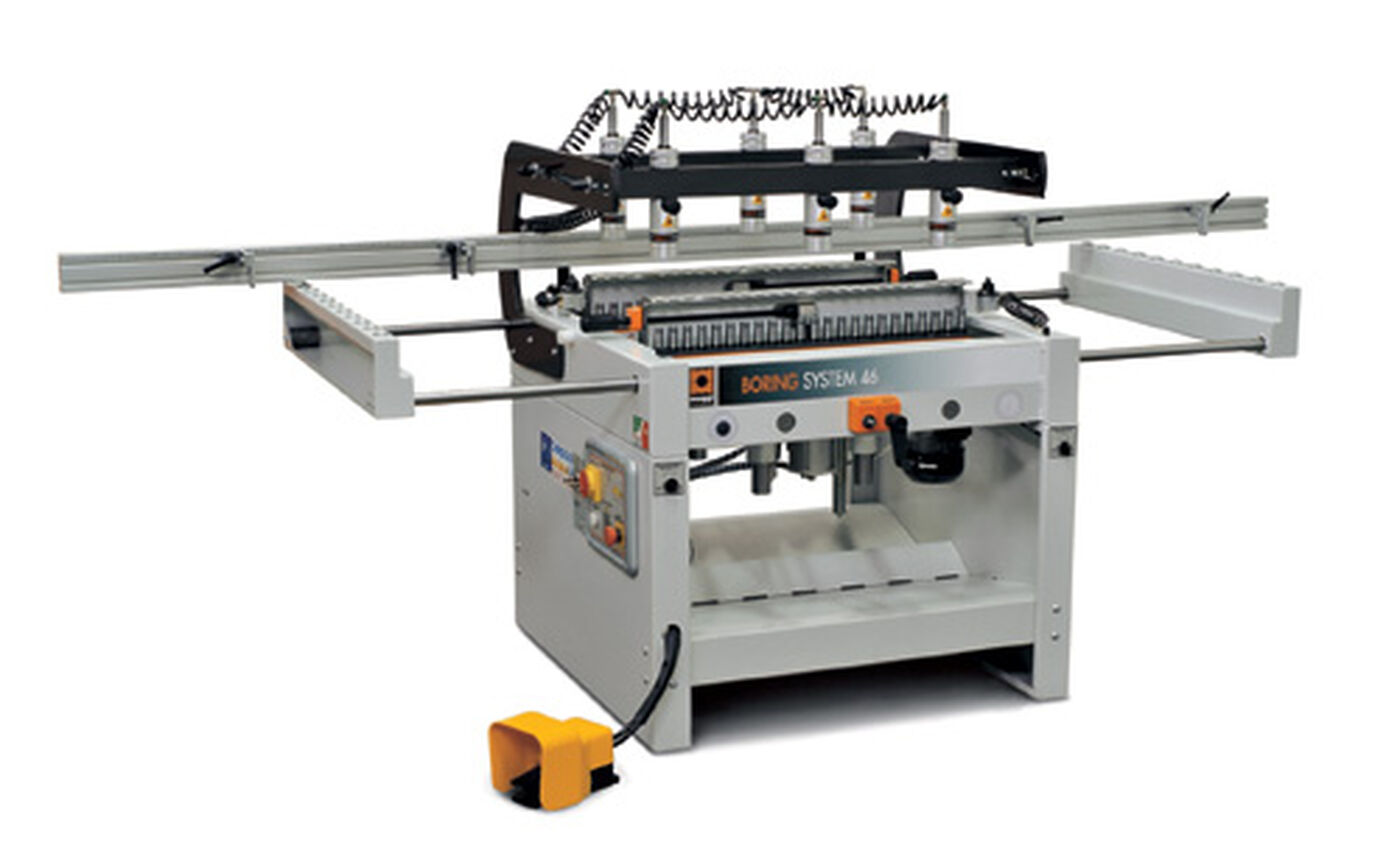

Maggi Boring System 46
Double headed boring machine.

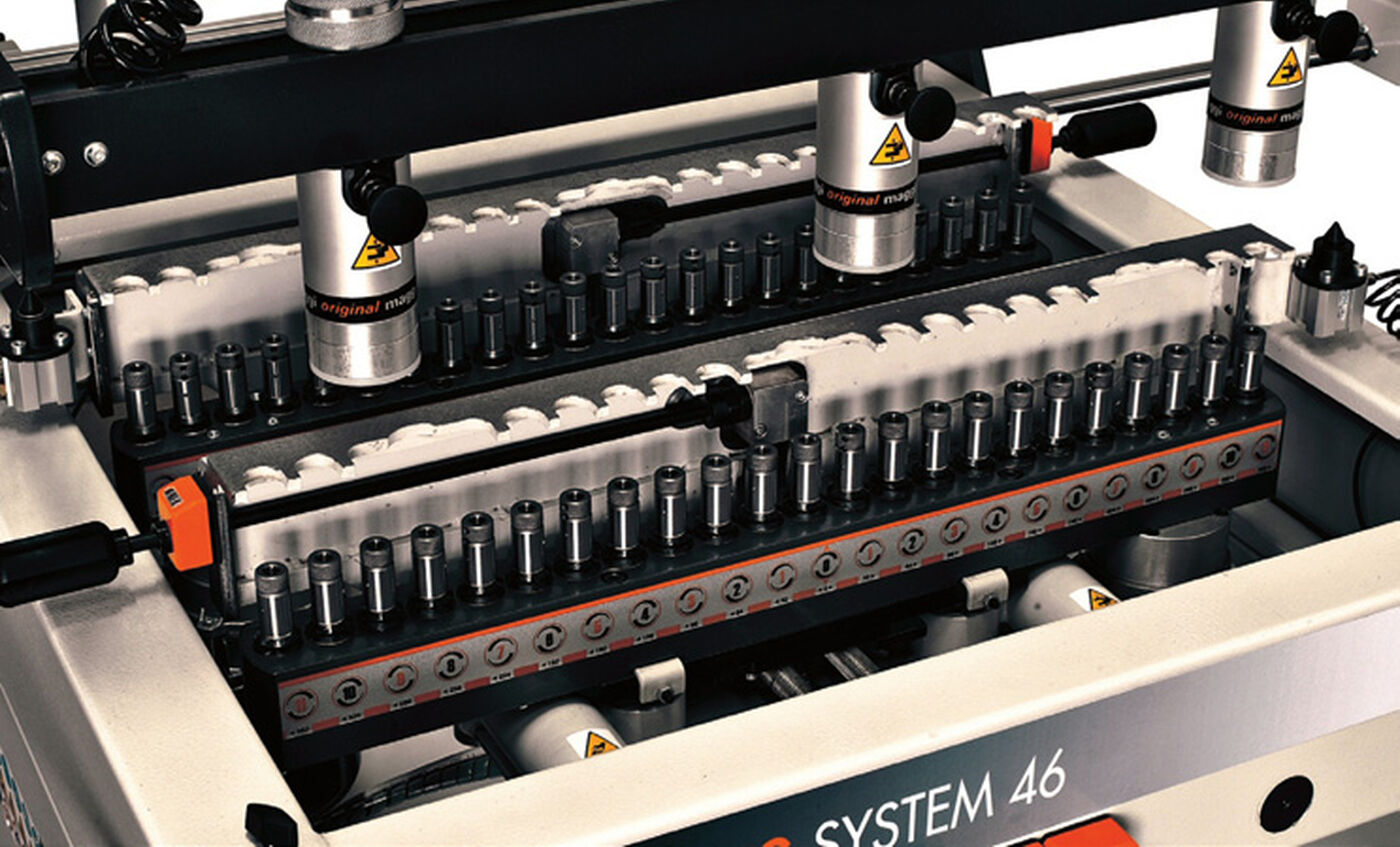

Semi automatic boring machine equipped with N. 2 parallel vertical boring heads.

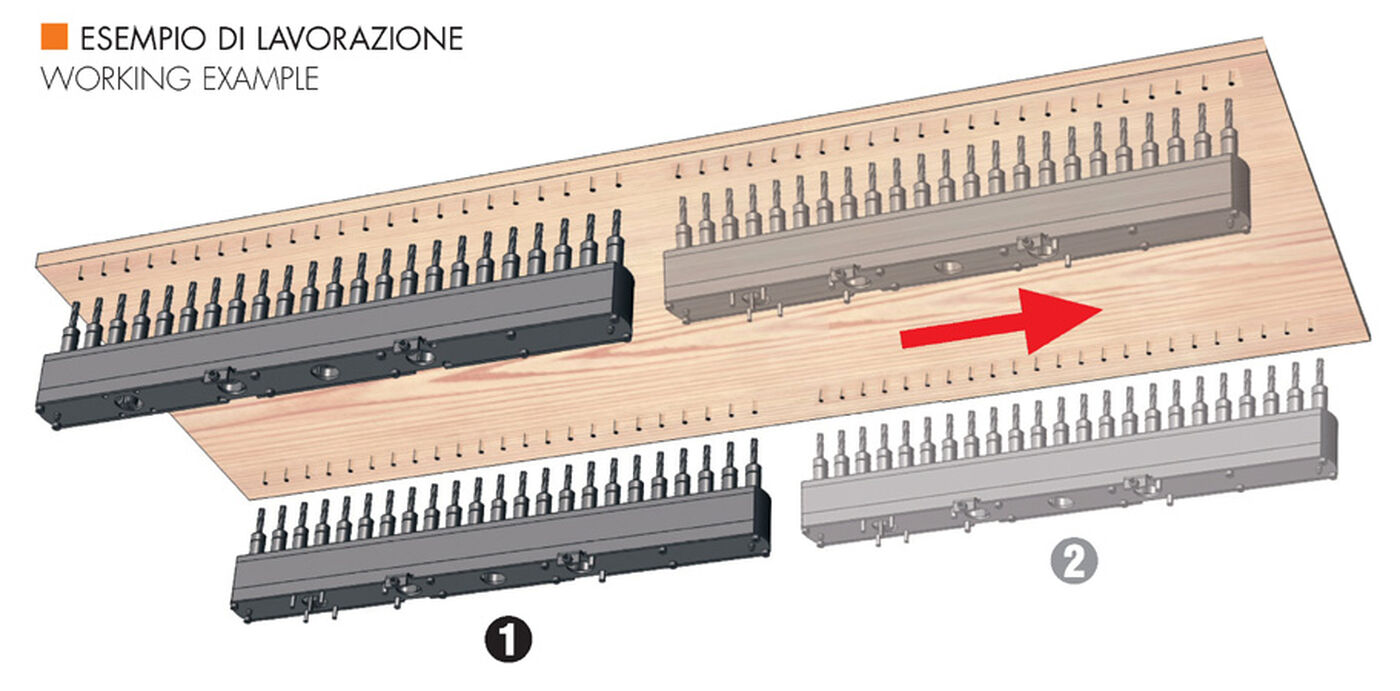

Machine for vertical boring, expressly designed to execute holes in a line and particularly suited for the bookcase and wardrobe-side processing.
Quick, precise and easy set-up.
Feel free to contact R&J Machinery for more information.
Maggi Boring System 46 Features
Quick change chunks

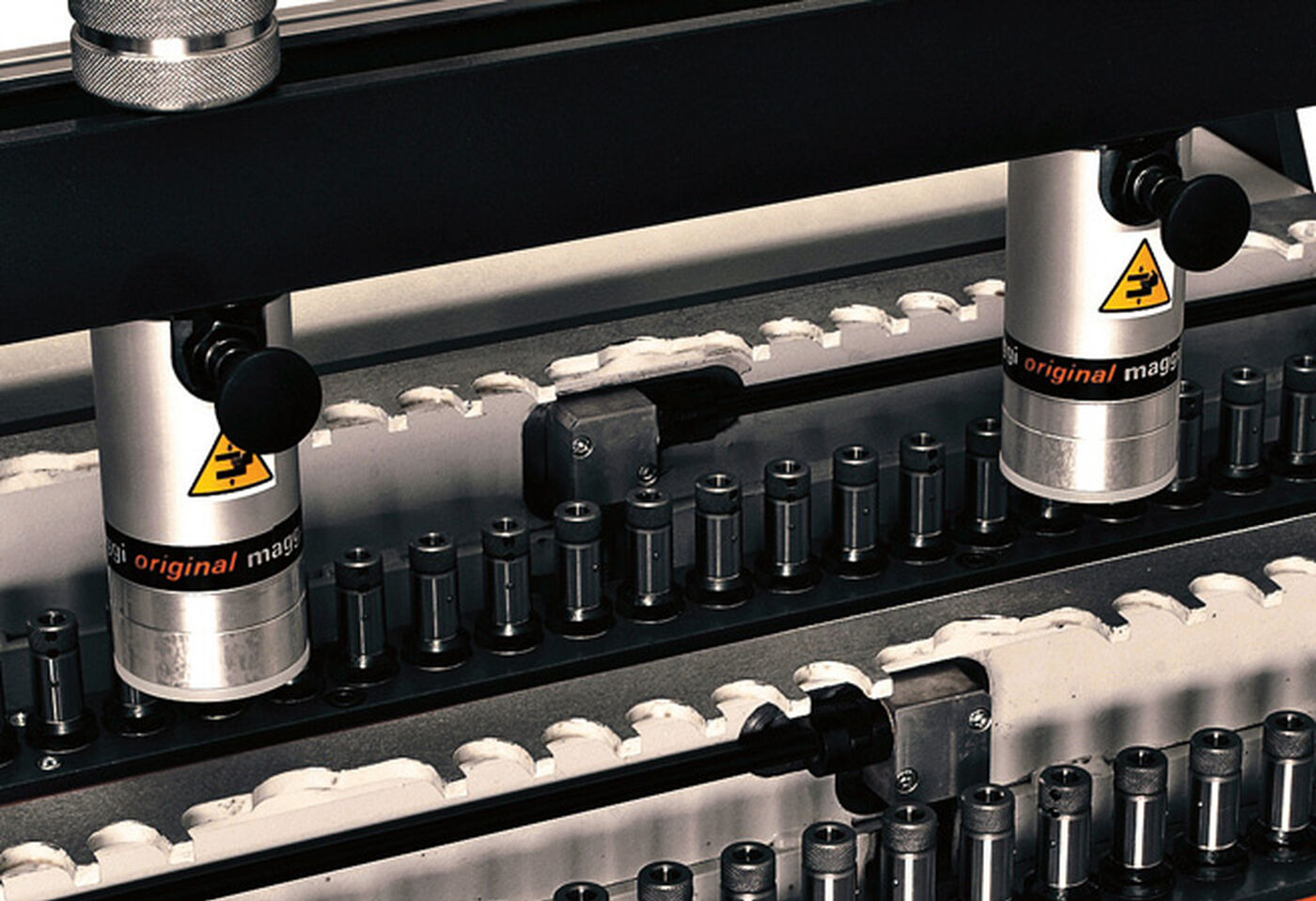

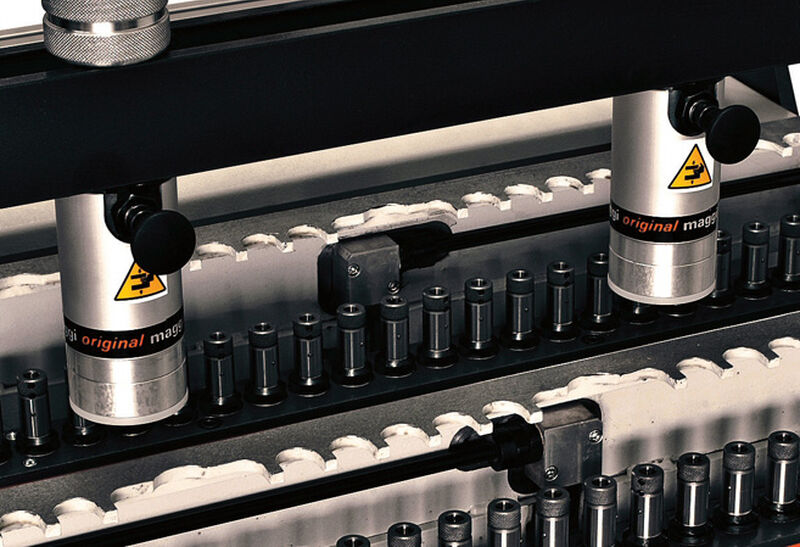

Aluminium made boring heads
Machine manufactured according to EC standards
Maggi Boring System 46 Specification
| NUMBER OF VERTICAL HEADS | 2 |
|---|---|
| NUMBER OF SPINDLES (LEFT RED - RIGHT BLACK) | 23 (11-12) |
| INTERAXIS BETWEEN SPINDLES | 32 mm |
| INTERAXIS BETWEEN FIRST AND LAST SPINDLE | 704 mm |
| MAX BORING DEPTH | 55 mm |
| INSIDE DIAMETER OF QUICK CHANGE BUSHES | 10 mm |
| MAX HEIGHT OF CLAMPS FROM WORKING TABLE | 75 mm |
| MINIMUM DISTANCE BETWEEN THE TWO HEADS | 130 mm |
| MAX DISTANCE BETWEEN THE TWO HEADS | 650 mm |
| MAX DIMENSIONS OF THE WORKING PIECE | 700 x 3000 mm |
| HEIGHT OF THE WORKING TABLE | 875 mm |
| NUMBER OF CLAMPS | 6 |
| NUMBER OF MOTORS | 2 |
| MOTOR POWER | 1,5 (1,1) HP (kW) |
| MOTOR R.P.M. (50 Hz) | 2800 rpm |
| NOISE LEVEL (Max allowed 90 dB) | 82 dB |
| WORKING AIR PRESSURE | 6-8 bar |
| STANDARD AIR PRESSURE CONSUMPTION | 20 l/ciclo-cycle |
| OVERAL DIMENSIONS | 1160 x 1130 x 1280 mm |
| PACKAGE DIMENSIONS | 1070 x 1220 x 1120 mm |
| NET/GROSS WEIGHT | 370 / 410 kg |
