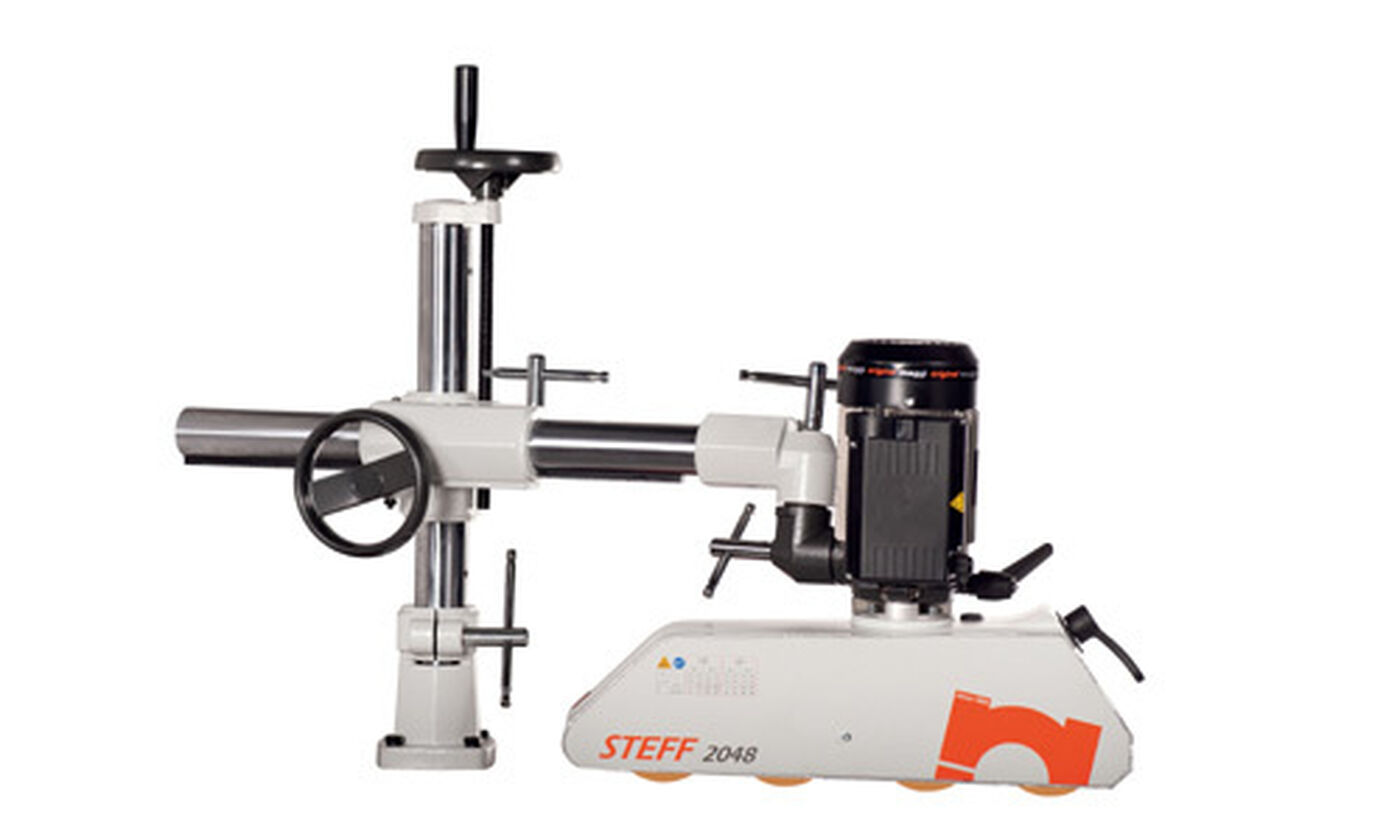

Maggi Steff 2048
About the Maggi Steff 2048
The Maggi STEFF brand has always been the dominant name in power feeders for the woodworking industry. Known for high quality and reliability, feeders are the professional’s choice for woodworking applications. Automatic Power Feeders allow even an unskilled operator to work safely since the need for hands and fingers to be near the cutting tool is virtually eliminated. Furthermore, as the rollers/belts hold the stock in place, kickback possibilities are practically eliminated. Also, the finish cut of your product is uniform and free of defects associated with uneven stop/start feeding of your product.
Feel free to contact R&J Machinery for more information.
Maggi Steff 2048 Features
4 rollers - 8 steady speeds back and forward motion. 2 speeds are obtained by changing the position of the gears inside the housing, while other 2 speeds result from the switching of the bipolar engine (1400-2800 rpm). Thanks to a gear shift the user can choose among a double range of speeds and easily select the most suitable one.
4 rollers for more efficacious feeding of the work piece
Motor power enables any kind of feeding
Resistant and protective electrostatic powder-paint
Interchangeable gears have been sintered, carbonitried and tempered
Case hardened and rectified endless screw of the motor shaft enables perfect matching of the bronze aluminium crown wheel (BR/AL UNI 5275) with reducer unit
The kind of oil used for the reducer (Mellan 150 IP or similar) ensures unlimited lubrication
Product Documentation
Maggi Steff 2048 Specification
| Motor Power | 0.7/1HP 0.52/0.75Kw |
|---|---|
| Working speed (m-min) | 2-4-5.5-6.5-11-13-16.5-33 (50Hz) |
| Number of Rollers | 4 |
| Roller Diameter | 120 mm |
| Rollers width | 60 mm |
| Roller Excursion | 20 mm |
| Net Weight | 63 Kg |
| Gross Weight | 66 Kg |
