Barbaric B1 UL GK 250 Vacuum Lifter with Integrated Chain Hoist
Our Price
£POA
Availability
Available Now
The price for this product is on application only. Please contact us to discuss the options available to you.
For sales and advice call today!
01455 840224
About the Barbaric B1 UL GK 250 Vacuum Lifter with Integrated Chain Hoist

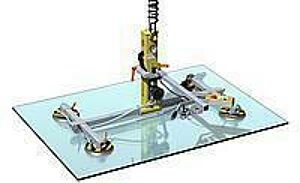

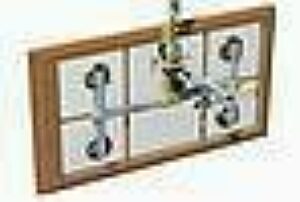

The Barbaric B1 UL GK 250 is used for vertical or horizontal transport of flat glass up to 3.2m x 2.5m. The vacuum is produced by pneumatic vacuum pump with ventury system. for quick release of the glass, a push off equipment is installed. The basic version is completely equipped with hoist devices and safety equipment.
For more information please contact R&J Machinery on 01455 840224.
Barbaric B1 UL GK 250 Vacuum Lifter with Integrated Chain Hoist Features
-
The variable construction allows manipulation of usual types of glass plates
-
Nearly free of imprints by using a new rubber mixture
-
For quick release of the glass plate a "push off equipment" is installed
-
Our special handling switch for "single hand" operation is mounted at a tiltable operation arm
-
It includes all control elements for the chain hoist and the vacuum lifter as well
Barbaric B1 UL GK 250 Vacuum Lifter with Integrated Chain Hoist Options
-
Safe working load 500Kg with suction cups BA350
-
Safety system by load measurement 500Kg
Barbaric B1 UL GK 250 Vacuum Lifter with Integrated Chain Hoist Specification
| Lifting speed | 2-8 m/min |
|---|---|
| Lifting height | Approx 2 m |
| Operating voltage | 230 / 50, 400 / 50 v/Hz |
