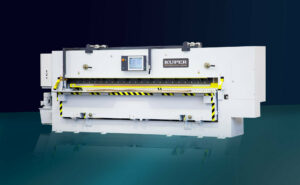

KUPER DOUBLE KNIFE GUILLOTINE ZSF 3200
Our Price
£POA
Availability
Available Now
The price for this product is on application only. Please contact us to discuss the options available to you.
For sales and advice call today!
01455 840224
Function KUPER ZFS System Josting

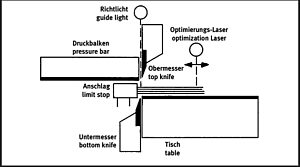

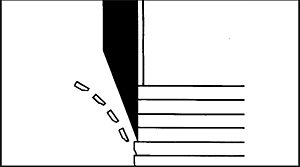

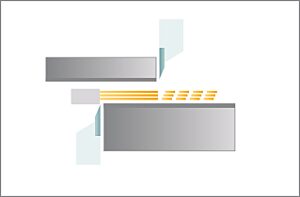

The veneer pack is placed on the machine table and up against the limit stop. The rear cutting line is clearly indicated by a guide light and the front cutting line by an optimization laser. Once the cutting width is entered, the cutting cycle is executed: The table moves into cutting position, the pressure bar clamps the veneer pack in place, and the top and bottom knife cut the pack ready for jointing. When the cutting cycle is completed, the table returns to the alignment position. Veneer strips are cut only with the top knife in incremental mode.
High-speed positioning drive

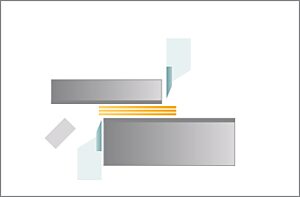

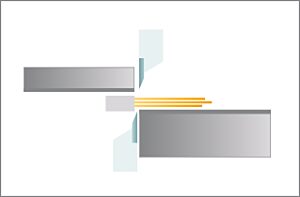

The machine table with the bottom knife can be adjusted for various width dimensions by means of a high-speed positioning drive. First the pressure bar clamps the veneer pack, then the top knife cuts downwards towards the table and the bottom knife upwards towards the pressure bar.
KUPER DOUBLE KNIFE GUILLOTINE ZSF 3200 Features
Insertion height 80 mm
Cutting range 20 – 470 mm
Pressure bar 3 Hydraulic cylinders, 2 pressure stages
Top knife brake motor, gearing, crank drive
Bottom knife 1 hydraulic cylinder
Operating voltage standard400 V, 3 Ph, 50 cycl. or special voltage
Total connected load approx. 12 kVA
KUPER DOUBLE KNIFE GUILLOTINE ZSF 3200 Options
The machine table with the bottom knife can be adjusted for various width dimensions by means of a high-speed positioning drive. First the pressure bar clamps the veneer pack, then the top knife cuts downwards towards the table and the bottom knife upwards towards the pressure bar.
KUPER Servicing
Woodworking machines are only as good as their preparation. Our in-house team of trained engineers are on-hand to visit your workshop and provide you with scheduled KUPER servicing, ensuring that your machines are optimised for maximum performance and continue to meet safety standards.
R&J Machinery is proud to be the main UK agent for KUPER
R&J Machinery has a long relationship with KUPER, and we are proud to be the main UK agents and importers for their machines and spare parts. We are one of the top-tier suppliers of KUPER veneering machines across Europe, and our team of service and repair engineers travels to KUPER in Germany for training on the latest machinery developments.
You can be sure that our team are fully qualified to offer you guidance on the ideal KUPER veneering setup for your needs, and are fully qualified to service and maintain your existing machines to the highest standard. We look forward to talking to you soon about all things KUPER!
For sales, servicing, parts, advice and support, please call our office team on 01455 840224.
