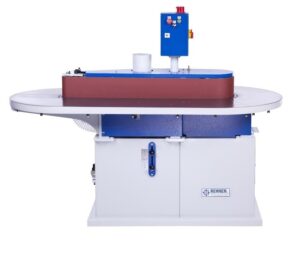

Rehnen Edge Sanding Machine SK-1

Our Price

£POA

Availability Available Now

The price for this product is on application only. Please contact us to discuss the options available to you.

Finance
& Part-Ex

Sell Used
Machines

Call-Back Request Form

For a call-back to discuss this machine, servicing or spare parts, please complete your details below and we'll get in touch as soon as possible.

Please note that fields marked with * are mandatory and must be completed.

For sales and advice call today! 01455 840224

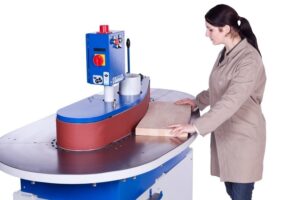

The edge sanding machine SK-1 is ideal for sanding large, curved and straight workpiece edges.

For further information please contact R&J Machinery on 01455 840224.

Rehnen Edge Sanding Machine SK-1 Features

The SK 1 is primarily used for sanding radii and moulded parts
The sanding unit, which features radii of 80 mm, 300 mm and 1,000 mm, is also equipped with a straight sanding surface
The pneumatic, continuously height-adjustable oscillator and heavy cast iron sanding unit ensure full belt utilization and a high-precision sanding result
The generously sized, circumferential working table with integrated extraction ensures easy and ergonomic working

Rehnen Edge Sanding Machine SK-1 Options

Transport unit with large rollers
Sanding belt width: 200 mm

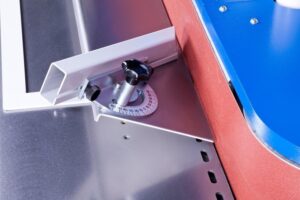

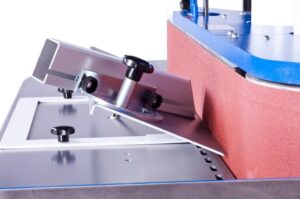

Swivelling additional table
Veneer sanding unit
Other sanding belt widths available upon request

Rehnen Edge Sanding Machine SK-1 Specification

Voltage	400V, 50Hz
Motor Power	4 kW
Size of Sanding Belt	150 mm × 2,700 mm
Speed of Belt	15 m/sec
Table Size	345 mm × 2,000 mm
Required Place	2,000 mm × 3,000 mm
Weight	560 kg
Extractor Connection	Diameter 140 mm
Air Requirement	80-90 l/min
Continuously variable pneumatic oscillator, adjustable	30-130 mm
Noise Emitted at Work Station	84 dB (A)
