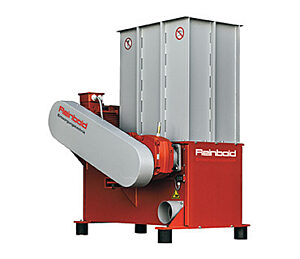

Reinbold AZR 50 PRIMUS Single Shaft Shredder
Our Price
£POA
Availability
Available Now
The price for this product is on application only. Please contact us to discuss the options available to you.
For sales and advice call today!
01455 840224
About the Reinbold AZR 50 Primus
The AZR 50 Primus series is the starter model of the single-shaft material shredders with drawer feed. Nearly all types of material can be processed economically with the slow-running rotors.
The AZR 50 PRIMUS is the perfect machine for smaller firms. Qualified for the crushing of wood waste and matured timber in a joinery, for example. Sturdy construction, high throughput rates, very reliable, easy to use, easy maintenance, lower operating costs and a wide range of possibilities for use.
For further information please contact the sales team on 01455 840224.
Reinbold AZR 50 PRIMUS Single Shaft Shredder Features
-

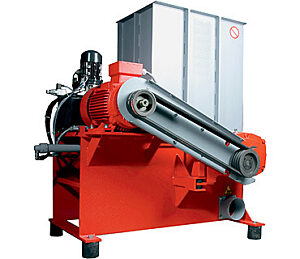

Hydraulic unit and hydraulic cylinder for the drawer. Hydraulic feed for a constant flow of material to the rotor and for continous shedding
-

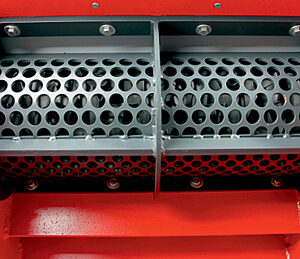

The screen perforation determines the size of the shreds
-

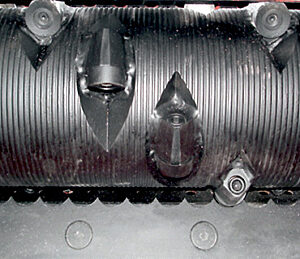

The knife holders are welded on the rotor and the round knives can be turned up to 8 times with just a few adjustments before having to be exchanged completely
-
The highly efficient scissors cut of the concave ground circular cutting heads enable a very high work rate with very little effort
Reinbold AZR 50 PRIMUS Single Shaft Shredder Specification
| Feed opening | 500 mm x 745 mm |
|---|---|
| Hopper Volume | 0.5 m³ |
| Throughput | According to material and screen |
| Rotor-Ø | 180 mm |
| Rotor Speed | 100 UpM |
| Power | 11 kW |
| Knives | 28 Pcs (with 30mm Ø) |
| Screen Perforation | 10 mm - 30 mm |
| Suction port-Ø | 160 mm |
| Air speed | 28 m/sec |
| Weight | Approx. 800 kg |
