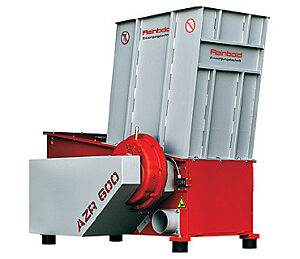

Reinbold AZR 600 Special Shredder

Our Price

£POA

Availability Available Now

The price for this product is on application only. Please contact us to discuss the options available to you.

Finance
& Part-Ex

Sell Used
Machines

Call-Back Request Form

For a call-back to discuss this machine, servicing or spare parts, please complete your details below and we'll get in touch as soon as possible.

Please note that fields marked with * are mandatory and must be completed.

For sales and advice call today! 01455 840224

About the Reinbold AZR 600 Special Shredder

The AZR 600 Special series provides a compact design combined with great power. These machines are best suitable for use in small or medium-sized companies which attach great importance to an optimum cost-benefit ratio. Further features include: robust design, high throughput rates, excellent reliability, operator-friendly, easy maintenance, low operating costs, wide range of applications.

For further information on the Reinbold AZR 600 Special, please contact the sales team on 01455 840224.

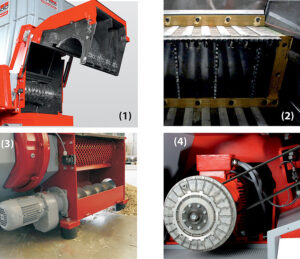

Reinbold AZR 600 Special Shredder Features

The rotor shaft is made of solid steel. Adjustable cutting gap between rotor and counterknife (optional)
Hydraulic feed to ensure constant material feed to the rotor
Hydraulic cylinders suspended by cardanic joints prevent shortening of piston cup service life
Range of different screen mesh sizes for required chip size depending on material and task
Security package with gear end limit switch and reverse counter
Standard perforation size is 15/20mm
Throughput rate: This parameter depends on the type of material being processed (long, short, wet, dry etc) as well as on the size of the screen perforation. A machine usually processes between two and four hopper fillings per hour.
Removal of chips: For this purpose you can use a suction plant, a conveyor screw or a conveyor belt. The minimum air speed for suction plants is 28 m/s

Reinbold AZR 600 Special Shredder Options

Perforation sizes (mm): 10/12, 12/15, 20/25, 25/30, 35/40
Removal of chips options: Movable screen cage - 4 sided segmented floor, serrated plate and serrated rail - Delivery by worm screw - Turbo clutch from 30kw

Reinbold AZR 600 Special Shredder Specification

Hopper opening	600 mm x 800 mm
Hopper volume	0.6 m³
Throughput rate	Depends on the type of material and screen used
Rotor-Ø	252 mm
Rotor speed	90 rpm approx
Power consumption	18.5 kW
Tools	30 pcs
Screen perforation	10-40 mm
Suction port-Ø	160 mm
Air speed	28 m/sec
Weight	1,300 kg

Downloads

Reinbold AZR Shredder Brochure PDF file
