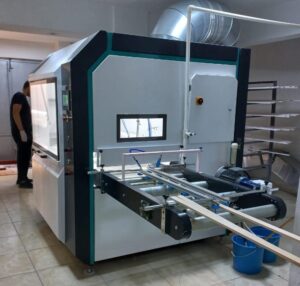

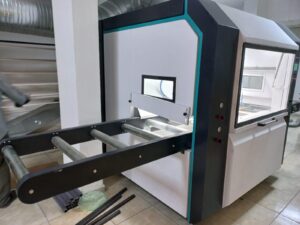

Spreymak Profile Painting machine

Our machine is designed for painting wood, metal, plastic, pipes, composites, and similar materials ranging from 20 mm to 450 mm in width. It features a color screen and numerous functions including automatic and manual spraying, date, speed, quantity, meters, and minutes. The continuous return ring between the gun and pump prevents clogging. It is ideal for high-quality, fast, and economical painting.

Technical Specifications
Machine Height    2000 mm
Machine Width    1700 mm
Conveyorized    4400 mm
Conveyorless    2000 mm
Machine Weight    860 kg
Painting Width    350 mm
Number of Handguns    4 automatic paint guns
Paint Transfer Pump    1 piece
Fan Exhaust with Plastic Blades    1 x 1.5 kW electric motor
Automatic PLC Control    Color screen for ease of use.
Front Cover Tempered Glass    1 piece
Air Pressure    6 bars
Return System    Reusing leftover paint
Energy Consumption    2.8 kW/h
Conveyor Drive System    Speed-adjustable drive with 13-stage relay.
Machine Interior Lighting Watertight Lamp    2 x 80 Watt non-arc, starterless
Distribution Power Panel    1 piece
Packaging Type    Stretching
Machine Cleaning Time    3 minutes with 2 liters of thinner
