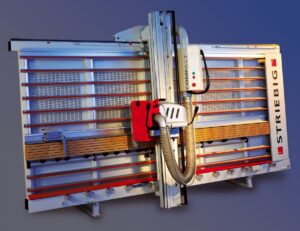

Striebig Compact

Our Price

£POA

Availability Available Now

The price for this product is on application only. Please contact us to discuss the options available to you.

Finance
& Part-Ex

Sell Used
Machines

Call-Back Request Form

For a call-back to discuss this machine, servicing or spare parts, please complete your details below and we'll get in touch as soon as possible.

Please note that fields marked with * are mandatory and must be completed.

For sales and advice call today! 01455 840224

For more information on the Striebig Compact, please call R&J Machinery on 01455 840224.

Striebig Compact Features

Automatic sawing sequence
Central and small parts support over the entire length
Central support: aluminium frames
Pneumatically braked support rollers

Striebig Compact Options

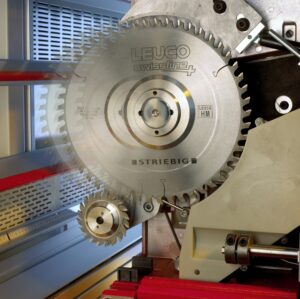

Scoring saw unit VSA

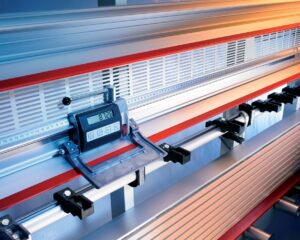

Digital measuring system DMS
Angle cutting unit WSG
Strip cutting gauge 400 mm / 600 mm
Additional workpiece locking system
Aluminium small parts support (1 pair)
Paper holder
Central support: high-end frames made of synthetic materials
Grooving accessory for composite panels
Profile cutter with reversible carbide tips:U-shaped, 135°, 90°
Depth stop for adjustable grooving tool
Adjustable grooving tool with reversible carbide tips
Mechanically braked support rollers
Extension of the feed speed (25 m/min)
Special voltage
Tropical insulation

Striebig Compact Specification

Weight of the Saw	Approx. 815 kg
Cutting Depth	60 mm
Saw Motor Rating	3.9 kW
Saw Blade Diameter	250 mm
Saw Blade Bore	30 mm
Saw Blade Speed	5250 rpm
2 Extraction Connections	ø 100 mm
Wattage	4.8 kW
Mains cCnnection	3 x 400 V / 50 Hz
Emission Sound Pressure Level @ Workplace LpA	82 dB

Downloads

Striebig Compact PDF file
