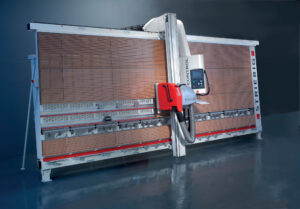

Striebig Control
Our Price
£POA
Availability
Available Now
The price for this product is on application only. Please contact us to discuss the options available to you.
For sales and advice call today!
01455 840224
For more information on the Striebig Control, please contact R&J Machinery on 01455 840224.
Striebig Control Features
-

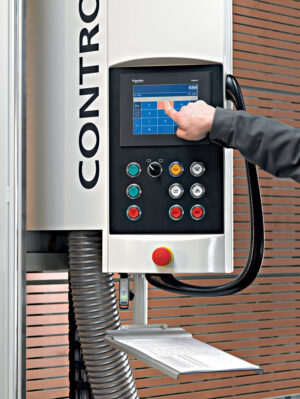

Visualisation and operation via 7.5“touchscreen colour display
-
PLC control with multilingual user interface and error detection
-
Transmission of externally created Excel cutting lists by means of a USB stick to the touchscreen
-
Fully automated sawing sequence
-
Infinitely selectable feed speeds from 10 to 25 m/min
-
Selectable saw cycle
-
Panel end recognition
-
Constant return speed
-
Operating time counter
-
Tool database
Striebig Control Options
-

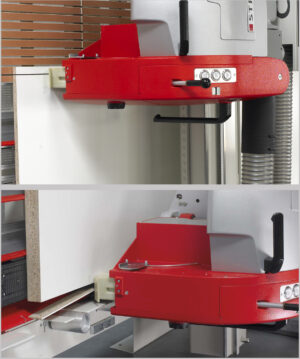

4SB – Automatic bottom trimming
-
ABO – Automatic top trimming
-

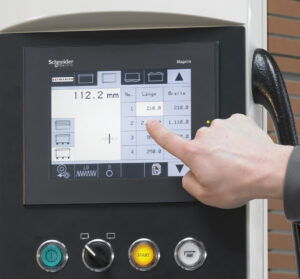

EPS – Electronic positioning system
-

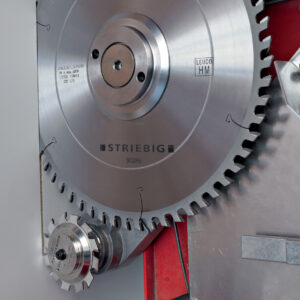

VSA – Scoring saw unit
-
WSG – Angle cutting unit
-
NVV – Grooving accessory for composite panels and adjustable grooving tool
-
”High-End“ central support
-
Paper holder
-
Cutting depth 100 mm
-
Saw motor with 2 speeds
-
Special voltage
-
Tropical insulation
Striebig Control Specification
| Weight of the saw | Approx. 1,200 kg |
|---|---|
| Cutting depth | 80 mm |
| Saw blade speed | 4,800 rpm |
| Saw motor rating | 5.5 kW |
| Saw blade diameter | 300 mm |
| Wattage | 7.5 kW |
| Saw blade bore | 30 mm |
| Mains connection | 3 x 400 V/50 Hz |
| Emission sound pressure level at the workplace LpA | 83 dB |
