Striebig Standard

Our Price

£POA

Availability Available Now

The price for this product is on application only. Please contact us to discuss the options available to you.

Finance
& Part-Ex

Sell Used
Machines

Call-Back Request Form

For a call-back to discuss this machine, servicing or spare parts, please complete your details below and we'll get in touch as soon as possible.

Please note that fields marked with * are mandatory and must be completed.

For sales and advice call today! 01455 840224

For more information on the Striebig Standard, please contact R&J Machinery on 01455 840224.

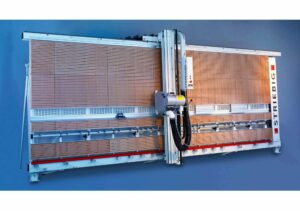

Striebig Standard Features

Self-supporting, welded, rigid saw frame
Absolute parallelism of guide rail, central support and roller support

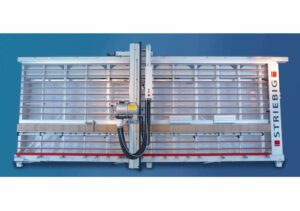

TRK2: automatically yielding aluminium support frame with plastic supports
TRK1: laminar support wall made of plywood birch
Exceptionally efficient integrated TRK dust extraction system, dust limit value well below 1 mg/m³
Aluminium small workpiece support (1 pair)
Roller support with 17 rollers and 3 brake pedals
Central support with aluminium frames over entire length
Stable, durable saw beam design
Perfect angular accuracy due to twin interlocking of the saw beam

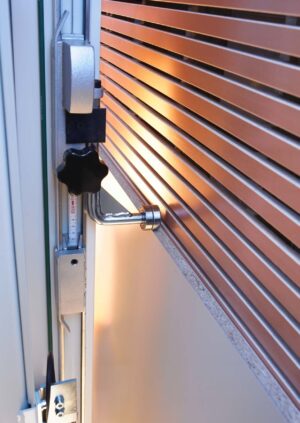

Built-in strip cutting gauge for repeat cuts
Fixed dimension setting for recurring dimensions
Robust motor carriage bearing ensures very precise cutting
Compact vibration-free saw unit
Simple operation thanks to fully balanced unit
Powerful, high-torque 5.5 kW motor (7.5 hp)
Carbide circular saw blade 300/30 mm

Striebig Standard Options

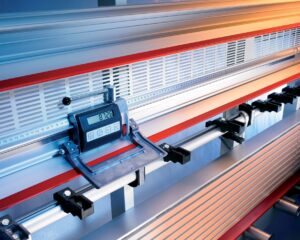

Digital measuring system DMS
Angle cutting unit WSG
Small workpiece support, wood
Document holder
Additional workpiece locking system
Central support: ’high-end’ frame made from synthetic materials
Grooving accessory for composite panels
Depth stop for the adjustable grooving tool
Profile cutter with reversible carbide tips:U-shape/135°/90°
Reversible carbide tips for adjustable grooving tools
Two-speed motor
Operating time counter
Special voltage
Tropical insulation
Pneumatically braked support rollers

Striebig Standard Specification

Weight of the saw TRK	920 kg
Saw blade bore	30 mm
Saw blade speed	4,750 rpm
Cutting depth	80 mm
2 extraction connection Ø	100 mm
Wattage	7.5 kW
Mains connection	3 x 400 V / 50 Hz
Saw blade diameter	300 mm
Saw motor rating	5.5 kW

Downloads

Striebig Standard Brochure PDF file
