TigerAngle 3D
For fast, easy, accurate mitre sawing and compound angles
Introducing the TigerAngle 3D
For fast, easy, accurate mitre sawing and compound angles
Our Price
£POA
Availability
Available Now
The price for this product is on application only. Please contact us to discuss the options available to you.
For sales and advice call today!
01455 840224
Suitable for processing wood, aluminium and plastic

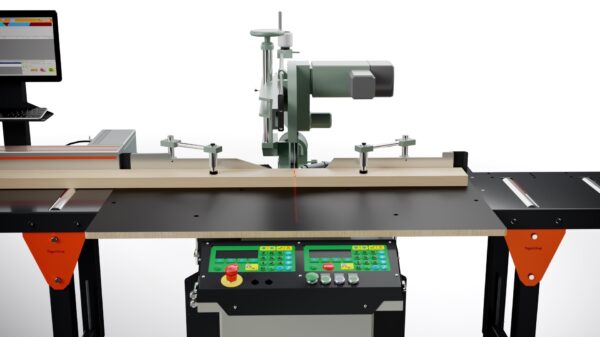

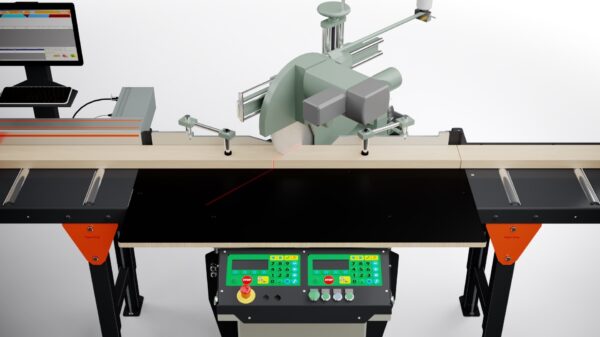

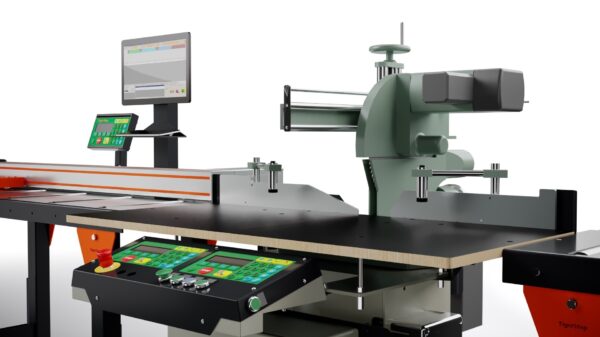

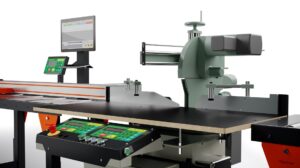

The Tigerstop TigerAngle incorporates a Graule ZS170 or ZS200 Cross-cut saw with Tigerstop automation to control the angle and length of cut. It designed for use in the wood, PVC and aluminium industry for making 90 degree and angle cuts speed and repeat accuracy. The operator will be responsible for loading the material onto the machine, offloading, and pulling the saw head to perform the cut. Full automation is available.

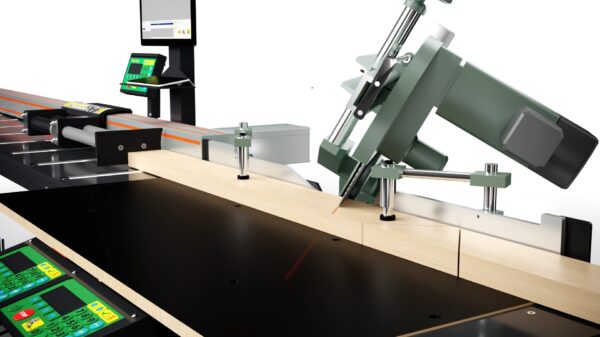

The Graule Saws can also be tilted to make compound cuts (Tigerstop TigerAngle 3D with full control of vertical tilting, or by manual adjustment for Vertical angles). The main saw support arm is equipped with four bearing sleeves for a perfect linear guidance of the saw to obtain cuts with a high accuracy. In combination with a Tigerstop System you will have an installation that enlarge your production and efficiency.
TigerAngle 3D effortlessly cuts all angles when processing wood, aluminium and plastic
Do you spend a lot of time on complex mitre sawing and do you want to speed up the sawing process? Do you feel that too many sawing errors are being made or that you have to throw away material unnecessarily? If so, then the TigerAngle 3D is the solution for you.
These are the advantages
Easy and fast
Enter the parts and angles and the saw will move to the correct position and ensure that the parts are cut with utmost precision. Our customers - without exception - experience a significant time savings when compared against conventional sawing.
Work efficiently
The TigerAngle is equipped with intelligent BeamWorks software. This software ensures that parts are cleverly arranged, placed or rotated. This makes cutting angles simple, efficient and precise!
Prevent repair work

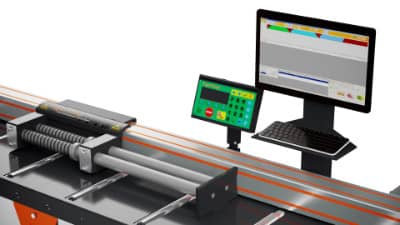

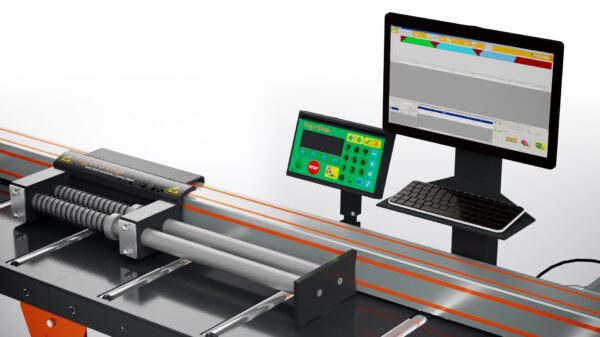

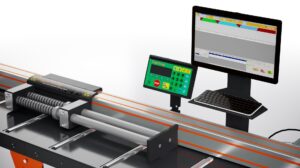

The BeamWorks software controls your sawing process, preventing errors and expensive repair work. The TigerStop positions quickly to the desired length, with a repeat accuracy of +/- 0.3mm. Thanks to this precision, less post-processing is required and every employee becomes a professional.
How does the TigerAngle work?
The TigerAngle is a radial saw with automated angle adjustment. Sawing at angles used to take a lot of setup time and was not accurate, but is now a lot easier.

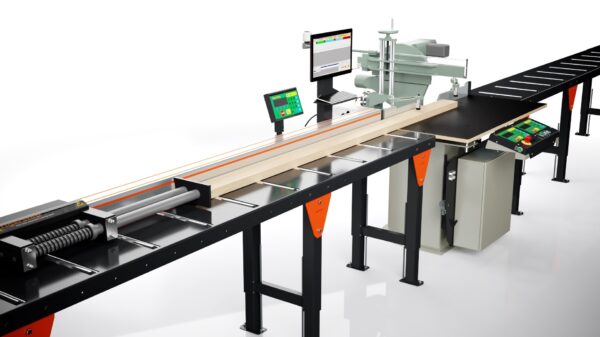

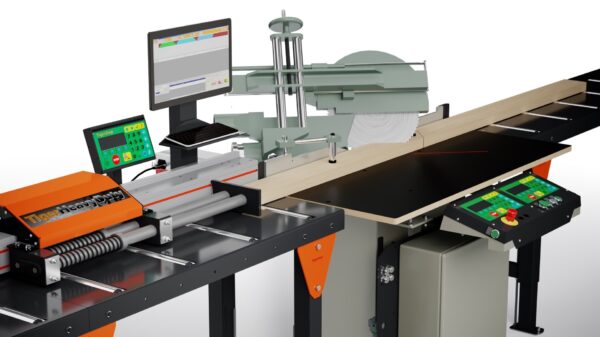

The TigerAngle can be supplied as desired with a controller for the swivel and/or rear corner. The complete sawing machine is custom-made and can be equipped with BeamWorks software and the TigerStop, for example, with which you can saw parts with the highest precision!
TigerStop TigerAngle Options
-
Tiger label printer
-
Pneumatic clamping mechanism: 2x vertical
-
With option Tigerdrive to automate Vertical inclination (3D), PC with TigerAngle / Beamworks software and pneumatic clamping mechanism
-
LaserLine for indicating the saw cut (Line length 300mm)
-
Pressure regulator for vertical clamps
-
Mist spray for aluminium cutting
-
Special guide rail at 90 degrees for cutting sharp angles
-
Saw blades
-
Pneumatic actuation of the saw head to fully automate the cutting cycle - this option requires the large guard to be fitted infront of the saw as in the video to meet regulations
-
Infeed and outfeed loading / off loading systems
-
Two hand control and safety hood
