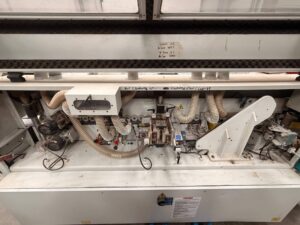

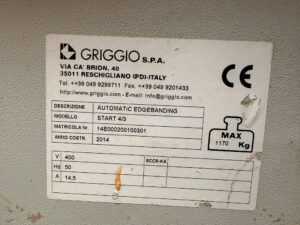

Used Griggio Start 4/3
Our Price
£POA
Availability
Available Now
The price for this product is on application only. Please contact us to discuss the options available to you.
For sales and advice call today!
01455 840224

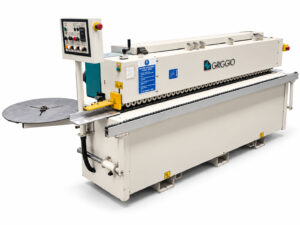

The Griggio START 4/3 is a compact automatic edgebander designed for reliable and consistent edge processing in furniture and panel production. Suitable for PVC, ABS, veneer, laminate and solid wood edging, the START 4/3 combines automatic gluing, end trimming, fine trimming, edge scraping and buffing within a compact machine footprint. It is well suited to smaller and medium-sized workshops looking to improve productivity and achieve a clean, professional finish.
Used Griggio Start 4/3 Features
-
Automatic edgebanding for straight panels
-
Suitable for PVC, ABS, veneer, laminate and solid wood edging
-
Edge thickness capacity from 0.4–3 mm
-
Maximum panel thickness of 40 mm
-
2-litre Teflon glue pot with rapid heating system
-
Electronic glue temperature control with automatic temperature reduction when idle
-
Pneumatic edge-cutting/shear system
-
Adjustable twin-roller edge pressure system
-
Automatic end-cutting unit with two tilting HF motors
-
Fine-trimming unit with two adjustable HF motors and 2 mm radius cutters
-
Edge scraping unit with digital numerical read-out
-
Twin-motor buffing unit for a clean finished edge
-
Roller support for wider panels
-
Adjustable upper pressure beam
-
CE compliant design
Used Griggio Start 4/3 Specification
| Min width of the panel | 90 mm |
|---|---|
| Min length of the panel | 200 mm |
| Max thickness of the panel | 40 mm |
| Min thickness of the panel | 10 mm |
| Edge dimensions in strips | 0,4-3 mm |
| Edge dimensions in roll | 0,4-3 mm |
| No. 1 feed speed | 8 m/1' |
| Glue tank capacity | 2 |
| Suction hoods | 6x80 mm 1x50 mm |
| Installed motor power | 6,5 kw |
| Air pressure | 6 bar |
