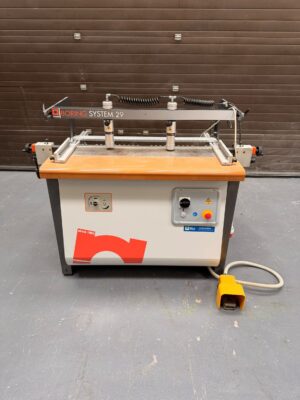

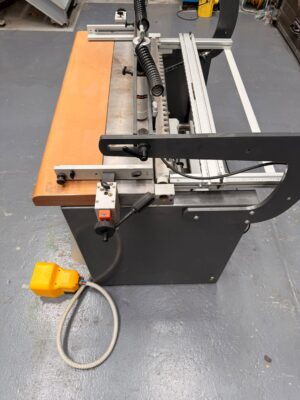

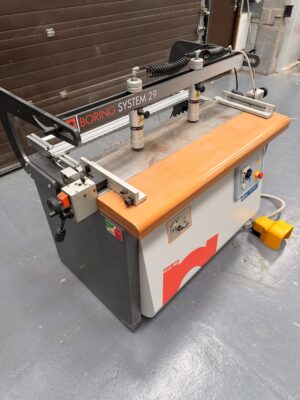

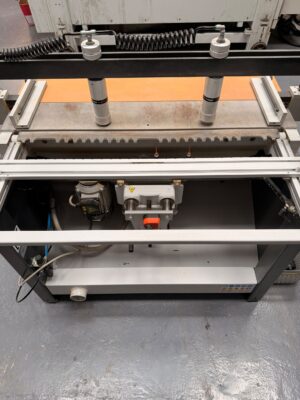

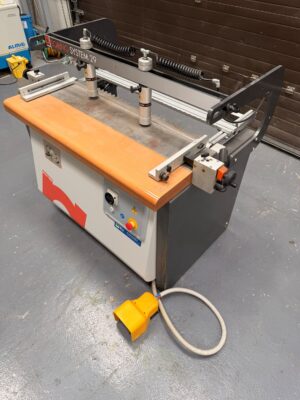

Maggi BORING SYSTEM 29

Semiautomatic, multispindle, single-head boring machine

For horizontal and vertical drilling into wood-based panels and solid wood, for the furniture manufacturing.

Small footprint:1,5 sqm

Two times faster than a manual boring machine

More than 20.000 machines manufactured, over thirty years' experience.100% made-in-Italy machines abiding by the highest quality standards as a result of the "Lean" manufacturing process, also known as "Toyota System".

Used Maggi BORING SYSTEM 29 Features

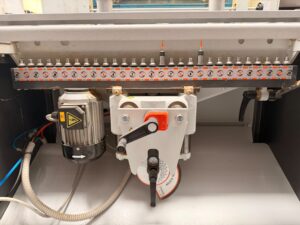

N.1 - 2HP Motor
N.2 patented safety hold-down clamps
N.5 quick-change chucks
N.2, 1500 mm long, aluminium fences, with 4 ref. stops
N.2 removable side-fences on working table, adjustable on high-precision numeric counters
N.2 fixed ref. stops at 37 mm for hinges
Boring-height adjustment on numeric counters
Spiral System : patented device for the quick adjustment of the boring depth
Rear fence having 300 mm max. stroke
Package:stackable carton box
Ready to be connected to a dust- collector
Manufactured according to EC standards

Used Maggi BORING SYSTEM 29 Specification

Spindles	N. 29
Left and right spindles	N. 14 - N. 15
Spindle interaxis	32 mm
Total interaxis	896 mm
Max. tool diameter	40 mm
Max. boring depth	65 mm
Max boring height	55 mm
Height of working table	860 mm
Dimensions of the working table	1141 x 350 mm
Max. panel thickness (optional*)	60 mm (130 mm *)
Max. panel dimensions	1156 x 3000
Motor	HP 2 / KW 1,5 - RPM 2800
Standard pneumatic pressure	BAR 6/8
Air consumption per working cycle	10 NL
Dust collection hood diameter	80 mm
Overall dimensions - net weight:	1480 x 950 x 1300 mm
Package dimensions (machine)	1250 x 950 x 1050 mm
Rod packaging size	1500 x 120 x 60 mm
Gross weight	kg 344
Net weight	kg 300
