Used Tigerstop UKA 600 Crosscut System

Our Price

£POA

Availability Sold

The price for this product is on application only. Please contact us to discuss the options available to you.

Finance
& Part-Ex

Sell Used
Machines

Call-Back Request Form

For a call-back to discuss this machine, servicing or spare parts, please complete your details below and we'll get in touch as soon as possible.

Please note that fields marked with * are mandatory and must be completed.

For sales and advice call today! 01455 840224

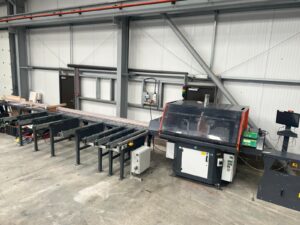

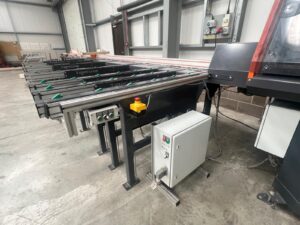

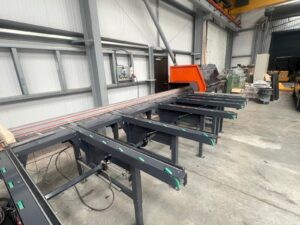

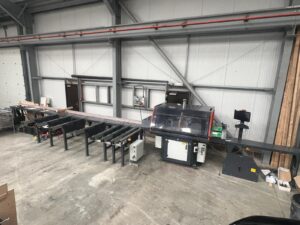

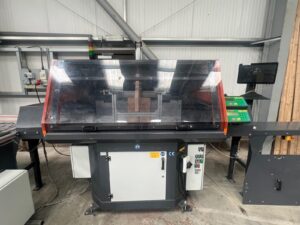

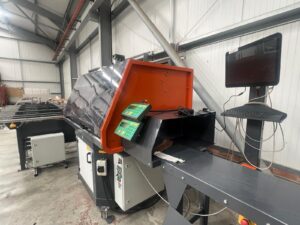

Used Tigerstop UKA 600 Crosscut System photo

TigerStop UKA 600 Crosscut System

The TIGER UKA 600 Cross Cut Installation is a 2015-manufactured crosscutting system designed for accurate, efficient and flexible cutting operations. Fitted with a 600mm saw blade and a 5.5kW motor, the machine offers a cutting capacity of 165 x 240mm at 90 degrees and supports cutting angles of 30-90-30 degrees and 45-90-45 degrees with automatic function.

Equipped with a TigerStop 7.5 Automatic Stop and pusher, the UKA 600 is suitable for semi-automatic or fully automatic operation, helping to improve precision, repeatability and production efficiency. The machine also includes PC control with Beamworks software, cut-list download capability for CSV files, automatic flipper loading for material lengths from 500mm to 6000mm, and product length measuring controlled from the controller.

Used Tigerstop UKA 600 Crosscut System Features

Manufactured in 2015
600mm saw blade diameter
5.5kW motor power
Cutting capacity of 165 x 240mm at 90 degrees
Maximum cutting height of 165mm at the fence
Maximum cutting height of 175mm for round material
Cutting angles of 30-90-30 degrees and 45-90-45 degrees with automatic function
TigerStop 7.5 Automatic Stop and pusher
Precision of +/- 0.4mm as pusher
Suitable for semi-automatic or fully automatic operation
Maximum feed speed of 40m/min, depending on load
PC control with Beamworks programme
Computer with touch panel and computer cabinet
Cut-list download possibilities for CSV files
Product length measuring with sensor, controlled from the controller
Length measuring and software download works on 90-degree cuts only
Flipper-loading device for automatic loading of material from 500mm to 6000mm
Infeed table with total length of 74 metres and table width of 325mm
Outfeed/infeed table with side fence, length of 37 metres and width of 325mm
Saw unit mounted on rotating table with 980mm diameter
Safety fence at the back of the machine infeed side
Entry door with safety lock
Extra front guarding to prevent entry between loading strands
Emergency stop safety relay
Complete wiring for safety fence door
Label printer package for Beamworks
Machine still under power
Location: GB
