Vitap Acoustic
Dedicated machines for execution of acoustic and sound absorbing panels (drilling and grooving)
Introducing the Vitap Acoustic
Our Price
£POA
Availability
Available Now
The price for this product is on application only. Please contact us to discuss the options available to you.
For sales and advice call today!
01455 840224
Not only acoustic performance, but an elegant aesthetic

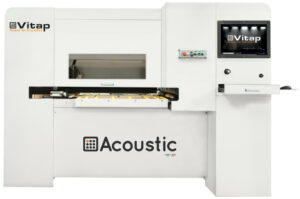

The Vitap Acoustic is a dedicated machine for execution of acoustic and sound absorbing panels (focusing on drilling). Vitap can also make customised "easy to change" head. Dedicated software for drilling and grooving optimisation.
Not only acoustic performance, but an elegant aesthetic
The Vitap Acoustic is a dedicated machine for execution of acoustic and sound absorbing panels (focusing on drilling). Vitap can also make customised "easy to change" head. Dedicated software for drilling and grooving optimisation.
Vitap Acoustic Features
-
N.1 monoblock drilling heads N.55 (11 x 32 mm x 5 ) Spindles with quick chucks
-
Motor Power: n. 2 x 4 kw
-
The heads rotate at 2,800 rpm
-
Max weight of the panel: 50 kg
-
Max panel size: X no limit, Y 1200 mm, Z 50 mm (see lay-out for details)
-
Min panel size: X 400 mm, Y 300 mm, Z 12 mm
-
Diameter of the dust extraction: 1 x ø 120 mm
-
Size: 2,615 x 1,640 x 1,890 mm
-
Weight: 1150 Kg
