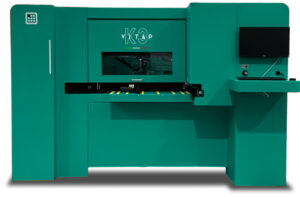

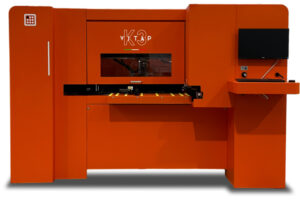

Vitap K3
A versatile, powerful and reliable CNC solution for anyone looking to streamline their workflow.
Introducing the Vitap K3
Versatile, powerful and reliable CNC solution
Our Price
£POA
Availability
Available Now
The price for this product is on application only. Please contact us to discuss the options available to you.
For sales and advice call today!
01455 840224
Discover the Revolutionary D-D-T System!
Why are Vitap CNC machines so different from others? At first glance, they are all compact and have similar functions..., but it's not like that. Discover the Revolutionary D-D-T System!
Patented D-D-T revolutionary seamlessly panel movement using two clamps saves time in your workflow. The machine's maximum panel locking panel thickness is 50mm (minimum 3mm).
The Vitap KS3 standard configuration includes improvement for Lamello execution left and right-side (Y axis travel implemented), more precisely. You will not be forced to turn the panel manually as happens in other machines in this category.
Vitap K3 Features
-
No. of vertical independent spindles: 12
-
No. of horizontal spindles on X axis: 2+2
-
No. of horizontal spindles on Y axis: 2+2
-
No. 1 saw blade unit: Diameter 100 mm
-
No. 1 Router head: 5 Kw in S1 (6 Kw in S6) ISO 30 (12,000/24,000 rpm)
-
Max. Panel Thickness: 50 mm
-
Control: Full Parametric
-
Max. Panel Weight: 40 Kg
-
Max. Panel Size: X infinite, Y 1,250, Z 50 mm
-
Min. Panel Size: X 270, Y 150 (70 opt), Z 3 mm
-
Number of controlled axes: 5
-
Panel Feeding Spread: 25 m/min
-
Spindles Rotation Speed: 3,600 rpm
-
Saw Blade Rotation Speed: 7,000 rpm
-
Air pressure: 7 bar
-
Diameter of the dust extraction: 2x 120 mm diameter + 1x 50 mm diameter
-
Suction System Data: (2,700 mc/hour) - (30 m/s)
-
Max Drilling Depth in Horizontal on X and Y axis: 5X 50 mm - Y 30 mm
-
Max Drilling Depth in Vertical: 43 mm
-
Max Horizontal diameter of the tools: 12 mm
-
Max Vertical Diameter of the tools: 35 mm
-
Motor Power Drilling Head: 1,7 Kw
-
Total Power: 7 Kw
-
Air Consumption: 750 nlt/min
