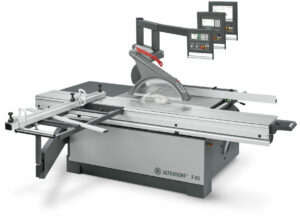

Introducing the Altendorf F45
Our Price
From £17,813.00
+ VAT
Availability
Available Now
Available from only £83.93 per week on our competitive finance packages.
For sales and advice call today!
01455 840224
A masterpiece of power, precision and control
Then Altendorf F45 panel saw is the perfect choice for professional users looking for a reliable table saw offering outstanding performance. It is the masterpiece in technology and design, by the world market leader for sliding table saws, made in Germany.
The Altendorf F45's new machine frame combines unprecedented torsion resistance with extremely low levels of vibration, while the smooth front and clear foot space on the floor enable you to operate closer to the machine and the work piece. The famously smooth-running sliding table, featuring many new design tweaks, remains the undisputed benchmark for precision cutting.
At R&J Machinery, we have developed a great understanding of the Altendorf F45 allowing us and our team of highly skilled Altendorf-trained engineers to know and understand what our customers require. We can offer the full package from backup, to our large in house stock of spare parts, to over-the-phone technical help and advice. Please call 01455 840224 to discuss your requirements.
Altendorf F45 Base Featured
The Altendorf F45 panel saw is packed with great features and a high specification in its base configuration, which includes the following:
-
Motorised rise/fall and tilt adjustment (0–46°) for main saw blade with automatic cutting height correction when saw blade tilted
-

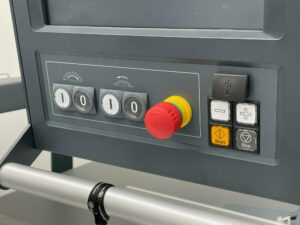

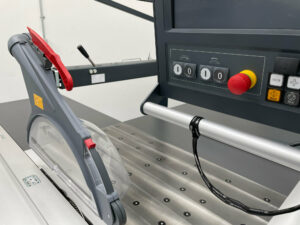

Eye-level control unit, swivelling
-
Sliding table, table length of 3000 mm
-
Rip fence with manual adjustment using graduated scale, includes fine adjustment and cutting width of 1000 mm
-
Crosscut fence with fixed 90° angle, manual adjustment using graduated scale up to 3200 mm
-
Maximum saw blade projection of 150 mm, maximum saw blade diameter of 450 mm
-
Motor rating 4 kW (5.5 HP), single speed (4000 rpm)
-
AKE tool clamping system for the main saw blade
Downloads

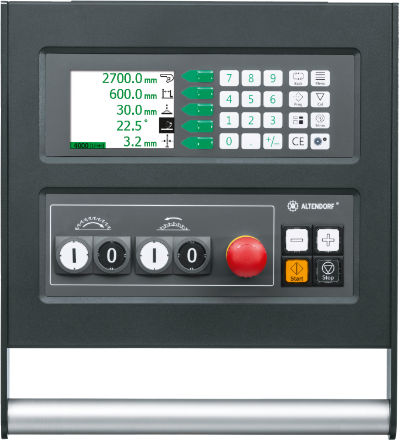

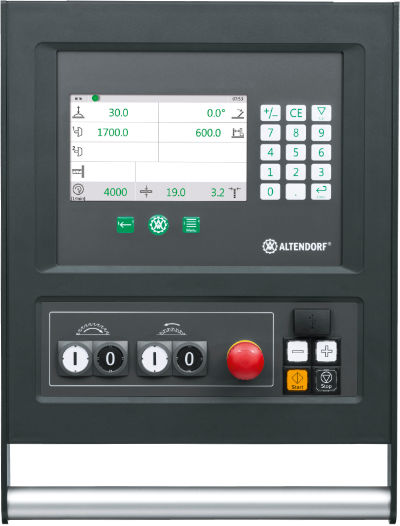

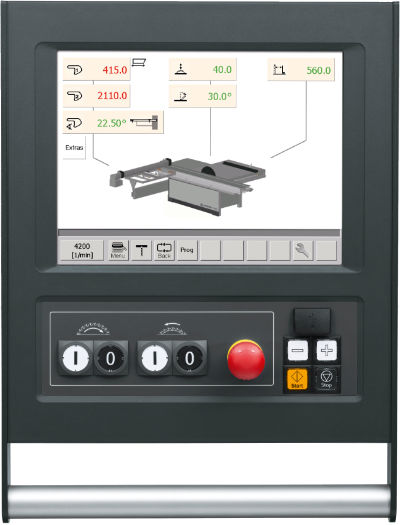

The World's Favourite Panel Saw, Three Choices of Control Unit
A unique service for the Altendorf F45 is the ability to choose from three different control units, each offering tailored solutions to meet your individual requirements. Whether beginner, advanced or professional, and whether Pro Drive, Evo Drive or Elmo Drive, with an Altendorf F45 you are well equipped for the task at hand.
Saw Units + Options
Choose between one-way and two-way tilting saw units.
One-Way Tilt
Drives for one-way tilt with manual speed adjustment
The motors are manufactured specially to Altendorf’s specifications and have been optimized for use in sliding table saws. They provide up to 20% more torque than conventional electric motors with no increase in power consumption. The three-speed units operate at 3,000, 4,000 and 5,000 rpm and are adjusted manually.
| M51100 | 5.5kW (7.5HP) three speeds |
|---|---|
| M51101 | 7.5kW (10HP) three speeds |
| M51102 | 11kW (15HP) three speeds |
VARIO drive for one-way tilt
This drive offers infinitely variable speed control between 2,000 and 6,000rpm. Matching speed precisely to the material increases not just cutting quality, but also the service life of your saw blades, which, in turn, helps to reduce your costs.
| M51103 | 5.5kW (7.5HP) |
|---|---|
| M51104 | 7.5kW (10HP) |
Extended cutting height for one-way tilt
This option is fitted out for one- way tilt with a large extraction hood for a maximum saw blade diameter of 550mm and a saw blade projection of no greater than 204mm. The maximum saw blade diameter when used in combination with a scorer unit is 500mm, which corresponds to a saw blade projection of 179mm.
| M64080 | Only in combination with a motor rated at least 5.5kW (7.5HP). |
|---|
Two-Way Tilt
Saw unit tilts up to 46° to either side
The ability to tilt the saw unit to either side makes the F45 an even more versatile cutting machine. There is no need to adjust the extraction hood either, as it simply follows the saw unit. The entire movement, from full tilt one way to full tilt the other, takes just 12 seconds. One of the main applications for the two-way tilt function is the sawing of internal mitres, which can be done easily and safely using the crosscut fence. Just as straightforward are simple bevel cuts and compound mitres. VARIO infinitely variable speed control (2,000 – 5,000 rpm) makes operation even faster and more user-friendly, while the extremely compact design of the synchronous motor allows it to be linked to the saw shaft with a rigid connection, eliminating at a stroke the potential for faults associated with indirect belt-based linkages. The tilt adjustment feature, which is firmly anchored at the centre of mass of the saw unit, has already proven its mettle 10,000 times over in the one-way tilting F45: in short, it simply does not twist! The maintenance-free tilt quadrants use a tongue and groove connection system with automatic lubrication.
| M18500 | 5kW (6.8HP) |
|---|---|
| M51059 | Additional charge for 6.5kW (8.8HP) |
Extended cutting height for two-way tilt
The maximum saw blade projection of 204mm is achieved with a saw blade diameter of 550mm, also with a scorer unit. We recommend you to choose the more powerful 6.5kW (8.8HP) motor.
| M64079 |
|---|
Sliding Tables
A range of extensions and options to customise your sliding table.
Sliding Table Length
The Altendorf sliding table is renowned for its smooth, precise running. The large dumbbell rollers guide the moving table with absolute precision between the hard-chromed guide bars. Robust though it is, the table responds to even a light touch, gliding smoothly and securely as if on rails. And it retains this ease of movement even after decades of hard work, dust and dirt.
| M34201 | 2,250mm Table Length |
|---|---|
| Standard | 3,000mm Table Length |
| M34204 | 3,200mm Table Length |
| M34205 | 3,400mm Table Length |
| M34206 | 3,800mm Table Length, with floor support |
| M34207 | 4,300mm Table Length, with floor support |
| M34208 | 5,000mm Table Length, with floor support |
Fixed Rear Table Extension
840mm is the standard fitted specification, with larger extensions available as optional choice.
| Standard | 840mm Table Extension |
|---|---|
| M41011 | 1,200mm table Extension |
| M41012 | 1,600mm table Extension |
| M41013 | 2,000mm table Extension |

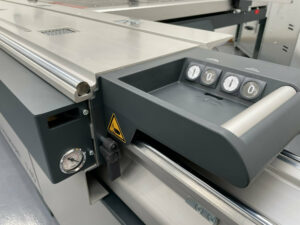

On/off switches on sliding table?
Please note that the on/off switch is not available in conjuction with the TIP-SERVO-DRIVE (below).
| M37003 | On/off switches on sliding table |
|---|
TIP-SERVO-DRIVE
The motorised servo drive for the sliding table moves even the heaviest of workpieces back and forth easily during cutting, taking the physical strain off your body – and your back in particular. The electronic sensor control handle responds to the lightest of touches, so you can maintain an upright and relaxed posture throughout the cutting operation. The TIP-SERVO-DRIVE cannot be used in combination with the on/off switches on sliding table option or the vacuum clamping in sliding table option.
| M35201 | 2,250mm Table Length |
|---|---|
| M35203 | 3,000mm Table Length |
| M35204 | 3,200mm Table Length |
| M35205 | 3,400mm Table Length |
| M35206 | 3,800mm Table Length |
| M35207 | 4,300mm Table Length |
| M35208 | 5,000mm Table Length |
Scorer Units
Not included as standard, two or three-axis scorer units and supplemental features are available to add to your specification.
Two-Axis Scorer Unit
Two-Axis Scorer Unit
Comes with electronic vertical and lateral adjustment, programmable scorer blade height, rapid deploy and retract and 0.75 kW (1 HP) motor (8,200 rpm). For retrofitting only to machines designed to accommodate a scorer unit.
| M24030 | One-Way Tilt |
|---|---|
| M24034 | Two-Way Tilt |
| M24038 | Scorer-Unit Ready |
RAPIDO Scoring System
The scorer ensures chip-free undersides when working with laminated panels. The RAPIDO system makes adjusting the cutting width straightforward and enables this step to be completed in no more than three minutes. This can save you up to 30 minutes as compared with conventional scorer systems because it does away with the tedious process of mounting two-part scorer blades with spacer disks entirely. Adjustment is continuous and precise, so the RAPIDO can be fine-tuned to match any main blade. Range: 2.8 – 3.8mm.
| M24031 | One-Way Tilt, ∅ = 120mm |
|---|---|
| M24035 | Two-Way Tilt, ∅ = 180mm |
LED Illumination
Particularly energy-efficient LEDs render the hazard area around the scorer highly visible.
| M24037 | LED Illumination |
|---|
Three-Axis Scorer Unit
Three-Axis Scorer Unit (RAPIDO Plus)
With motorised vertical, lateral and cutting width adjustment, including saw blade, programmable scorer blade height, rapid deploy and retract, saw blade width display and 0.75 kW (1 HP) motor (8,200 rpm). For retrofitting only to scorer-unit-ready machines.
| M24032 | One-Way Tilt |
|---|---|
| M24036 | Two-Way Tilt |
| M24038 | Scorer-Unit Ready |
LED Illumination
Particularly energy-efficient LEDs render the hazard area around the scorer highly visible.
| M24037 | LED Illumination |
|---|
Right of the Blade
There are three rip fence choices available for the Altendorf F45, each offering unsurpassed precision.
Manual Rip Fence
Manual Rip Fence with Fine Adjustment
Setting the fence is easy; the precision fine adjust- ment makes for great accuracy. The hard chrome-plated round bar system ensures the fence moves smoothly. The rip fence drops down clear of the machine table level to free up extra space for dividing large panels.
| M44420 | 800mm Cutting Width |
|---|---|
| M44421 | 1,000mm Cutting Width |
| M44422 | 1,300mm Cutting Width |
| M44423 | 1,600mm Cutting Width |
DIGIT X
Rip Fence with DIGIT X
Digital cutting width display for the rip fence with manual fine ad- justment. This electronic measuring system ensures rapid and precise positioning of the rip fence. Recurring dimensions can be reproduced exactly and checked on the DIGIT X display. The correction for the rip fence position is shown digitally on the machine control unit's display when working with the saw blade tilted. The system is not subject to wear and is unaffected by dust. Dimensions are corrected automatically when the fence is switched between the upright and the flat position.
| M44430 | 800mm Cutting Width |
|---|---|
| M44431 | 1,000mm Cutting Width |
| M44433 | 1,300mm Cutting Width |
| M44434 | 1,600mm Cutting Width |
CNC Rip Fence
CNC Rip Fence
The CNC rip fence has a traverse speed of 250 mm/sec. and an accuracy of +/–1/10 mm. The high-precision five-point recirculating ball screw system is low maintenance and, along with the motor, is well protected by its integration into the aluminium profile. The fence detects its position automatically, especially in the danger area around the saw blade, and has an emergency cut-out to prevent the risk of crushing. Dimensions are corrected automatically when the fence is switched between the upright and the flat position or when working with the saw blade tilted.
| M44440 | 800mm Cutting Width |
|---|---|
| M44441 | 1,000mm Cutting Width |
| M44443 | 1,300mm Cutting Width |
| M44444 | 1,600mm Cutting Width |
Left of the Blade
A selection of fences and supplemental options to choose from.
Manual Crosscut Fence / Fixed 90° Angle
Manual Crosscut Fence / Fixed 90° Angle
The motors are manufactured specially to Altendorf’s specifications and have been optimized for use in sliding table saws. They provide up to 20% more torque than conventional electric motors with no increase in power consumption. The three-speed units operate at 3,000, 4,000 and 5,000 rpm and are adjusted manually.
| M44400 | Stops to 2,500mm |
|---|---|
| M44402 | Stops to 3,200mm |
Manual Crosscut Fence with DIGIT L
For 1/10mm accuracy when setting the length dimension. The display shows all stop settings applied. The central measuring and display unit calibrates the entire system in one operation. Two flip stops with fine adjustment, two batteries and a charger are included.
| M44401 | DIGIT L: Stops to 2,500mm |
|---|---|
| M44403 | DIGIT L: Stops to 3,200mm |
Additional Cross Slide with Floor Support Roller
This accessory is well worth considering if you plan to be sizing large and heavy workpieces of up to 250 kg. Recommended floor rail: flat steel, 10 x 60 mm (length = 2x table length + 500 mm). The floor rail is to be provided by the customer.
| M64056 | Cross Slide with Floor Support Roller |
|---|
Pull-Out Cross Slide Extension
This option makes it easier to cut longer/wider workpieces and increases the width of the support area for the manual crosscut fence.
| M64085 | Pull-Out Cross Slide Extension |
|---|
Crosscut-Mitre Fence
Crosscut-Mitre Fence
This patented Altendorf fence, with integral length compensation, can make both square cuts and mitre cuts. The mitre angle can be adjusted continuously over a range of 49° with a graduated scale and the robust, free-sliding zero-play flip stops can be positioned individually at any distance up to a maximum of 3,500 mm. The outer stop docks into the roller-stabilised telescopic extension for distances longer than about 1,700 mm. When cutting mitres, length compensation means measurements to the stops are accurate whatever the angle. Simply slide the fence to the desired angle, line up the pointer with the same angle on the length compensation scale, then set the flip stop to the length required.
| M44404 | Crosscut-Mitre Fence |
|---|
Crosscut-Mitre Fence with DIGIT L
Offering 1/10mm accuracy when setting the length dimension. The display shows all stop settings applied. The central measuring and display unit calibrates the entire system in one operation. High-capacity batteries and a charger are included.
| M44406 | DIGIT L: Stops to 3,200mm |
|---|
Crosscut-Mitre Fence with DIGIT LD
Offering 1/10mm accuracy when setting the length dimension. The display shows all stop settings applied. The central measuring and display unit calibrates the entire system in one operation. and displays angles in digital format, enabling a level of precision of ±1/100°. The length dimension is calculated automatically as a function of the mitre angle. Two flip stops with fine adjustment, two batteries and a charger are included.
| M44408 | DIGIT LD: Stops to 3,200mm |
|---|
Pull-Out Cross Slide Extension
This option makes it easier to cut longer/wider workpieces and increases the width of the support area for the manual crosscut fence.
| M64085 | Pull-Out Cross Slide Extension |
|---|
Parallelogram Cross Slide
Parallelogram Cross Slide (PQS)
Changing was yesterday! The fence rule arranged in the centre allows the workpiece to be positioned at the front and the rear. The two adjusta- ble supports ensure secure support here. Not only is this unique, it is also quick and easy. Features a robust 90° locking mechanism that ensures the right-angle position is absolutely reproducible. The fence can be angled by up to 47° in either direction. The integrated digital display shows the set angle with an accuracy of 1/100° for optimal precision. Also included is length compensation, which is simply taken from a scale when the fence is angled. Two flip stops are included.
| M44485 | Stops to 3,500mm |
|---|
Parallelogram Cross Slide (PQS) with DIGIT LD
For 1/10mm accuracy when setting the length dimension. The display shows all stop settings applied. The central measuring and display unit calibrates the entire system in one operation and angles are displayed in digital format, enabling a level of precision of ±1/100°. The length dimension is calculated automatically as a function of the mitre angle. Two flip stops with fine adjustment, two batteries and a charger are included.
| M44412 | DIGIT LD: Stops to 3,200mm (moveable) |
|---|
Parallelogram Cross Slide (PQS UNO Flex)
Changing was yesterday! The fence rule arranged in the centre allows the workpiece to be positioned at the front and the rear. The two adjustable supports ensure secure support here. Not only is this unique, it is also quick and easy. In combination with the motorised flip stops this stop system unites flexibility and productivity in a total special way. The length compensation is automatic; the saw blade’s cutting angle and the saw blade thickness are also considered. The narrow design with centre-arranged fence rule means the material can be positioned at the front and the rear without having to change the rule. The adjustable supports enable an individually shaped support area. The system works accurately and wear-free. The flip stops move motorised after the dimensions are entered on the machine’s control panel. The absolute measuring system for length compensation and angle measurement means all values when changing saw blade thickness, cutting and/or plane angles are integrated into the position correction. After pressing the “Start” button the flip stops are repositioned. Not compatible with the F45 ProDrive control unit.
| M44484 | Parallelogram Cross Slide UNO Flex |
|---|
Pull-Out Cross Slide Extension
This option makes it easier to cut longer/wider workpieces and increases the width of the support area for the manual crosscut fence.
| M64086 | Pull-Out Cross Slide Extension |
|---|
CNC Crosscut Fence
CNC Crosscut Fence UNO 90
The CNC crosscut fence UNO 90, which is fixed in the 90° position, makes it possible to complete both square cuts and mitre cuts with great precision. The flip stop has a maximum travel of 1,900mm. If greater length is required, the extension supplied can be fitted manually to give a maximum dimension of 2,900mm.
| M44413 | UNO 90: Stops to 2,900mm |
|---|
CNC Crosscut Fence DUO 90
This fence features two CNC stops with a maximum travel of 3,500mm. It is fixed in the 90° position. Workpieces can be positioned against either side of the fence. The CNC crosscut fence DUO 90 is not compatible with the F45 Pro Drive control unit.
| M44414 | DUO 90: Stops to 3,500mm |
|---|
CNC Crosscut-Mitre Fence DUO Flex
The DUO Flex fence can be angled manually by up to 47° for easy and convenient square cut and mitre cuts. It includes automatic length compensation and two motorised flip stops (travel to 3,500 mm). It is not necessary to lift the fence to switch between the front and rear positions on the cross slide. Workpieces can be positioned against either side of the fence, which makes it possible to complete compound mitres and mitre cuts at acute or obtuse angles in a single operation. The CNC crosscut fence DUO Flex is not compatible with the F45 Pro Drive control unit.
| M44415 | DUO FLEX: Stops to 3,500mm |
|---|
Cross Slide Extension
The cross slide extension makes it easier to saw wider/longer workpieces. Total extension to 650mm.
| M64085 | UNO 90 Cross Slide Extension (pull-out) |
|---|---|
| M64087 | DUO 90 Cross Slide Extension (fixed) |
| M64088 | Duo Flex Cross Slide Extension (pull-out) |
Additional Options
A range of mitre fences, clamps, supports and supplemental options to complete your Altendorf F45.
DUPLEX Double-Sided Mitre Fence
DUPLEX fences make it possible to make mitre cuts at any angle between 0 and 90° with speed and precision. At 45° a mitre cut can be made on both sides of the workpiece without mooving the fence. Dimensions are set using a magnifier, a measuring scale and a length compensation scale for frequently recurring angles. All DUPLEX fences can be positioned anywhere along the entire length of the sliding table.
| M64220 | Stops to 1,350mm |
|---|---|
| M64221 | Stops to 2,150mm |
DUPLEX D Double-Sided Mitre Fence
The DUPLEX D provides the same functionality as the DUPLEX plus a digital angle display that shows values to an accuracy of 1/100°. Digital angle display and analogue length scale for adjustment, integral length compensation for frequently recurring angles. Batteries included.
| M64222 | Stops to 1,350mm |
|---|---|
| M64223 | Stops to 2,150mm |
DUPLEX DD Double-Sided Mitre Fence
The DUPLEX DD, which has been patented worldwide, not only eliminates tedious calculations and measurement checking completely, but even removes the need for test cuts. Developed exclusively by Altendorf, the high-precision electronics in the DUPLEX DD calculate the length dimension as a function of the mitre angle on both sides of the fence and display both values digitally. Digital angle display and digital length display for adjustment, automatic length compensation. Batteries included.
| M64224 | Stops to 1,350mm |
|---|---|
| M64225 | Stops to 2,150mm |
Manual Quick-Action Clamp
The alternative to the pneumatic clamp. The manual quick-action clamp can be positioned on the sliding table easily and is equally easy to fix in place, ensuring the workpiece is reliably retained on the table and against the crosscut fence. It has a clamping height of up to 200mm and provides extra safety at very little extra cost.
| M64188 | Manual Quick-Action Clamp |
|---|

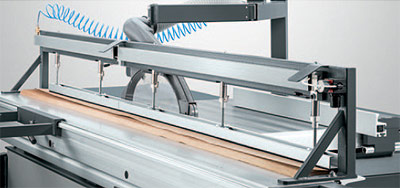

Pneumatic Quick-Action Clamp
This clamp secures the workpiece in place on the sliding table. Activated by radio remote control, the quick-action clamp exerts a clamping force of up to 1,000N to securely retain the workpiece against the crosscut fence. It can clamp workpieces up to 170 mm thick. Available with one or two clamping units. Pneumatic connection to be provided by customer (6 bar).
| M64091 | One Clamping Unit: Range 0 – 90mm |
|---|---|
| M64092 | Two Clamping Units: Range 0 – 90mm |
Laser Cutting Line Marker
The laser cutting line marker shows the cutting line clearly for all cut lengths, which is useful when trimming or cutting marked jobs such as steps. Use it to save both time and materials.
| M64066 | Laser Cutting Line Marker |
|---|
Air Cushion Table
The first air cushion table is now available as an optional feature for the F45. The compressed air unit operates on the right-hand side of the saw blade to make work at the rip fence easier. The air cushion reduces the frictional resistance between the material and the machine table by up to 80%, which not only makes handling heavy workpieces much easier, but also, being an essentially contact-free technology, greatly reduces the risk of the workpiece being scratched as it passes over the machine table.
| M64186 | Air Cushion Table |
|---|
Table Extension/Expansion with Air Cushion
With this addition to air cushion machine tables, the entire width and length of heavy and delicate workpieces are protected from scratching by an air cushion. The air supply to the machine is provided independently to add more flexibility.
| M41040 | 840mm Table Extension with Air Cushion |
|---|---|
| M41042 | 1,600mm Table Extension with Air Cushion |
| M41046 | 1,300mm Table Expansion with Air Cushion |
Toolbox
The practical toolbox is a closable container capable of holding up to six tool carriers (maximum saw blade diameter 550mm) ready for use. This option requires a minimum sliding table length of 3,000mm. The basic toolbox includes four saw blade carriers.
| M44453 | Toolbox |
|---|
STEG Support
The STEG second support makes sizing large panels more straightforward for the user.
| M44452 | STEG Support |
|---|

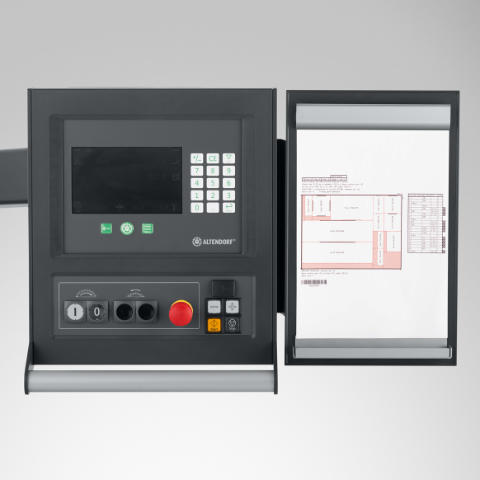

Clipboard
Mounted on the eye-level control panel, the clip board allows you to attach your cutting lists so you have your ongoing jobs in view at all times.
| M62003 | Clipboard |
|---|
Front Support Roller
The 300mm wide front support roller is particularly useful when cutting longer workpieces on the rip fence. It can be folded down through 90° in one movement to stow under the sliding table (minimum length 3,000mm) when not required.
| M44450 | Front Support Roller |
|---|

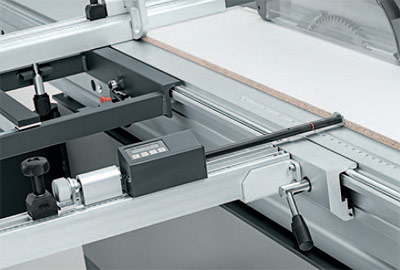

PALIN
Used in combination with the crosscut fence, the PALIN makes it possible to complete parallel and conical cuts in long, narrow workpieces with absolute accuracy. The measuring system butts against the side of the workpiece rather than the end, so no cutting length is lost and workpieces of differing lengths can quickly be cut exactly parallel without the PALIN having to be moved. The PALIN can be used as an additional workpiece support too if the measuring system is removed. Also available is the PALIN D model, which offers digital measurement display and fine adjustment.
| M64190 | PALIN, graduated scale for adjustment |
|---|---|
| M64191 | PALIN D, digital measurement display with fine adjustment, batteries included |

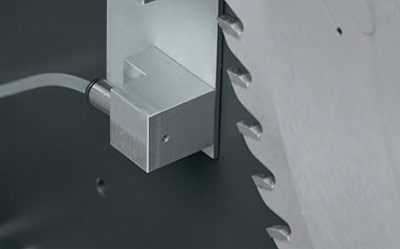

Coolant Spray Device
Use of a coolant spray device is recommended when working with plastics with a low melting point and for certain light metal alloys. Your Altendorf will cut nonferrous metals and plastics cleanly, with sharp contours, to within a tenth of a millimetre.
| M64067 | Coolant Spray Device |
|---|
