Casadei Busellato Libra 65
Our Price
£POA
Availability
Available Now
The price for this product is on application only. Please contact us to discuss the options available to you.
For sales and advice call today!
01455 840224

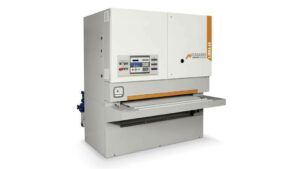

The Libra 65 is a machine designed for the large industry which requires a high quality finish and high production rates.
Benefits of Libra 65
Reliability: The 2620 mm belt length allows an efficient cooling, thereby prolonging the life of the belt, and guarantees a perfect finish.
Flexibility: The flexibility in machine configuration is guaranteed by the wide range of options available which allows the machine to be adapted to suit the various machining requirements. Among the options available for the LIBRA 65 there are the super-finishing unit, the segments platens, the planer unit to sand solid wood with large stock removal and the worktable with a fixed height from the floor to insert the machine in a production line.
Sturdiness: A very rigid machine frame with tubular structure made using a robotic welding system.
Casadei Busellato Libra 65 Specification
| Useful working width | 1,350 mm |
|---|---|
| Working height | 4 ÷ 170 mm |
| Width sanding belt | 1,370 mm |
| Length sanding belt | 2,620 mm |
| 2 feed speeds | 4.5 - 9 m/min |
| Power main motor | 15 kW (20 Hp) |
| Power feeding motor with 2 operating units | 0.45 / 0.8 kW (0.6 / 1.1 HP) |
| Power feeding motor with 3 operating units | 0.6 / 3 kW (1.8 / 1.7 HP) |
Downloads
Measuring and adjusting is now a lot easier!
Accurately measuring material and subsequently setting manual length stops requires time and experience. Setting errors are not uncommon and they result in a loss of time and material. With the TigerStop this is a thing of the past.
These are the advantages
Work faster
With the TigerStop you increase productivity. The automatic system allows a much faster processing of your long or heavy material. You key in the size or saw list and the TigerStop automatically moves to the correct position and performs the operation.
Higher precision
The TigerStop positions quickly to the desired length with repeat accuracy of +/- 0.1 mm, every time. Thanks to this precision, less post- processing is required and your tape measure or manual stop are unnecessary!
Easy to use
The TigerStop is particularly user-friendly. The simple operation speaks for itself, so you can get started quickly. Where you used to determine the length with a manual stop or tape measure, the TigerStop now does this very simply and quickly.
It is no longer necessary to adjust the machine, which saves you money.
What can you do with the TigerStop?
The TigerStop has a large number of standard functionalities and is easy to mount on existing machines used in the wood, aluminium, metal and plastic industries.
Do you work with heavy or very long materials?The HeavyDuty is the heavy version of the TigerStop and offers a load capacity of no less than 600 kg and 24 meters! Just like the TigerStop, it enables fast and accurate positioning time and time again.
Easily measure and adjust when processing heavy or long materials!
These are the advantages
Work faster
With the HeavyDuty you increase productivity. The automatic system allows you to process your long or heavy materials much faster. You key in the size or saw list and the HeavyDuty automatically moves to the correct position and performs the operation.
Higher precision
The HeavyDuty quickly positions your long or heavy material to the desired length with a repeat accuracy of +/- 0.2 mm, every time. Thanks to this precision, less post-processing is required and your tape measure and manual stop are unnecessary!
Easy to use
The HeavyDuty is particularly user-friendly. The simple operation speaks for itself, so you can get started quickly. A manual stop or tape measure is no longer necessary, because the HeavyDuty determines the length easily and quickly.
Do you work with heavy or very long materials? Then setting the stop bar is often complex. Moreover, the chance of errors is large. The HeavyDuty solves these problems!
What can you do with the HeavyDuty?The HeavyDuty has a large number of standard functionalities and is easy to mount on existing machines in the wood, aluminium, metal and plastic industries. This heavier variant of the traditional TigerStop is specially designed for the machining of pipes, raw materials and heavy loads up to 600 kg.
The automatic push-up saw for fast and accurate sawing!
Do you spend a lot of time manually cutting and processing your material and do you want to automate and optimize your sawing work? Then choose the TigerSaw 1000.
The TigerSaw 1000 is a fully automatic push-up saw with which you achieve a high return with a limited investment. Thanks to the ease of use, you increase the productivity of your work considerably. The push-up saw can handle both bundles and single pieces. The optimization software determines the most favourable layout for your saw list. With the optional error marking you can easily cut out defects. This means you are always assured of an optimum yield from your material!
How does the TigerSaw 1000 work?The TigerSaw 1000 replaces manual measurement and sawing. You simply and quickly enter the saw list with the desired sizes or you download the saw list. Then load the material and press the start button. The TigerSaw 1000 pushes the material and automatically cuts it to the right length. Of course you can also easily shorten a few pieces in between.
These are the advantages
Work easily and safely
At the front of the machine is the control panel, which employees can easily reach and set. The fully enclosed machine makes a safe working method possible.
Optimisation software
The software supplied as standard ensures optimum yield from your sawing lists. With this software, the machine itself determines the best cutting order for the parts on your saw list, so that your material is used optimally.
Adjustable cutting range
If you always have small dimensions, you can reduce the cutting range of the machine and thus speed up the cutting process even further.
Advanced dust extraction
This advanced design ensures effective dust extraction. This gives you a cleaner cutting space.
For fast and accurate cutting of non-ferrous metals and plastics
Do you spend a lot of time manually cutting and processing your non-ferrous material (such as aluminium) and do you want to automate and optimize your sawing work? Then choose the TigerSaw 2000.
The TigerSaw2000 is a fully automatic sawing system with which you achieve a high return with a limited investment. The automatic, constant operation of this machine increases the productivity of your work considerably. The machine can handle both bundles and single pieces. The innovative cooling spray follows the saw blade and improves the cutting quality. In addition, the optimization software calculates the most favourable layout of your saw list. This means you are always assured of the highest possible yield from your material!
How does the TigerSaw 2000 work?The TigerSaw 2000 is ideal for processing large volumes. You simply and quickly enter the saw list with the desired sizes or you download the saw list. Then load the material and press the start button. The TigerSaw2000 pushes the material and automatically cuts it to the right length. Of course you can also easily shorten a few pieces in between.
What can you do with the TigerSaw 2000?The TigerSaw 2000 has various functionalities and is suitable for sawing and processing all types of non-ferrous metal.
Functionalities:
- Adjustable cutting range
- Cooling spray
- Optimisation software
- Bundle processing
- Easily search for faults with a smart connection panel
- Download material list
- Pushing capacity with the TigerStop of up to 80 kg
- TigerStop Heavy Duty pushes up to 600 kg and up to 24 metres
These are the advantages
Productivity-enhancing software
The TigerSaw 2000 is particularly suitable for processing large quantities of materials. The software solution of this machine quickly connects to almost any drawing program. That way you can quickly and easily load parts lists, process material and print customized information directly on finished parts.
Innovative, cooling spray
The TigerSaw2000 uses an innovative cooling spray that follows the saw blade. This state-of- the-art technology provides a beautifully clean cut and a saw blade that lasts longer.
Adjustable cutting range
If you always have small dimensions, you can reduce the cutting range of the machine and thus further speed up the cutting process.
A simple and safe way to work
The control panel is located on the front of the machine, which employees can easily reach and set. The fully enclosed machine allows a safe working method.
Automates your length stops quickly and accurately
Is it too time-consuming to set up manual stops and are you looking for a way to make your work more productive and accurate? The SawGear from TigerStop offers the solution! This automatic length stop positions easily and quickly and also makes complex miter sawing possible.
What can you do with the SawGear?
The SawGear has various functions and can be used in the wood, aluminium, metal and plastic industries.
Functionalities:
- Adjustable cutting range
- Cooling spray
- Optimisation software
- Bundle processing
- Easily search for faults with a smart connection panel
- Download material list
- Pushing capacity with the TigerStop of up to 80 kg
- TigerStop Heavy Duty pushes up to 600 kg and up to 24 metres
These are the advantages
Save time
You can increase your productivity considerably with the SawGear's automated system. The machine is easy to use and positions your material consistently and precisely. This will quickly reduce your processing times by 30% because you will have to walk back and forth to adjust the machine a lot less. After all, the measuring work and the setting of the stop are done automatically.
Work accurately
With the SawGear you always process your material exactly to the right size. With a repeat accuracy of 0.2 mm, you are assured of dimensionally consistent work, without exception. In addition, the SawGear with a memory of 10 lists is extremely suitable for carrying out repeat orders quickly and efficiently.
Easy to assemble on your existing machines
The SawGear is so quick and easy to install that you can get started in a matter of minutes. The stop can be installed on the left or right. You can choose a smooth table or a rolling table, but the SawGear can also easily be placed on your existing table.
Automates your length stops quickly and accurately, now with touch screen control
Add a TigerStop SawGear Touch on to your new or existing machine tool. Type in your desired measurement, place your material, and press start. Say goodbye to your tape measure. It's that simple.
Zero Set Up Time
Do away with "measure twice, cut once". Stop relying on tape measures, manual stop blocks, and clamps in your manufacturing process.
Easy Upgrade PathSimply swap out your old SawGear power head with the NEW SawGear Touch power head to access its amazing features and functionality!
100% AccuracyThe parts you cut today will be as accurate as the parts you cut next week, next month, and next year.
No More ReworkQuality control starts with SawGear Touch by TigerStop.
Increased Productivity
Keep your operators in the money making zone, cycling your saw, not walking back and forth measuring and marking material, double checking measurements, or worse, performing rework.
Easy to OperateAny operator can be trained to use a SawGear Touch to position material in under 10 minutes. A novice can learn to hang crown molding, trim, or baseboard, in less than 30 minutes!
Improved YieldsRaw material costs are rising. Using a SawGear Touch maximises yields and adds profits to your bottom line.
TigerAngle 3D effortlessly cuts all angles when processing wood, aluminium and plastic
Do you spend a lot of time on complex mitre sawing and do you want to speed up the sawing process? Do you feel that too many sawing errors are being made or that you have to throw away material unnecessarily? If so, then the TigerAngle 3D is the solution for you.
These are the advantages
Easy and fast
Enter the parts and angles and the saw will move to the correct position and ensure that the parts are cut with utmost precision. Our customers - without exception - experience a significant time savings when compared against conventional sawing.
Work efficiently
The TigerAngle is equipped with intelligent BeamWorks software. This software ensures that parts are cleverly arranged, placed or rotated. This makes cutting angles simple, efficient and precise!
Prevent repair work
The BeamWorks software controls your sawing process, preventing errors and expensive repair work. The TigerStop positions quickly to the desired length, with a repeat accuracy of +/- 0.3mm. Thanks to this precision, less post-processing is required and every employee becomes a professional.
How does the TigerAngle work?
The TigerAngle is a radial saw with automated angle adjustment. Sawing at angles used to take a lot of setup time and was not accurate, but is now a lot easier.
The TigerAngle can be supplied as desired with a controller for the swivel and/or rear corner. The complete sawing machine is custom-made and can be equipped with BeamWorks software and the TigerStop, for example, with which you can saw parts with the highest precision!
