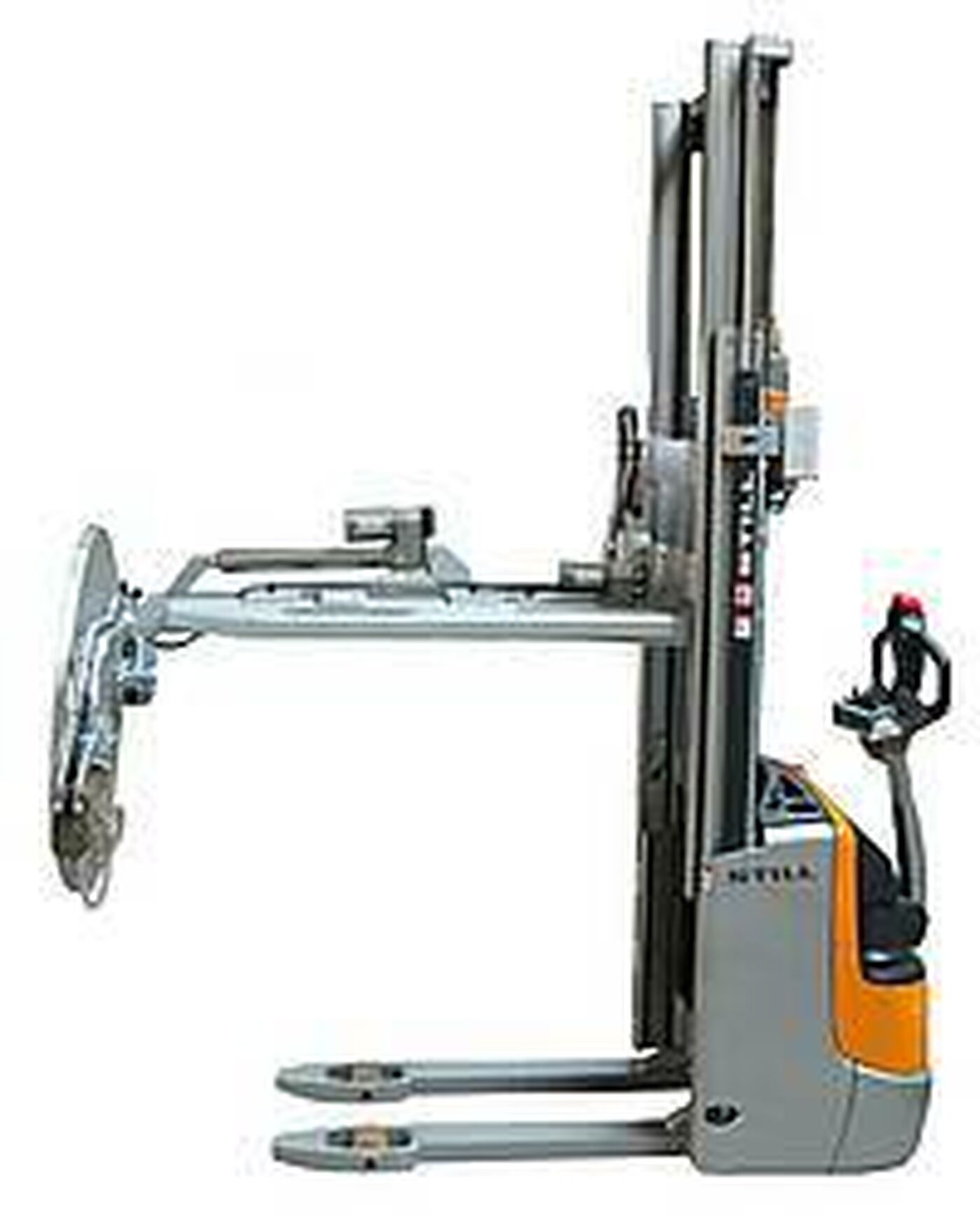

Barbaric B10A Indoor Manipulator

About the Barbaric B10A Indoor Manipulator

A modern non working area bounded production process needs mobile handling systems to carry out installation work and transport by only one step.

Developed for assembly of doors and windows as well for sealing work directly at the workpiece and loading into a container.

Barbaric B10A Indoor Manipulator Features

Tick bullet point Used for manipulation of plates and all kinds of piece goods
Tick bullet point The indoor manipulator is equipped with a rotation and tilting system
Tick bullet point Pick up of load by suction cups, special grab or hook
Tick bullet point Control of drive movement by the pole switch
Tick bullet point Braking during drive movement by release of drive control switch
Tick bullet point Speed of lifting and lowering can be regulated exactly by keystroke
Tick bullet point The manipulator is controlled by hand switch for hydraulic and vacuum system
Tick bullet point Basic equipment with corresponding safety system

Barbaric B10A Indoor Manipulator Options

Tick bullet point Safe working load 500Kg
Tick bullet point Tilting range 180°
Tick bullet point Movement of load forward and back approx. 350mm
Tick bullet point Movement of load across to fork approx. 200mm
Tick bullet point Design for bent glass plates with radius from 600mm

Barbaric B10A Indoor Manipulator Specification

Safe working load 300Kg
Rotation range 90°
Tilting range 180°
Lifting speed 6 m/min
Lifting Height 2,5 m
Driving speed 6 km/h
