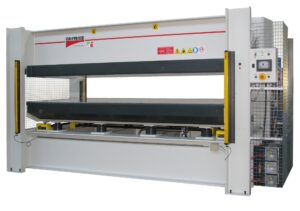

ITALPRESSE XL/8 3200 x 1600

Back arow icon Previous Page


About the ITALPRESSE XL/8 3200 x 1600

Italpresse are the market leaders in pressing and pressing technology, and sell the most presses of any manufacturer in Europe. The presses are constructed with welded beams and pressed frame, calculated with a The high structural safety factor frame, moving platen and fixed platen are all machined on CNC heavy milling machines, for the greatest accuracy.. The moving platen is a fabricated from ver thick steel beams to withstand the pressing tonnage with minimal deflection. Self-lubricating guides are diagonally placed, for excellent A flatness control. A Rack and pinion system assures constant parallelism of the moving platen during closing and opening.

The solidity and stiffness of XL construction are far superior to many other competitors’ presses because Italpresse manufactures every mechanical press component in its own shops to ensure complete control of quality in every phase of construction. Coupled with the best electrical and hydraulic components on the market, the XL is the benchmark of presses in its class. The standard range of Italpresse Presses (Model XL) are available in different sizes (2500mm x 1300mm to 4200mm x 1600mm), with different tonnage pressures (50 -190 Ton), and different types of Platen (PA - Assembled Platens, PS - solid steel drilled Paltens - PE Electrics Paltens), and Type of boiler if boiler required. (Machines can be provided without boiler).

Italpresse XL/8 3200 x 1600 Features

Tick bullet point Heating circuit made of special square section steel tubes, pressure tested and certified by the steel mill (Assembled Platens - PA)
Tick bullet point High quality steel sheets on both faces of the heating circuit grant platen surface uniformity and flatness
Tick bullet point Insulating sheets between heating platens and press structure to prevent heating dispersion
Tick bullet point The working surfaces of the platens are covered with a high grade aluminum sheet, stainless steel (optional) , or anti-stick forex/mylar belt (optional)
Tick bullet point Special pump, plant and valves for high temperature oil
Tick bullet point Electric boiler mounted on the press frame
Tick bullet point Safety thermostat
Tick bullet point Press cylinders made of special seamless tubes of thick steel.
Tick bullet point Welding done by a robot machine to control all welding parameters.
Tick bullet point CNC machining allows minimum tolerance for precision movement and long life of the seals.
Tick bullet point Pistons are machined out of a steel rod, CNC ground, polished and thickness chromed.
Tick bullet point Compact hydraulic power unit made in Germany (make: HAWE)
Tick bullet point Dual pump for high flow-low pressure and low flow-high pressure steps
Tick bullet point Automatic re-set of hydraulic pressure
Tick bullet point Up-stroking movement of bottom platen
Tick bullet point Key on/off switch
Tick bullet point Light-up pushbutton for emergency resetting (Run)
Tick bullet point Computerized control of the pressing functions
Tick bullet point Digital pressing timer with automatic opening and manual override
Tick bullet point Digital display and setting of working temperature
Tick bullet point Digital display and setting of the working pressure
Tick bullet point Exclusion of the left hand pair of hydraulic cylinders
Tick bullet point Adjustable opening stroke of press platen
Tick bullet point Digital timer for the morning start-up of the boiler
Tick bullet point Self-diagnostic with digital display on the general faults of the press
Tick bullet point Two-hand timed press closure push-button switches
Tick bullet point Perimeter e-stop safety cable and switch
Tick bullet point Mechanical platen lock to prevent movement
Tick bullet point Metal protective covers for potentially dangerous areas
Tick bullet point Metal protective covers for potentially dangerous areas
Tick bullet point Maintenance and User’s manual
Tick bullet point CE SAFETY STANDARDS
Tick bullet point VOLTAGE : 400 V - 50HZ

Italpresse XL/8 3200 x 1600 Options

Tick bullet point Press opening and piston stroke increase to mm. 650
Tick bullet point Exclusion of the right hand pair of hydraulic cylinders
Tick bullet point Electronic flatness control (EFC) with sensors
Tick bullet point TOUCH SCREEN CONTROL SYSTEM SIEMENS MOD. “TS 400” for the integral control of the pressing functions, to include;
Tick bullet point 4'' colour "Touch Screen" monitor
Tick bullet point Digital pressing timer with automatic opening and manual override
Tick bullet point Digital display and setting of working temperature
Tick bullet point Digital display and setting of the working pressure
Tick bullet point Adjustable opening stroke of press platen
Tick bullet point Selector to use 50% of the boiler power
Tick bullet point Digital timer for the morning start-up of the boiler
Tick bullet point Self-diagnostic with digital display on the general faults of the press
Tick bullet point Memory for saving and recalling 200 working programs
Tick bullet point Graphic display of recommended panels layout
Tick bullet point Size of Platens - 2.5m x 1.3m, 3.0m x 1.3m, 3.5m x 1.3m, 3.2m x 1.6m, 4.2m x 1.4m, 3.8m x 1.6m, 4.2m x 1.6m.
Tick bullet point Machine excluding the Boiler

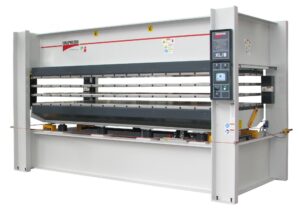

Tick bullet point Additional Platens for Multi - daylights

Product Documentation

File icon
Italpresse XL/8 3200 x 1600 Brochure PDF file

ITALPRESSE XL/8 3200 x 1600 Specification

HEATING PLATENS ---
Platen dimensions 3,200 x 1,600 mm (See options for alternative sizes)
Heated platens Nr. 2 (Multi daylight as an option)
Openings Nr. 1
Opening daylight 400 mm
Type of heating platens Assembled Steel (Solid steel as an option)
HEATING SYSTEM ---
Heating fluid Thermal oil
Heating system Electric
Max platen temperature 120 °C
Heating power 18 kW
HYDRAULIC CYLINDERS ---
Maximum thrust 120 ton
Thrust cylinders Nr .8
Thrust piston diameter 70 mm
Cylinder stroke 400 mm
Hydraulic system power 2.1 kW
