Italpresse Kube SP/1A

new machine

Machine Overview

Introducing the Italpresse Kube SP/1A

Italpress's carcass clamps, the 'Kube' and SP/1A are solidly built clamps much as as you expect from Italpresse.  with tubular steel sections for high levels of strength.

The pressure beams can be opened or closed indendantly, or together as required.

Italpresse produces a complete range of clamps for furniture. From the manual loading and unloading machine to the self-regulating through machine. The machines can be adapted to special processing thanks to a wide range of optional equipment.

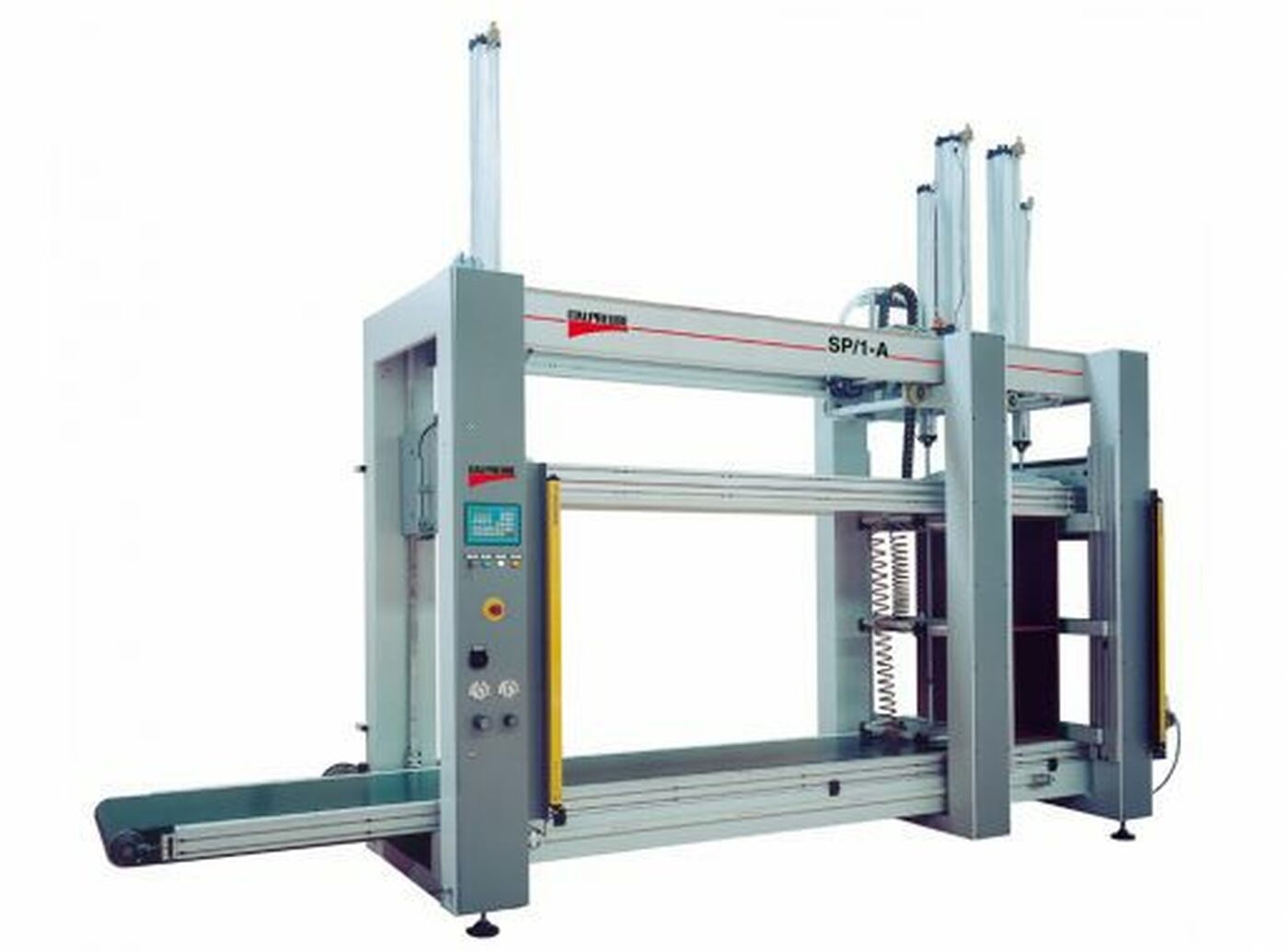

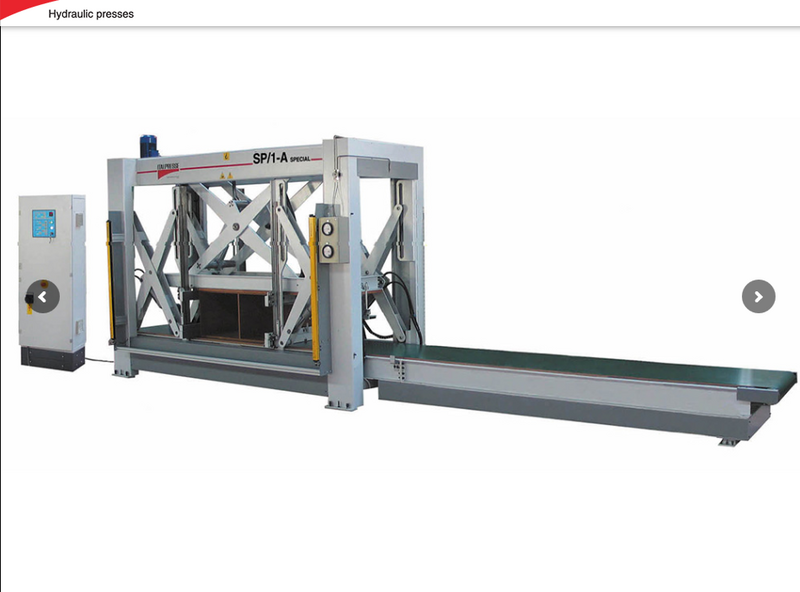

SP/1-A

Pneumatic feed through case clamp for high production. The SP1/A automatic feed-through pneumatic case clamp is designed for simplicity and reliability of operation.

The moving assemblies are guided by linear slides with toothed transmission belts maintaining precise movement. The case clamp is controlled by a PLC with selectable manual, semiautomatic, or automatic cycles. The reading of the cabinet dimensions is completely automatic without any input from the operator.

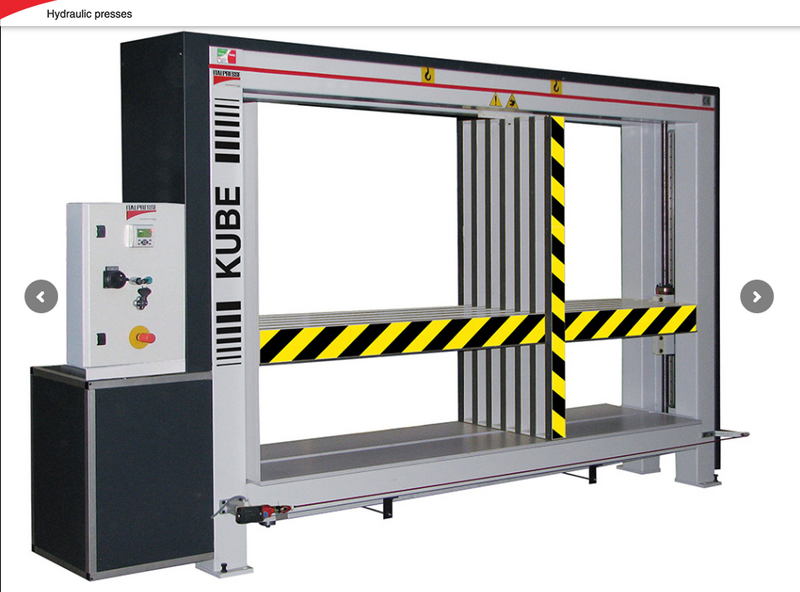

KUBE

Frame made of closed tubular steel sections which grant high stiffness
Pressure beams made of high thickness closed tubular steel sections with anti scratch contact surface
Pressure bar movement by means of electric motors
High resistance pressing plates (bottom and left), with anti scratch surfaces
Electric controls for opening/closing of the beams with independent or simultaneous movement
Timer to set press time, with automatic opening
Indipendent digital setting of horizontal and vertical pressure

Product Features

  • Frame made from rigid tubular steel
  • Anti-scratch coating applied to beams to protect cabinet surface
  • Pressure beams moved by electric motors
  • High resistance pressure plates (Bottom and Left),also with anti sctratch coating
  • Electronic controls for opening and closing of the beams with independant or simultaneous moevment.
  • Timer to set press time, with auto opening
  • Independant digital setting of the horizontal and vertical pressure.
  • CE Regs.

Product Options

  • Automatic version:
  • PLC Controlled working cycle
  • Fast approach and slow down before pressing contact.
  • Automatic pressing cycles can be selected according to cabinet junction type
  • Safety light barriers to the front, metal screens to the rear and back of machine.
