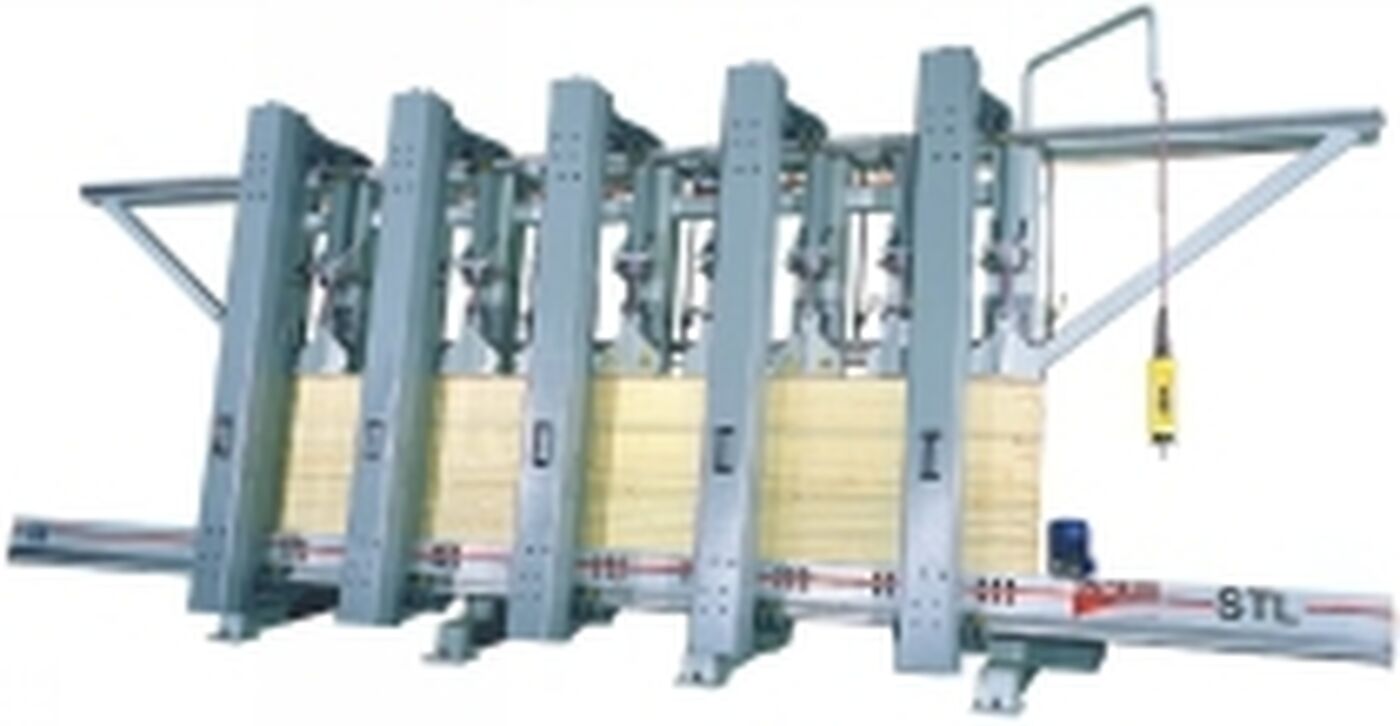

Italpresse Presses for Laminated Beams mod. STL/200/3500

The Italpresse Presses for Laminated Beams mod. STL is available in various specifications, for further details please contact R&J Machinery on 01455 840224.

Italpresse Presses for Laminated Beams mod. STL/200/3500 Features

Tick bullet point Vertical pressure adjustable by means of an electric contact pressure gauge
Tick bullet point Thrust cylinders manual exclusion
Tick bullet point Adjustable pneumatic horizontal pressure
Tick bullet point Pendant push button strip

Italpresse Presses for Laminated Beams mod. STL/200/3500 Options

Tick bullet point Additional opposition bar

Italpresse Presses for Laminated Beams mod. STL/200/3500 Specification

Max. useful length 3,500 mm
Max. useful width 200 mm
Min. width 1,000 mm
Max. height 100 mm
Min. height 600 mm
Thrust cylinders 8
Thrust cylinder diameter 80 / 50
Cylinders stroke 400 mm
Total thrust 60 ton
Opposition bars 4
