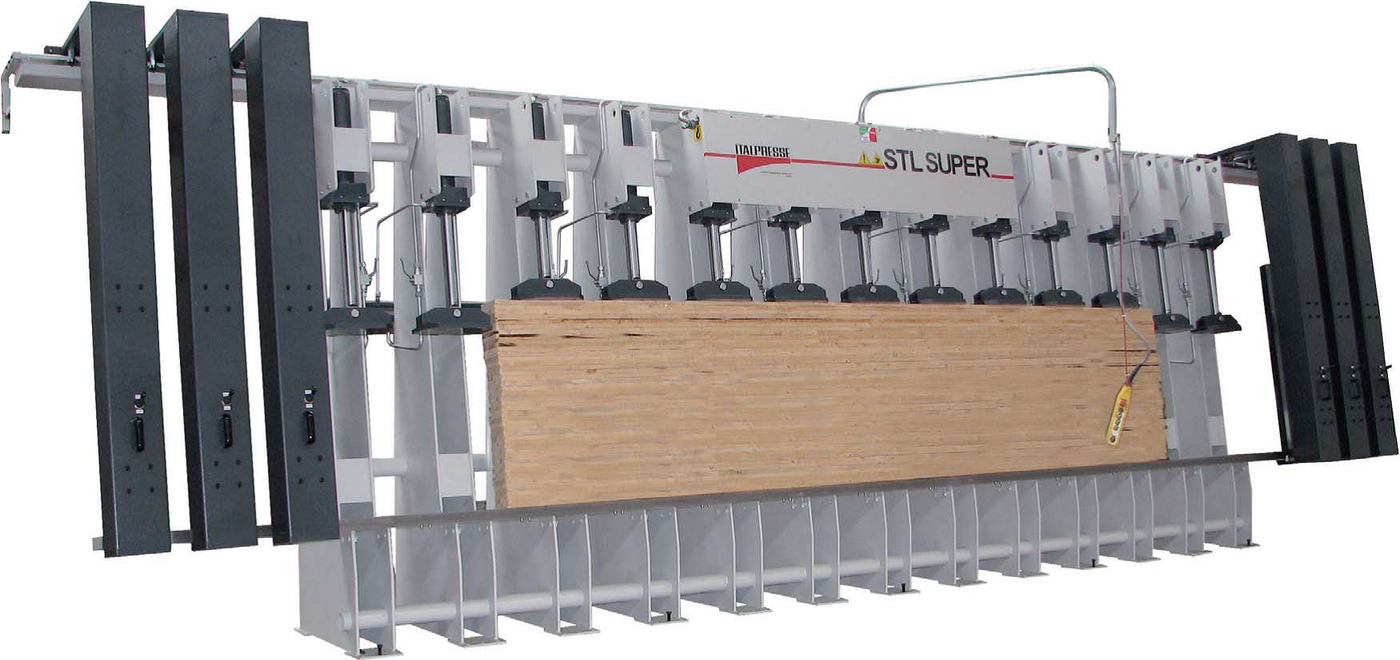

Italpresse Presses for Laminated Beams mod. STL Super
The Italpresse Presses for Laminated Beams mod. STL Super is availble in different specifications, please contact R&J Machinery on 01455 840224.
Italpresse Presses for Laminated Beams mod. STL Super Features
High thickness flame cut steel plate frame
Vertical pressure adjustable by means of an electric contact pressure gauge
Thrust cylinders manual exclusion
Adjustable pneumatic orizontal pressure
Pendant push button strip
Independant electronic control of the pressure for thress sectors
Italpresse Presses for Laminated Beams mod. STL Super Options
Additional opposition bar
Increase of the useful length with fixed module of 3000mm
Italpresse Presses for Laminated Beams mod. STL Super Specification
| Max useful length | 6500mm |
|---|---|
| Max useful width | 200mm |
| Min width | 50mm |
| Max height | 1250mm |
| Min height | 850mm |
| Thrust cylinders | 13 |
| Thrust cylinder diameter | 80/60 |
| Cylinder stroke | 400mm |
| Total thrust | 105 ton |
| Opposition bars | 6 |
