Striebig Standard



new machine



Machine Overview

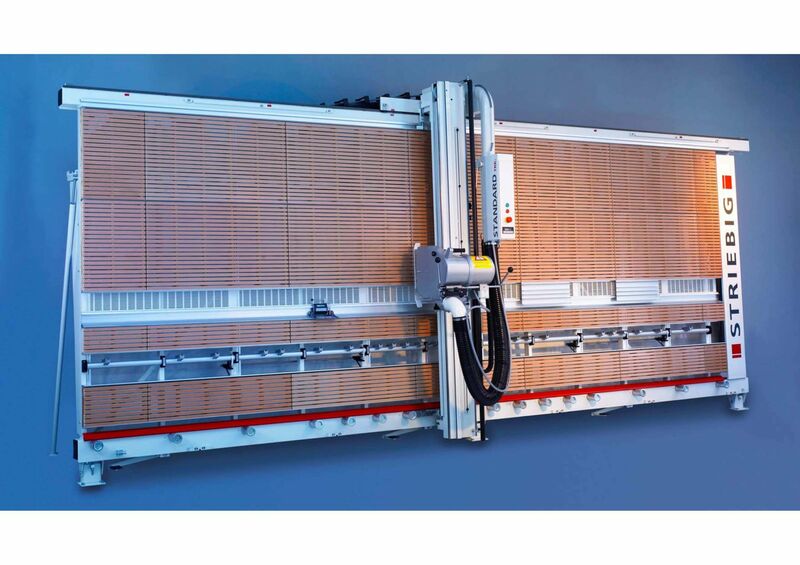

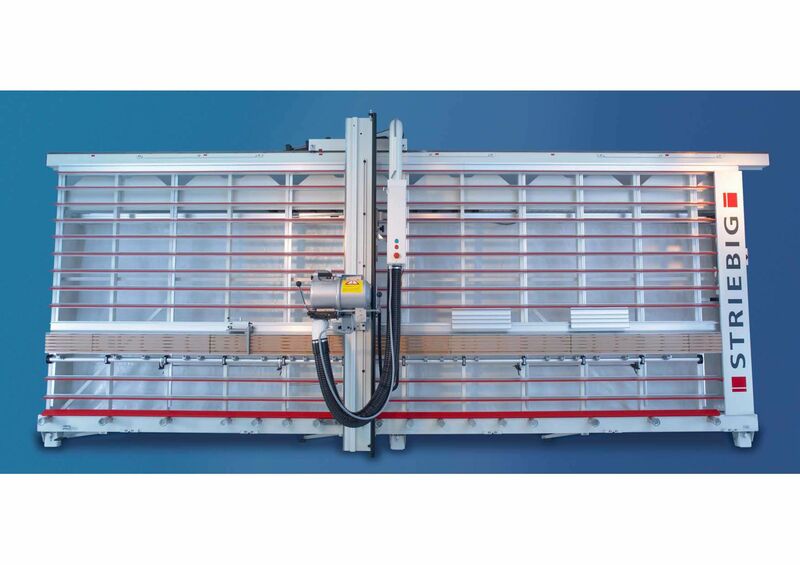

Introducing the Striebig Standard

For more information on the Striebig Standard, please contact R&J Machinery on 01455 840224

Product Features

  • Self-supporting, welded, rigid saw frame
  • Absolute parallelism of guide rail, central support and roller support
  • TRK2: automatically yielding aluminium support frame with plastic supports
  • TRK1: laminar support wall made of plywood birch
  • Exceptionally efficient integrated TRK dust extraction system, dust limit value well below 1 mg/m³
  • Aluminium small workpiece support (1 pair)
  • Roller support with 17 rollers and 3 brake pedals
  • Central support with aluminium frames over entire length
  • Stable, durable saw beam design
  • Perfect angular accuracy due to twin interlocking of the saw beam
  • Built-in strip cutting gauge for repeat cuts
  • Fixed dimension setting for recurring dimensions
  • Robust motor carriage bearing ensures very precise cutting
  • Compact vibration-free saw unit
  • Simple operation thanks to fully balanced unit
  • Powerful, high-torque 5.5 kW motor (7.5 hp)
  • Carbide circular saw blade 300/30 mm

Product Options

  • Digital measuring system DMS
  • Angle cutting unit WSG
  • Small workpiece support, wood
  • Document holder
  • Additional workpiece locking system
  • Central support: ’high-end’ frame made from synthetic materials
  • Grooving accessory for composite panels
  • Depth stop for the adjustable grooving tool
  • Profile cutter with reversible carbide tips:U-shape/135°/90°
  • Reversible carbide tips for adjustable grooving tools
  • Two-speed motor
  • Operating time counter
  • Special voltage
  • Tropical insulation
  • Pneumatically braked support rollers

Product Specification

Weight of the saw TRK 920Kg
Saw blade bore 30mm
Saw blade speed 4750 rpm
Cutting depth 80 mm
2 extraction connection Ø 100 mm
Wattage 7.5 kW
Mains connection 3 x 400 V / 50 Hz
Saw blade diameter 300 mm
Saw motor rating 5.5 kW
