Used Altendorf Elmo 4


Machine Sold

Sorry, this product has been sold and is no longer available. We have used machines arriving weekly so please call us to be first to hear about the very latest stock.

For sales and advice call today!

01455 840224

Send Your Enquiry
Book a Demo

About the Used Altendorf Elmo 4

Rare chance to buy an Altendorf F45 Elmo 4, machine in good condition with reasonably low usage.

Machine will be serviced and checked by our Altendorf Engineers prior to sale.

The Altendorf Elmo 4 is due to arrive in early October, but can be reserved now if required. Please contact our team on 01455 840225 for more details.

Used Altendorf Elmo 4 Features

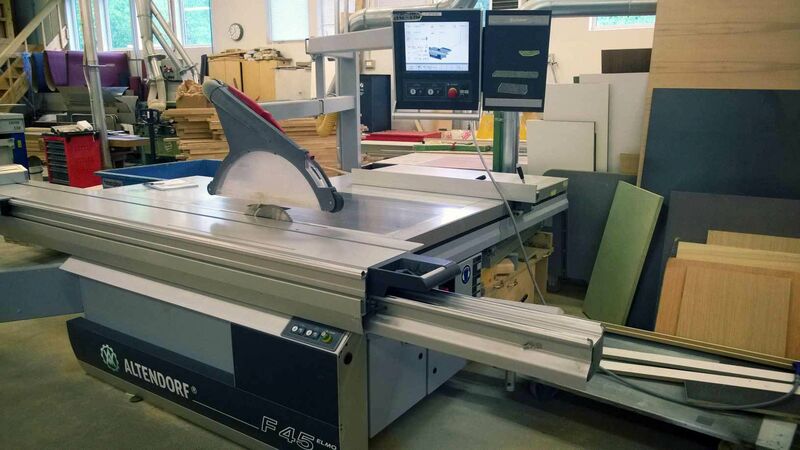

  • Altendorf Sliding Table Saw Model F45 ELMO IV with motorised rip and crosscut fences

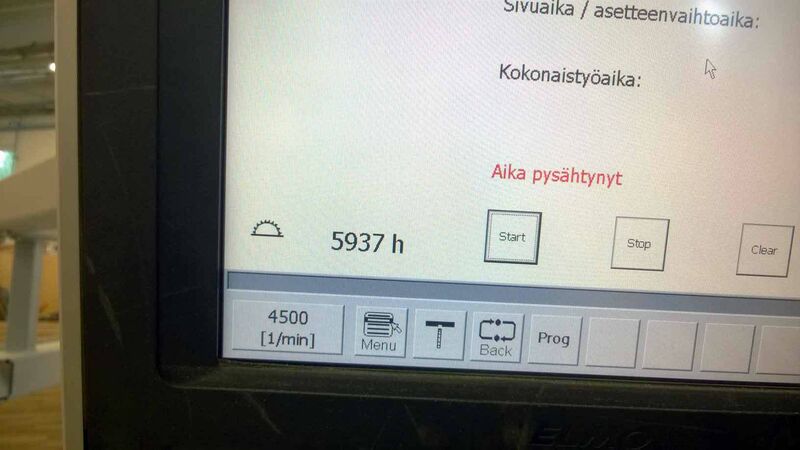

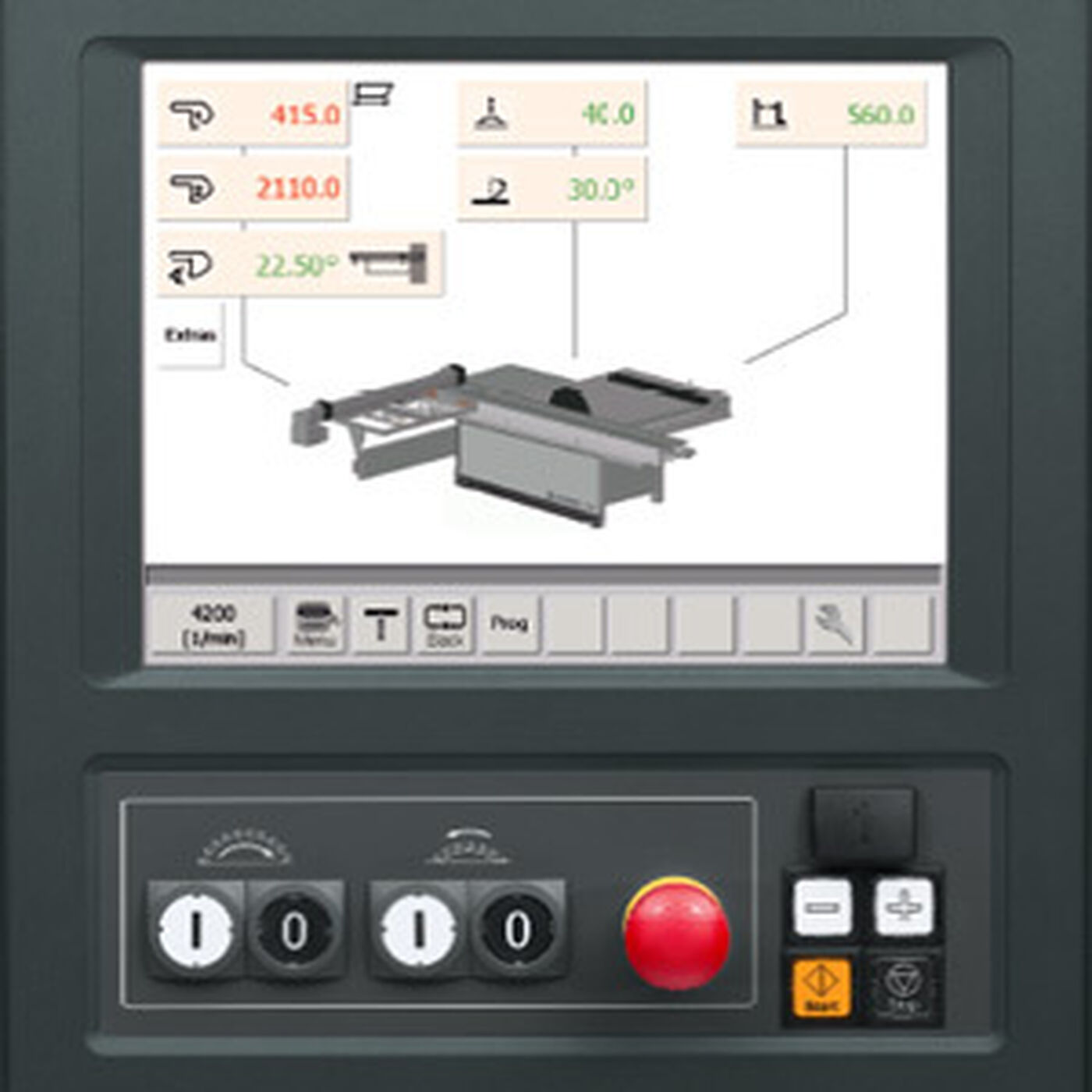

  • with touch-screen data entry mounted in eye-level control panel with clipboard

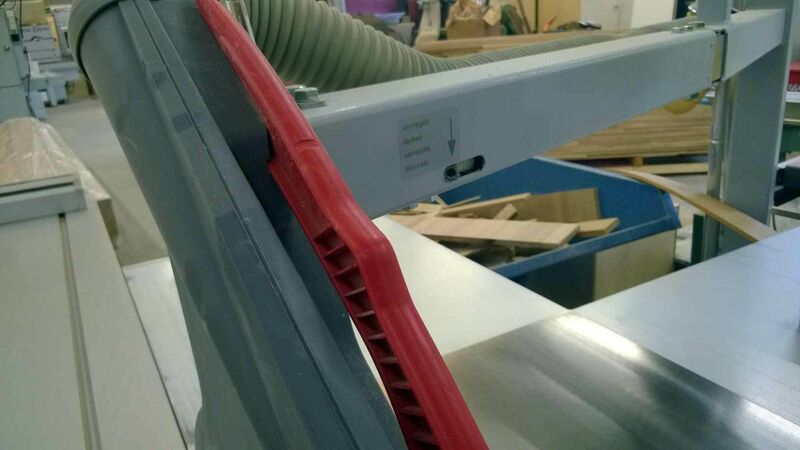

  • Depth of cut 175mm, parallel safety hood, swingaway support, max. sawblade dia. 500mm
  • Crosscut-mitre fence can be manually adjusted to the required angle, with automatic length compensation of the two motorised flip stops
  • The mitre angle can be adjusted to anywhere between 0 and 47°
  • The VARIO drive for infinitely variable speed adjustment (between 2 000 and 6 000 rpm.) forms an integral part of the machine.
  • The interface package option means the F 45 ELMO can be networked.
  • Special applications can be completed on the Elmo without any calculations bt the operator, such as:
  • • Incremental dimensions
  • • Grooving
  • • Bevel rip for accurate angle
  • • Compound mitres
  • • Mitre joints between pieces
  • • Cutting sequences
  • • Geometric shapes
  • • Measurement to the stops on the crosscut-mitre fence as a function of the blade angle and the thickness of the material.

Used Altendorf Elmo 4 Specification

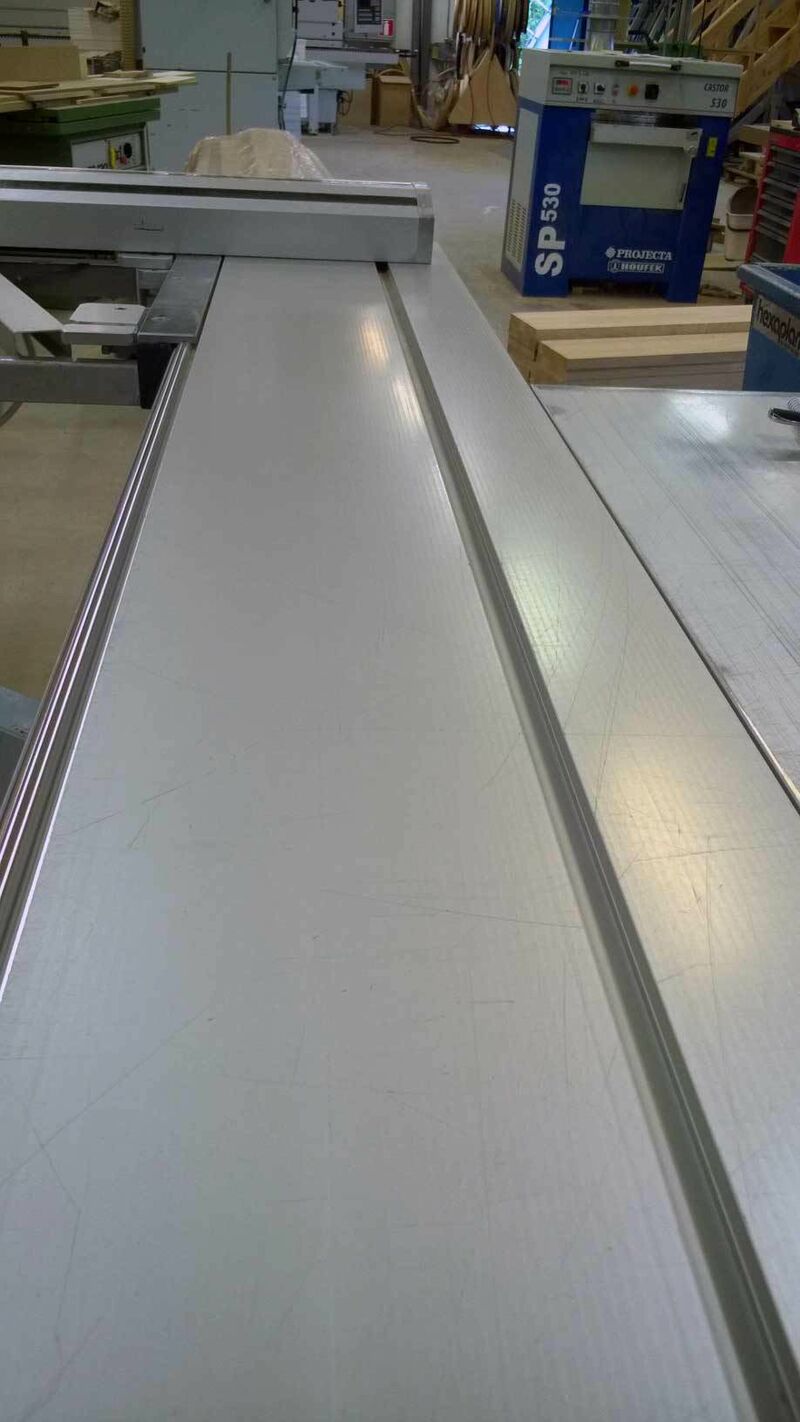

Sliding table length 3200mm
Main saw motor 5.5kW (7.5HP), infinitely variable from 2000 - 6000 rpm (VARIO)
Scoring unit: 2-AXIS scoring unit with motorised vertical + lateral setting

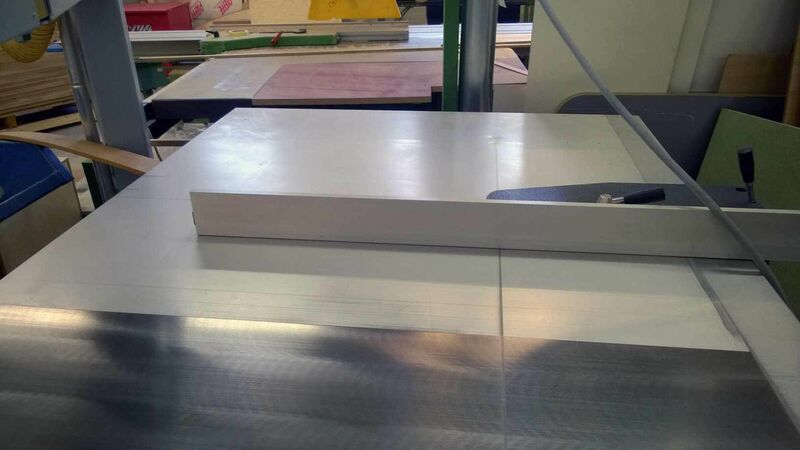

Rip Fence: motorised setting, anodised extension, 1600mm for ELMO

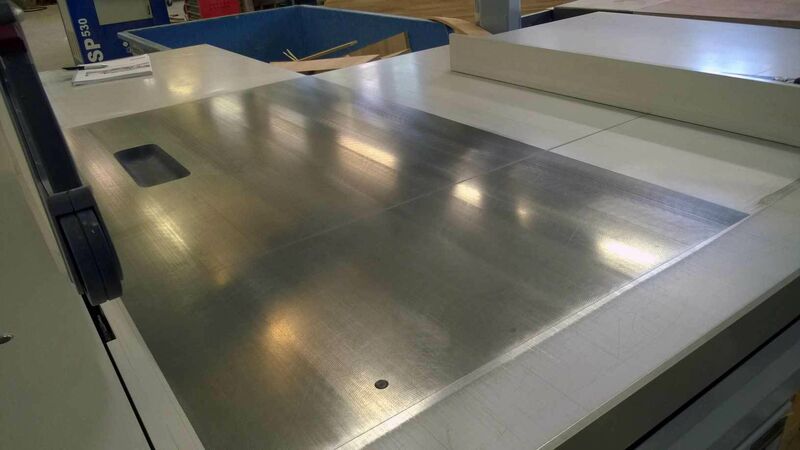

Main table extension, anodised aluminium 840mm length

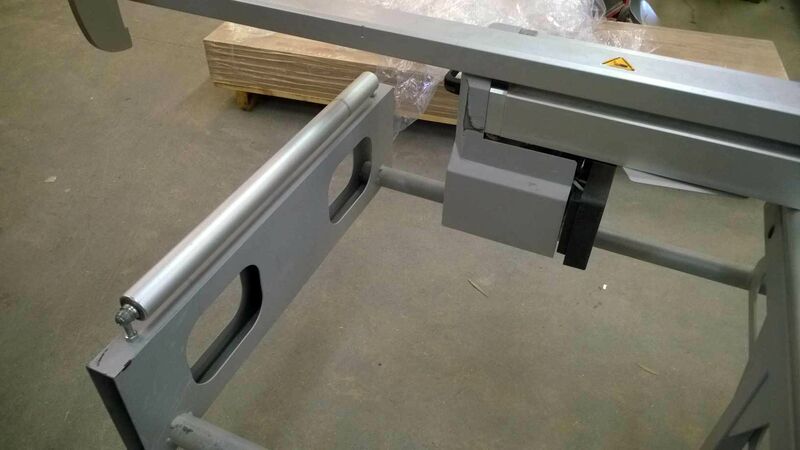

Infeed support table, swing away Yes
Crosscut-mitre fence with motorised stops to 3500mm, angles manual with auto. compensation Yes
Double sided mitre fence Yes - DUPLEX DD, stops to 1950mm, inc. auto length compensation
Cross slide extension 650mm, fixed, for ELMO IV Yes
STEG: additional workpiece support mounted on sliding table Yes
Depth of cut 175mm, parallel safety hood, swingaway support, max. sawblade dia. 500mm
Touch-screen data entry mounted in eye-level control panel with clipboard Yes
