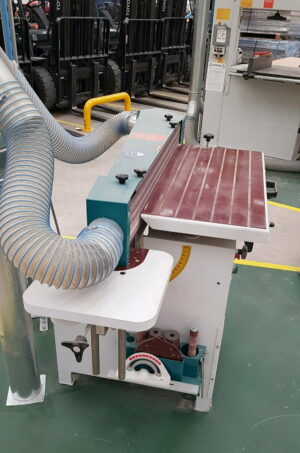

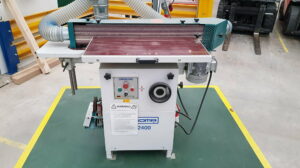

Used Wegoma KS 2400
Wegoma KS 2400 description
maintenance free motor driven oscillation

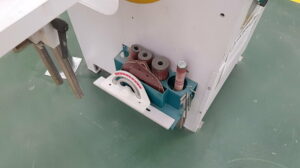

additional height adjustable table for radial sanding at the end of the sanding belt with sanding spindle and additional abrasive bobbins for external and internal shapes dia. 30, 40, 50 and 60mm
sanding belt unit – adjustable -10° – 90° easy and comfortable by handwheel
heavy steel construction of stand for stableness and running smoothness (machine weight 260kg)
big, heavy cast iron working table with easy height adjustment supported by gas pressure spring. Moving also forward and backwards to the sanding belt
precise angle accuracy by locking of the sanding unit
big dimensioned mitre guide
connection for dust collection – 1x at the left of the sanding belt cover, 1x at the right of the sanding belt cover, 1x the additional sanding table
stand with space for a hand lift to enable easy moving inside the workshop

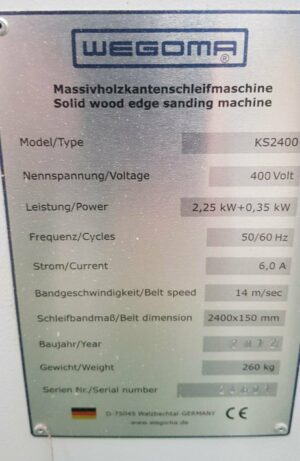

Used Wegoma KS 2400 Specification
| Voltage | 400V, 50 / 60 Hz |
|---|---|
| Power belt motor | 2,25 kW |
| Power oscillation motor | 0,25 kW |
| Belt speed: | 15 m/sec |
| Size of working table: | 800 x 400 mm |
| Working height Tisch | 890 mm |
| Size of additional table: | 350 x 350 mm |
| Belt size | 2,400 x 150 mm |
| Dimensions (L x W x H): | 1,450 x 600 x 1,200 mm |
| Dust Collection adapter: | 2 x Ø 100 mm |
| Weight | 260 kg |
