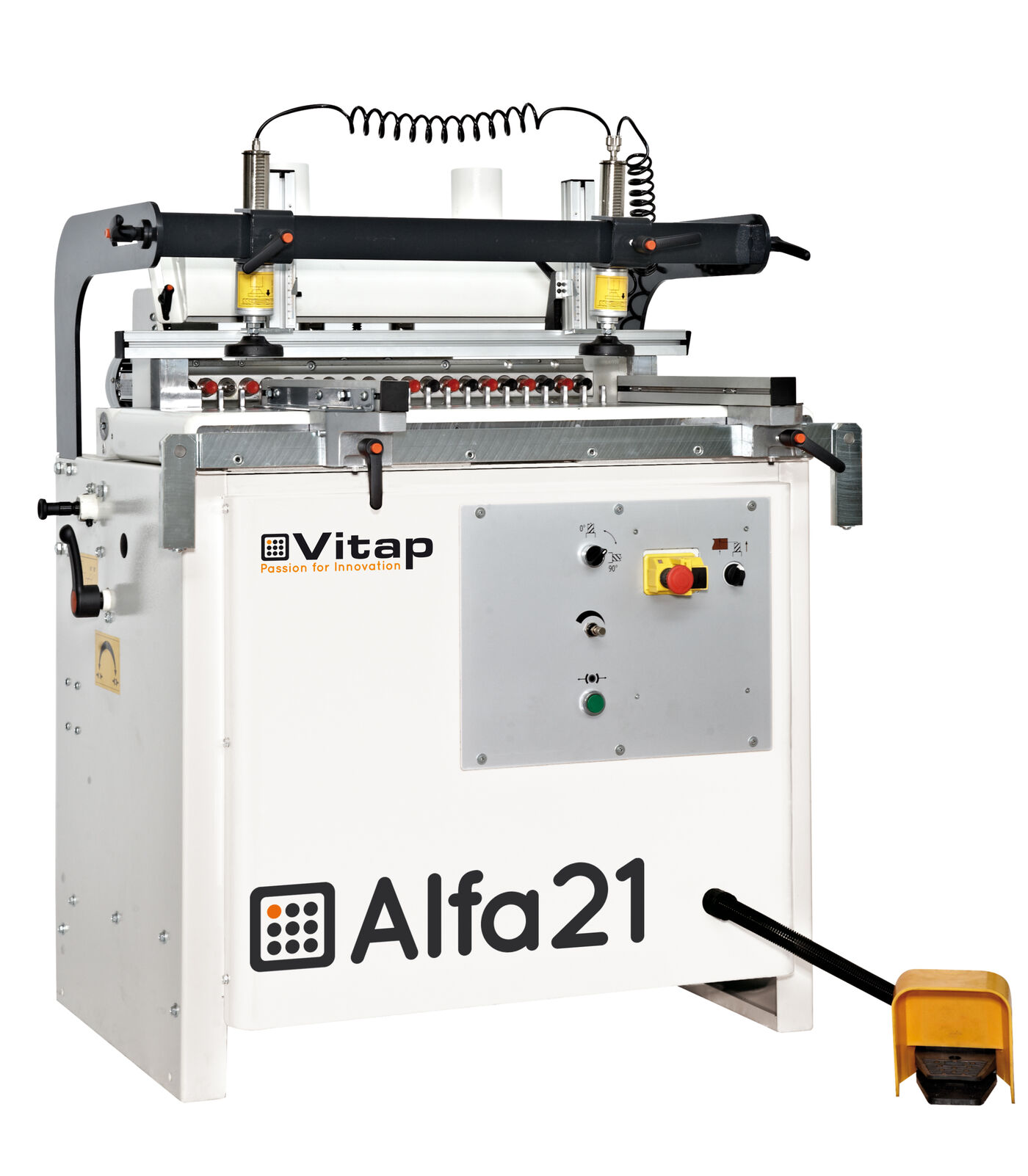

Vitap Alpha 21
Semiautomatic boring machine for small and medium batches production
Quick change spindle.
Revolver with 6 positions.
Strengthened structure.
Alu fence with 4 stops
Vitap Alpha 21 Specification
| Spindles | 21 No |
|---|---|
| Centerdistance between each spindle | 32 mm |
| Total centerdistance between fi rst and last spindle | 640 mm |
| Maximum depth of hole | 70 mm |
| Maximum dimensions of pieces to be drilled | 800 x 3000 mm |
| Spindle rotations per minute | 2800 mm |
| Motor power | 2 HP |
| Pressure | 6-8 Bar |
| Weight | 295 KG |
| Overall size | 1070 x 860 x 1140 mm |
