KUPER EFS 2800 Veneer Guillotine

Single-knife veneer guillotine for rapid and precise cutting of stacks of material

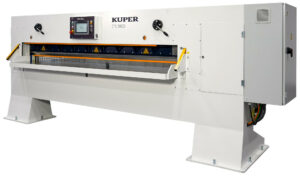

KUPER EFS 2800 Veneer Guillotine photo

Introducing the KUPER EFS 2800

The cost-effective and customisable solution that is intuitive and safe to use, making high-quality veneers possible

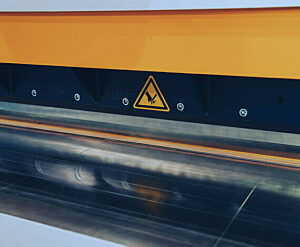

Clean, tear-free and parallel cutting edges are the basis for a good joint. The KUPER EFS 2800 ensures the highest cutting quality due to its swinging knife motions cutting at an angle of 20 degrees. Cutting veneer transverse to the fiber direction can also be easily performed.

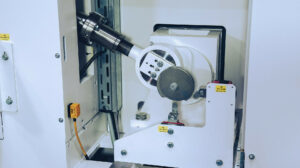

The narrow design of the KUPER EFS 2800 ensures the perfect view of the material and cutting surface every time. The cutting line is indicated by a guide light, guaranteeing an ultraprecise cut. Brake motor, gear drive and crank drive ensure rapid and powerful knife motion.

The width dimensions are approached automatically by the integrated positioning control. The pressure bar is lowered and as soon as the target pressure is reached, the cut is triggered. An angular set-up is recommended combined with the KUPER QFS cross cutting clipper. The support table with rip fence provides sufficient surface for comfortable handling even for very wide materials.


KUPER EFS 2800 Veneer Guillotine Base Specification

The Single Knife Veneer Guillotine KUPER EFS 2800 cuts of highest quality thanks to the swinging and powerful drawing motion of the knife. Additional advantages of this machine include:

  • bullet arrow icon Parallel fence with high-speed motordriven positioning, fine adjustment and digital gauge for cutting parallel face veneers and edge lippings.
  • bullet arrow icon Clearly visible marking of the cutting line by means of a green guide light.
  • bullet arrow icon Guide markings and an angular fence on the machine table for easier alignment of the material.
  • bullet arrow icon Broad pressure bar for pressing even wavy veneer materials and level prior to cutting.
  • bullet arrow icon Pre-cut facility with hydraulic adjustment of the cutter bar by 0.9 mm. Precutting and finish-cutting of the pressed material produces right-angled cut faces.
  • bullet arrow icon Powerful crank drive enables the cutting of veneer across the grain.
  • bullet arrow icon High pressing and cutting forces are reliably absorbed by the heavy-duty construction.
  • bullet arrow icon Precise and permanent parallel guidance of machine components.
  • bullet arrow icon Knife with 30 mm grinding allowance for longest possible use.
  • bullet arrow icon Intermittent operation of the drives results in a low energy requirement and a low level of noise.
  • bullet arrow icon Occupational safety regulations are met by a light barrier safety device, two-hand operation, electric safety control system and protective gratings at the rear.
A close-up photo of a KUPER engineer servicing a veneering machine
KUPER Servicing

KUPER machines are only as good as their preparation. Our in-house team of trained engineers are on-hand to visit your workshop and provide you with scheduled KUPER servicing, ensuring that your machines are optimised for maximum performance and continue to meet safety standards.

R&J Machinery is proud to be the main UK agent for KUPER

R&J Machinery has a long relationship with KUPER, and we are proud to be the main UK agents and importers for their machines and spare parts. We are one of the top-tier suppliers of KUPER veneering machines across Europe, and our team of service and repair engineers travels to KUPER in Germany for training on the latest machinery developments.

You can be sure that our team are fully qualified to offer you guidance on the ideal KUPER veneering setup for your needs, and are fully qualified to service and maintain your existing machines to the highest standard. We look forward to talking to you soon about all things KUPER!

For sales, servicing, parts, advice and support, please call our office team on 01455 840224.
