TigerStop
Measuring and adjusting is now a lot easier!
Introducing the TigerStop
Measuring and adjusting is now a lot easier!
Select from the configurations available:
Our Price
£6,960.00
+ VAT
Our Price
£7,707.00
+ VAT
Our Price
£8,206.00
+ VAT
Our Price
£8,788.00
+ VAT
Our Price
£9,173.00
+ VAT
Our Price
£9,548.00
+ VAT
Our Price
£10,057.00
+ VAT
Our Price
£10,504.00
+ VAT
Our Price
£11,326.00
+ VAT
Our Price
£12,132.00
+ VAT
Our Price
£12,834.00
+ VAT
For sales and advice call today!
01455 840224

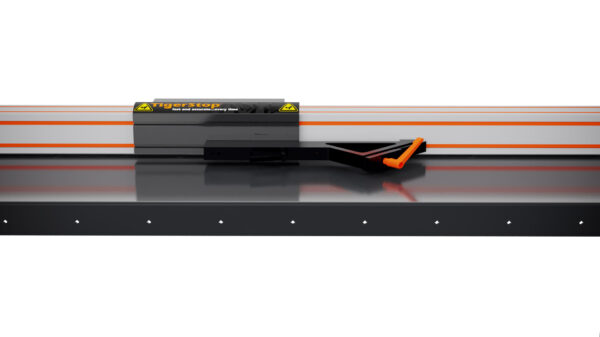

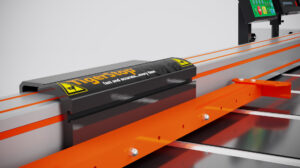

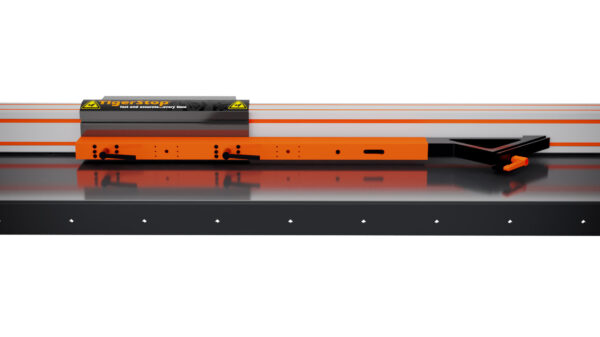

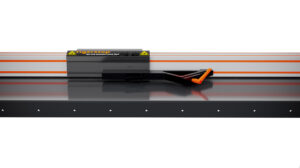

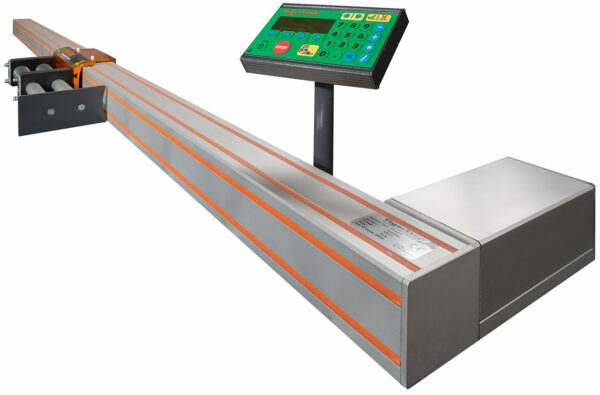

The automatic programmable stop and push feed system
TigerStop is an automated material pusher and stop that will turn your existing machine into a lean manufacturing asset. Take your operations to a whole new level with the product that started it all. It is easy and quick to mount on machines in the wood, PVC, aluminium and metal industry.

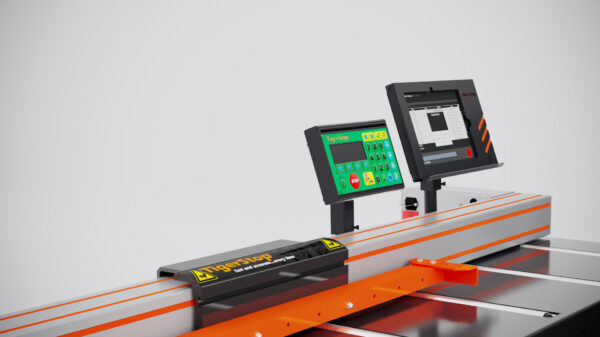

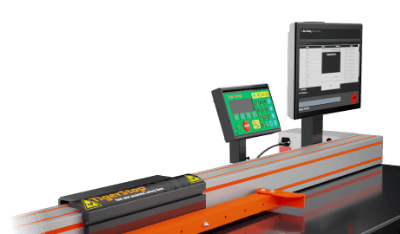

Tigerstop systems can be mounted left or right side of machine / equipment. The aluminium fence is robust and 100mm x 100mm in size. The power supply required is a standard 230v, 13amp 3 pin socket. Positioning speed of the Tigerstop is 60m per minute, and the repeat accuracy is 0.1mm. Information can be input via the 4 line LCD screen and key pad controller or by downloading to the controller. The maximum pushing weight is 100kg.
TigerStop Features
Tigerstop can be fitted to existing tables as long as suitable brackets are available to help mount the Tigerstop, or tables can purchased specifically designed to take the Tigerstop.
Accurately measuring material and subsequently setting manual length stops requires time and experience. Setting errors are not uncommon and they result in a loss of time and material. With the TigerStop this is a thing of the past.
These are the advantages
Work faster
With the TigerStop you increase productivity. The automatic system allows a much faster processing of your long or heavy material. You key in the size or saw list and the TigerStop automatically moves to the correct position and performs the operation.
Higher precision
The TigerStop positions quickly to the desired length with repeat accuracy of +/- 0.1 mm, every time. Thanks to this precision, less post- processing is required and your tape measure or manual stop are unnecessary!
Easy to use
The TigerStop is particularly user-friendly. The simple operation speaks for itself, so you can get started quickly. Where you used to determine the length with a manual stop or tape measure, the TigerStop now does this very simply and quickly.
It is no longer necessary to adjust the machine, which saves you money.
What can you do with the TigerStop?
The TigerStop has a large number of standard functionalities and is easy to mount on existing machines used in the wood, aluminium, metal and plastic industries.
Do you work with heavy or very long materials?
The HeavyDuty is the heavy version of the TigerStop and offers a load capacity of no less than 600 kg and 24 meters! Just like the TigerStop, it enables fast and accurate positioning time and time again.
-
Attach to your new or old machinery
-
Available in lengths of 2m, 3m, 4m, 4.8m, 6m, 6.8m, 7.4m, 8.5m, 9.2m and 9.6m
-
Best in class material optimization with Dynamic Optimization software upgrade
-

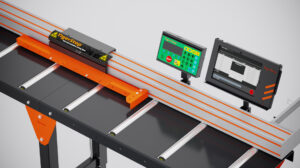

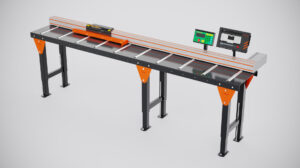

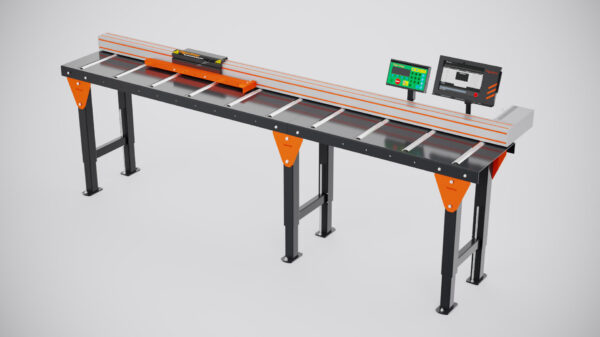

Push feed up to 80 kg with roller tables
-
TigerLink 6 Cut List Downloading software upgrade
-

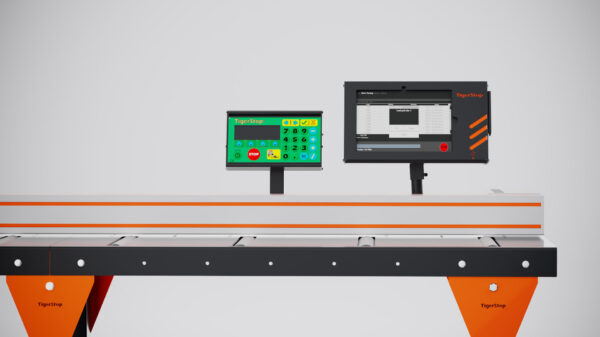

Touch screen control
-
Push, pull, and position material
