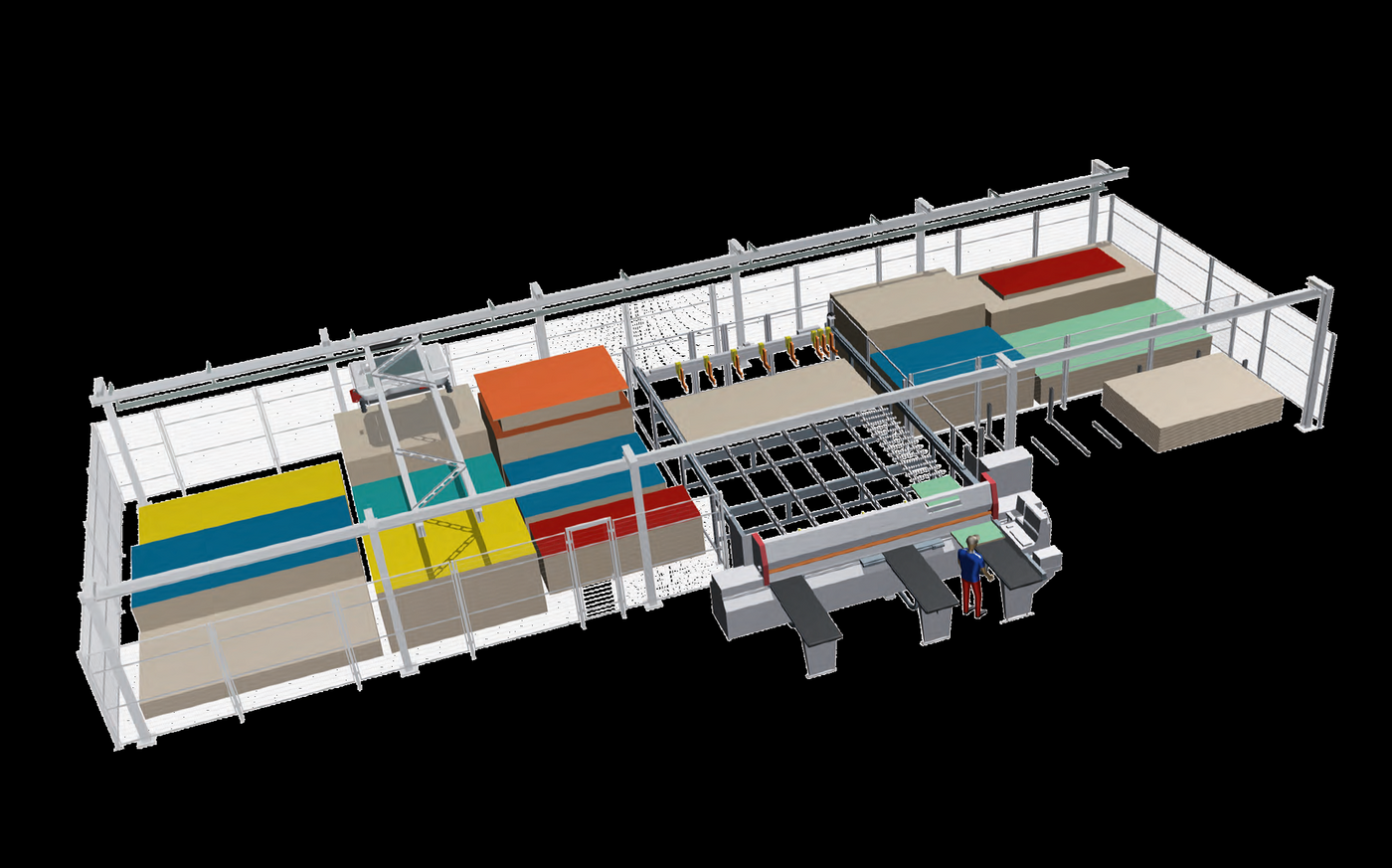

Barbaric CSF Panel Storage System

'Innovation in Perfection'

The panel storage system CSF combines functionality, performance and design in one machine. With hundreds of systems installed worldwide Barbaric has become a specialist in warehouse logistics and vacuum technology. For any company in the crafts, supplying or industry, Barbaric can offer suitable storage solutions.

It has a unique design and narrow body. All essential functions and components are integrated. Touch screen and control panel are located at any point on the ground.

CAD optimised product design and low net weights meet the high demands of fast speed and short cycle times. Optimum use of space - only 100 mm lateral distance in all directions is required.

With the 90° rotation unit, panels can be stored in all directions. In each stacking process the panels are measured and weighed. High Process reliability through continuous measuring and recording of the weight of the panels. Orientation of the angular position while driving. 180° rotation unit optional.

Barbaric CSF Panel Storage System Features

Tick bullet point High efficient production facilities require modern control systems
Tick bullet point Intuitive user interface and modern layout
Tick bullet point 21" touch display
Tick bullet point Material administration and production control
Tick bullet point Office terminal
Tick bullet point Material parameters
Tick bullet point SQL data base
Tick bullet point Online interface for optimization software
Tick bullet point External storage management
Tick bullet point Remote control
Tick bullet point Optimized material flow
Tick bullet point Gentle manipulation, no damaging of the panels during transport
Tick bullet point Optimization of space
Tick bullet point Reduced personnel expenses
Tick bullet point Simplification and alleviation of production processes
Tick bullet point Higher capacity utilization of your manufacturing machine
Tick bullet point Highest flexibility in production processes
Tick bullet point Best possible material utilization due to re-integration of cutting rests
Tick bullet point Integrated warehouse management
Tick bullet point Payback periods of one to two years
Tick bullet point Order picking - operation without saw possible

Barbaric CSF Panel Storage System Options

Tick bullet point System size crane runway longer on request
Tick bullet point System size crane bridge up to 16,5m
Tick bullet point Panel size length max.5600mm
Tick bullet point Panel size width others on request
Tick bullet point Panel size thickness from 3mm
Tick bullet point Panel weight up to 300kg
Tick bullet point Rest sizes for re-integration length 1200mm - 4200mm
Tick bullet point Stack height up to 2500mm
Tick bullet point Stack distance 100mm

Barbaric CSF Panel Storage System Specification

System Size: Crane runway up to 50m
System Size: Crane bridge up to 13m
Movement Speeds: X Axis 130 m/min
Movement Speeds: Y Axis 110 m/min
Movement Speeds: Z Axis 40 m/min
Panel Sizes: Length 2000mm - 4200mm
Panel Sizes: Width 600mm - 2100mm
Panel Sizes: Thickness from 6mm
Panel Weight 200Kg
Rest Sizes for re-integration: Length 200mm - 4200mm
Rest Sizes for re-integration: Width 600mm - 2100mm
Stack height 1800mm
Stack distance 150mm
Lifting hole 2000mm x 600mm
