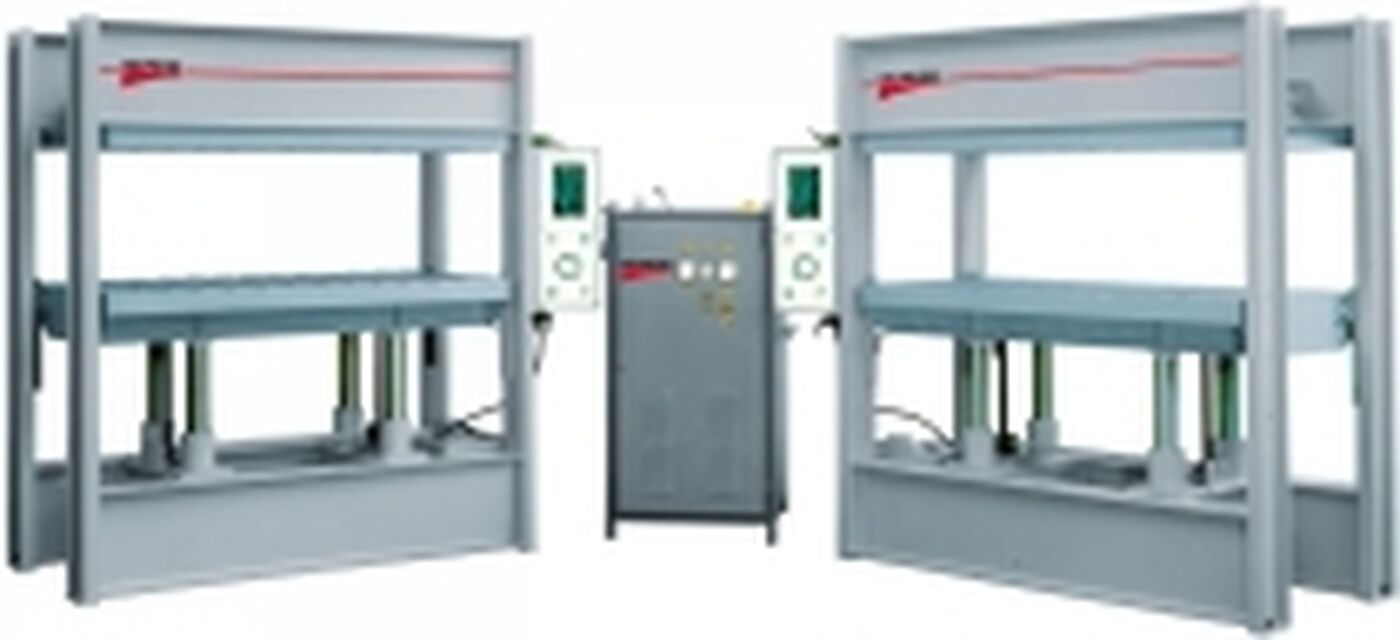

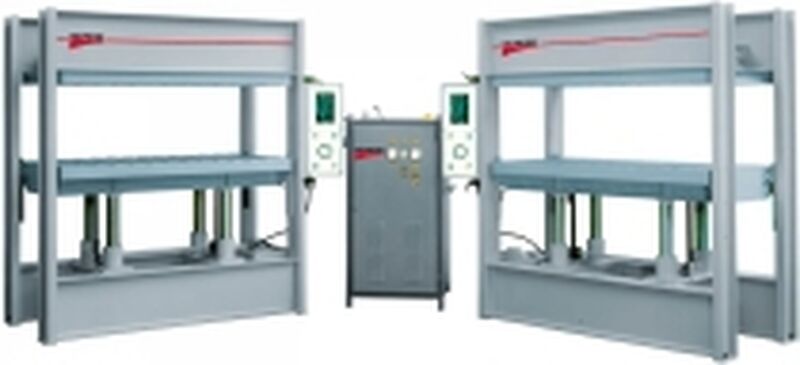

Italpresse Hydraulic Press mod. PHF/50
The Italpresse Hydraulic Press mod. PHF is available in various specifications, please contact R&J Machinery on 01455 840224 for further details.
Italpresse Hydraulic Press mod. PHF/50 Features
For glueing and bending at the same time, by high frequency generator
Upstroke movement
Safety upstroke operated by two pushbuttons placed on the control board
Self-lubricating guides diagonally placed, for flatness control
Thrust adjustable by means of a pressure gauge
Device for the locking of the mobile platen for the safety during the maintenane phase
Italpresse Hydraulic Press mod. PHF/50 Options
Automatic opening with timer
High speed approach with soft pressure
Connection between high frequency generator and one press. Earth connection of the system made by aluminium strips and galvanised steel sheet on the floor
Connection bewtween high frequency and two presses. Earth connection of the system made by aluminium strips and galvanised steel sheet on the floor
CE safety devices for one press and a H.F generator. Metal sliding net door on the loading side. Fixed nets on other sides
CE saftey devices for two presses with H.F generator. Metal sliding net door on the loading side. Fixed nets on other sides
CE safety devices for two presses with H.F generator. Metal sliding net doors on front and back sides of the presses. Fixed nets on the other sides
Italpresse Hydraulic Press mod. PHF/50 Specification
| Platens dimensions | 1,300 mm x 800 mm |
|---|---|
| Thrust | 50 ton |
| Opening | 1000 mm |
| Number of cylinders | 4 |
| Cylinders stroke | 400 mm |
| Motor power | 1.5 kW |
