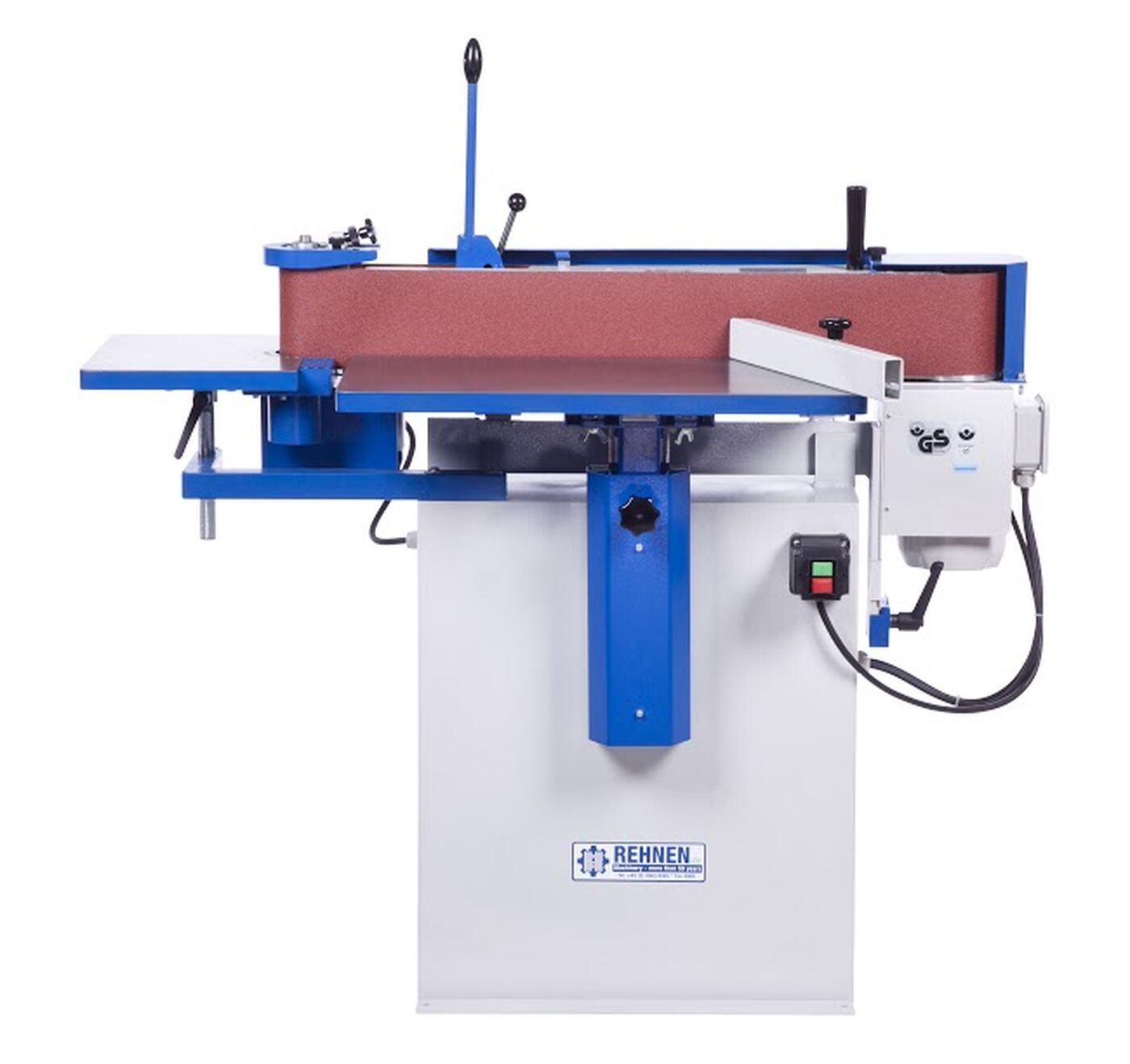

Rehnen Edge Sanding Machine Junior R1

About the Rehnen Edge Sanding Machine Junior R1

The highly robust Junior R1 offers all the features you would expect from a state-of-the art edge sanding machine.


A solid cast iron sanding unit equipped with a powerful motor ensures maximum sanding performance.
The spring-action, height-adjustable work table ensures optimum belt utilisation and safe working. You also have the option of upgrading the device with a belt oscillator, a continuous-swivel unit, a veneer sanding unit and an additional table for sanding work on the pulley.

For more information please contact R&J Machinery on 01455 840224.

Rehnen Edge Sanding Machine Junior R1 Features

Tick bullet point A solid cast iron sanding unit equipped with a powerful motor ensures maximum sanding performance
Tick bullet point The spring-action, height-adjustable work table ensures optimum belt utilisation and safe working
Tick bullet point You also have the option of upgrading the device with a belt oscillator, a continuous-swivel unit, a veneer sanding unit and an additional table for sanding work on the pulley
Tick bullet point Machine table adjustable in height by spring pressure

Rehnen Edge Sanding Machine Junior R1 Options

Tick bullet point Motor driven belt oscillator - Approx.10mm
Tick bullet point Continuous -swivel sanding unit 90 degrees
Tick bullet point Veneer edge sanding unit
Tick bullet point Additional table on the pulley
Tick bullet point (All the above items are fitted to the stock machine)

Rehnen Edge Sanding Machine Junior R1 Specification

Voltage 400 V, 50 Hz
Motor Power 2.2 kW
Sanding Belt Dimensions 150 mm x 2,280 mm
Speed of Sanding Belt 22 m/sec
Table Size 350 mm x 750 mm
Space Requirements 800 mm x 1,000 mm
Weight 180 kg
Extractor Connection Diameter 100 mm
Noise Emitted at Work Station 83dB (A)
