Rehnen Edge Sanding Machine SK-1

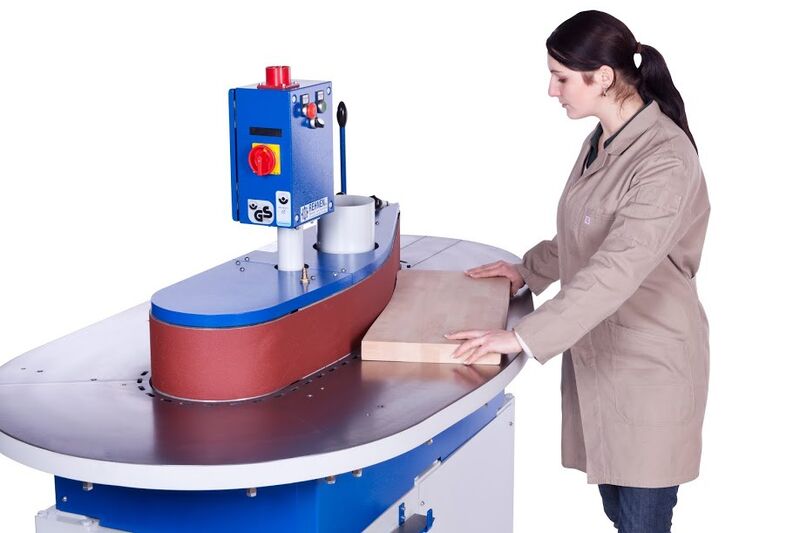

The edge sanding machine SK-1 is ideal for sanding large, curved and straight workpiece edges.
For further information please contact R&J Machinery on 01455 840224.
Rehnen Edge Sanding Machine SK-1 Features

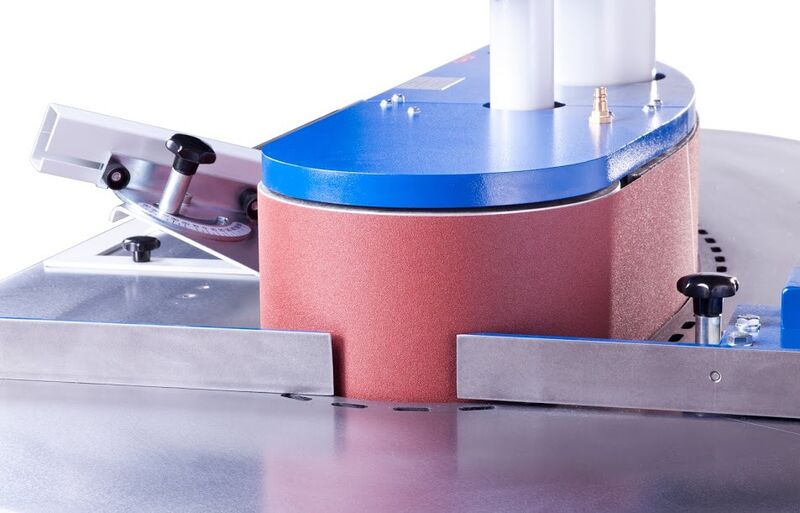

The SK 1 is primarily used for sanding radii and moulded parts
The sanding unit, which features radii of 80 mm, 300 mm and 1,000 mm, is also equipped with a straight sanding surface
The pneumatic, continuously height-adjustable oscillator and heavy cast iron sanding unit ensure full belt utilization and a high-precision sanding result
The generously sized, circumferential working table with integrated extraction ensures easy and ergonomic working
Rehnen Edge Sanding Machine SK-1 Options
Transport unit with large rollers
Sanding belt width: 200 mm
Swivelling additional table
Veneer sanding unit
Other sanding belt widths available upon request
Rehnen Edge Sanding Machine SK-1 Specification
| Voltage | 400V, 50Hz |
|---|---|
| Motor Power | 4 kW |
| Size of Sanding Belt | 150mm × 2700mm |
| Speed of Belt | 15m/sec |
| Table Size | 345mm × 2000mm |
| Required Place | 2000mm × 3000mm |
| Weight | 560Kg |
| Extractor Connection | Diameter 140mm |
| Air Requirement | 80-90 l/min |
| Continuously variable pneumatic oscillator, adjustable | 30-130mm |
| Noise Emitted at Work Station | 84 dB (A) |
