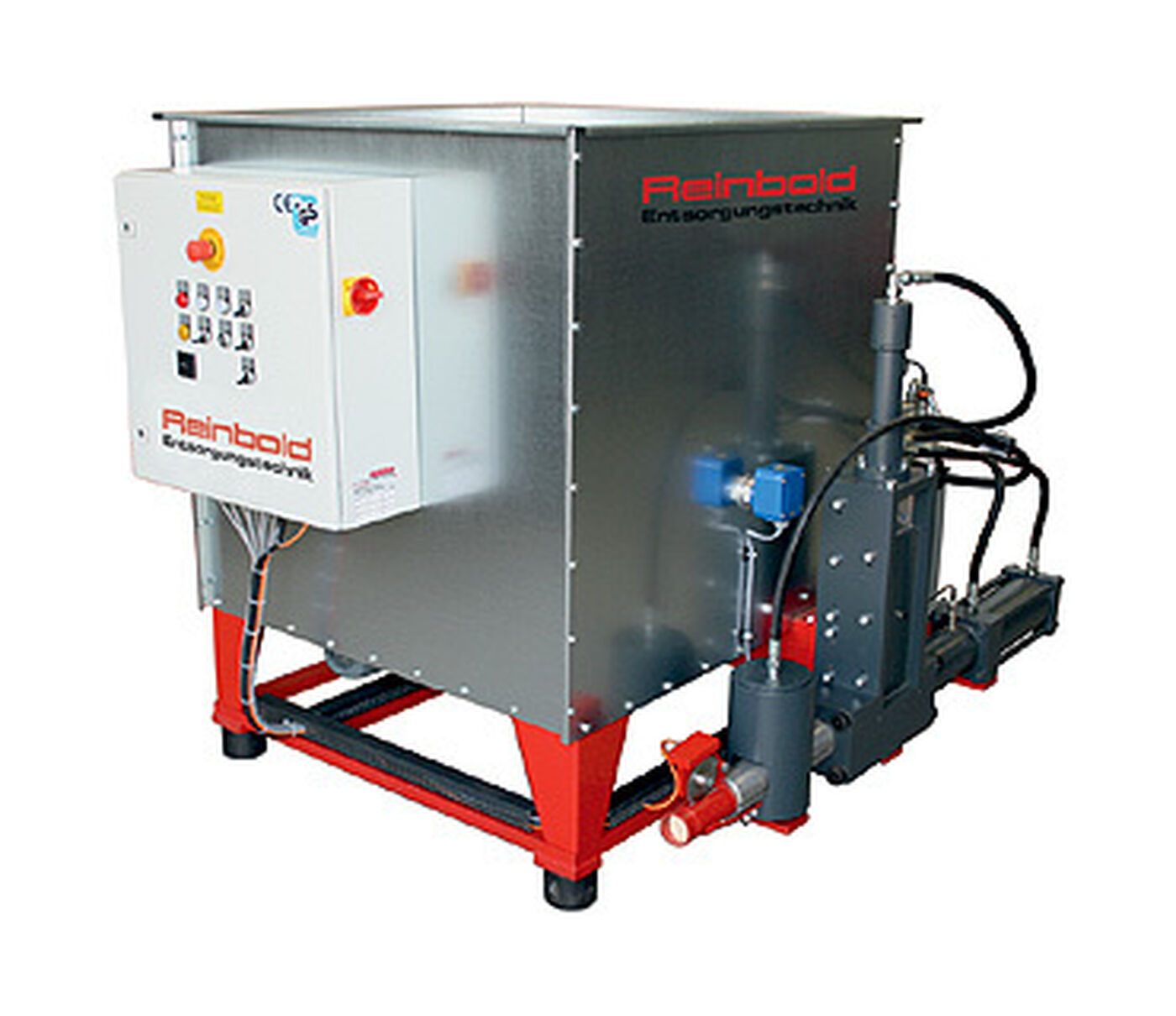

Reinbold RB 20 SV Briquetting Press

Our Price £POA

The price for this product is on application only. Please contact us to discuss the options available to you.

For sales and advice call today!

01455 840224

About the Reinbold RB 20 SV Briquetting Press

The RB 20 SV not only has compact dimensions, but it is also a workhorse. Ideal applications are small and mid-sized companies that are concerned with optimising the cost/benefit ratio. Prestige series models are supplied complete with hydraulic oil and a safety switch for oil temperature.

Many materials can be compressed, such as: Hard or soft wood, planing materials, wood chips, sawdust and sanding dust when mixed with other materials, wooden materials, particle and chipboard, multiplex, OSB, paper, cardboard, and other material, such as straw, hay, Styrofoam...

Maximum material moisture should not exceed 18%.

Reinbold RB 20 SV Briquetting Press Features

  • The agitator feed the material to be compacted via a screw conveyor into the press block.
  • A sophisticated hydraulic-control for economic efficiency
  • Compact and easy to maintain hydraulic unit.

Reinbold RB 20 SV Briquetting Press Options

  • Automatic on / off with level limit switch
  • Low oil switch
  • Oil heater
  • Access door
  • Access door with safety limit switches
  • Container lid
  • Ingrease the container walls 500 mm
  • Stronger gear
  • Transport tube
  • Transport tube 45°
  • Transport tube 90°
  • Delivery of the briquetting press in several parts (additional price)
  • Harness for the control cabinet
  • Special sealing for the level - filling slide

Product Documentation

Reinbold RB 20 SV Briquetting Press Specification

KW 4
Throughput 20-40
Briquette size 40
Hopper dimention 100
