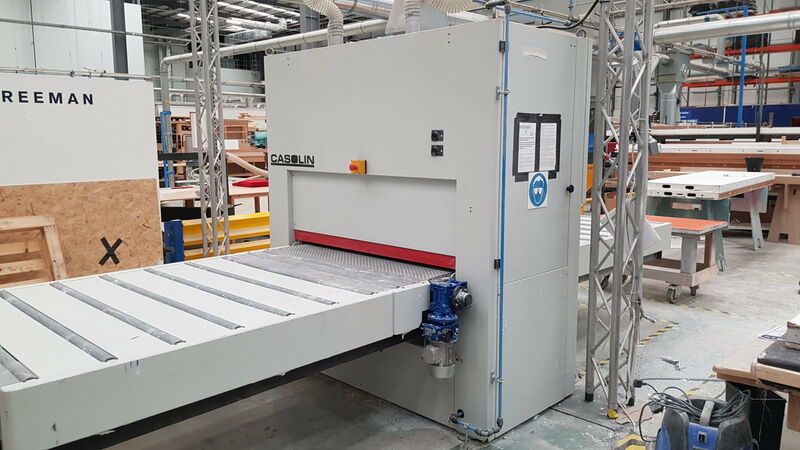

Used Casolin Sander
SELF CENTERING OF THE SANDING BELTS BY THE “ECO GEAR SYSTEM” OUR PATENT
BELTS ROTATION FAST STOP BRAKE
OSCILLATING TENSIONING ROLLERS
RUBBER COATED PRESSURE ROLLERS
SAFETY BAR
ELECTRONICAL DIGITAL READ OUT OF WORK PIECE THICKNESS
N°2 INFEED AND N°2 OUTFEED TABLE ROLLERS
N°3 SUCTION HOODS D.160 + N°2 D.80
AUTOMATIC WORK THICKNESS POSITIONING
AUTOMATIC CONVEJOR BELT CENTERING
PNEUMATIC ESCLUSION OF ROLLERS
Used Casolin Sander Specification
| WORKING WIDTH | 1,350 mm |
|---|---|
| SANDING BELT SIZE WIDTH x LENGTH | 1,370 x 2,620 mm |
| MAX WORKING HEIGHT | 160 mm |
| CALIBRATING STEEL ROLLER | Ø 180 mm |
| SANDING RUBBER COATED ROLLER | Ø 180 mm |
| FINISHING PAD | 50 mm |
| SANDING BELTS MOTOR POWER WITH INVERTER | 20 HP |
| SANDING BELTS SPEED | 18 – 16 m/sec |
| VARIABLE FEED SPEED MOTOR POWER | 0.75 HP |
| FEED SPEED | 4 / 20 m/min |
| WORK TABLE LIFTING MOTOR POWER | 033 HP |
