Used Altendorf Elmo 4
Our Price
£18,950.00
+ VAT
Availability
Sold
Available from only £89.28 per week on our competitive finance packages.
Sorry, this product has been sold and is no longer available. We have used machines arriving weekly so please call us to be first to hear about the very latest stock.
For sales and advice call today!
01455 840224
About the Used Altendorf Elmo 4
Rare chance to buy an Altendorf F45 Elmo 4, machine in good condition with reasonably low usage.
Machine will be serviced and checked by our Altendorf Engineers prior to sale.
The Altendorf Elmo 4 is due to arrive in early October, but can be reserved now if required. Please contact our team on 01455 840225 for more details.
Used Altendorf Elmo 4 Features
-

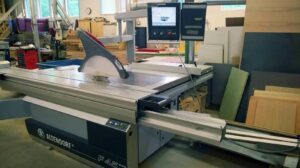

Altendorf Sliding Table Saw Model F45 ELMO IV with motorised rip and crosscut fences
-

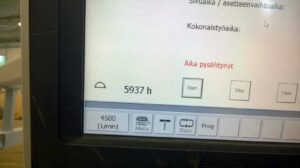

with touch-screen data entry mounted in eye-level control panel with clipboard
-

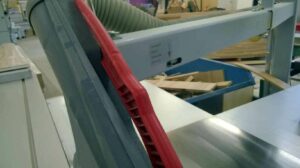

Depth of cut 175mm, parallel safety hood, swingaway support, max. sawblade dia. 500mm
-
Crosscut-mitre fence can be manually adjusted to the required angle, with automatic length compensation of the two motorised flip stops
-
The mitre angle can be adjusted to anywhere between 0 and 47°
-
The VARIO drive for infinitely variable speed adjustment (between 2 000 and 6 000 rpm.) forms an integral part of the machine.
-
The interface package option means the F 45 ELMO can be networked.
-
Special applications can be completed on the Elmo without any calculations bt the operator, such as:
-
• Incremental dimensions
-
• Grooving
-
• Bevel rip for accurate angle
-
• Compound mitres
-
• Mitre joints between pieces
-
• Cutting sequences
-
• Geometric shapes
-
• Measurement to the stops on the crosscut-mitre fence as a function of the blade angle and the thickness of the material.
Used Altendorf Elmo 4 Specification

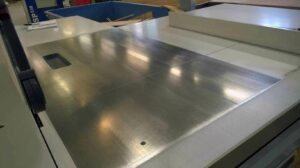

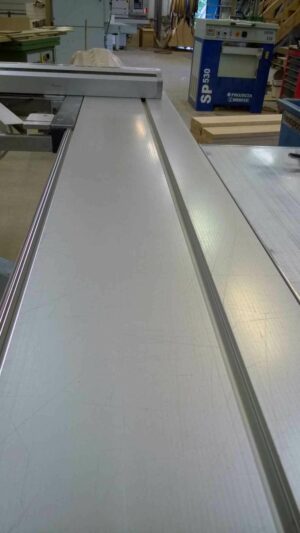

| Sliding table length | 3,200 mm |
|---|---|
| Main saw motor | 5.5 kW (7.5 HP), infinitely variable from 2,000 - 6,000 rpm (VARIO) |
| Scoring unit | 2-AXIS scoring unit with motorised vertical + lateral setting |
| Rip Fence | Motorised setting, anodised extension, 1,600 mm for ELMO |
| Main table extension, anodised aluminium | 840mm length |

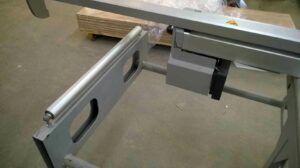

| Infeed support table, swing away | Yes |
| Crosscut-mitre fence with motorised stops to 3500mm, angles manual with auto. compensation | Yes |
| Double sided mitre fence | Yes - DUPLEX DD, stops to 1,950 mm, inc. auto length compensation |
| Cross slide extension 650mm, fixed, for ELMO IV | Yes |
| STEG: additional workpiece support mounted on sliding table | Yes |
| Depth of cut 175mm, parallel safety hood, swingaway support, | Max. sawblade dia. 500 mm |

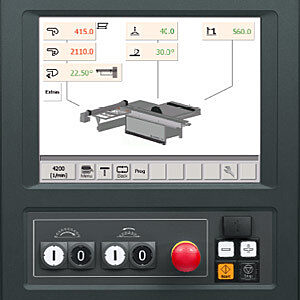

| Touch-screen data entry mounted in eye-level control panel with clipboard | Yes |
