Sorry, this product has been sold and is no longer available. We have used machines arriving weekly so please call us to be first to hear about the very latest stock.
The DR53 is a very robust combination machine with a working width of 530mm and an overall surfacing table length of over 2300mm making it ideal for straightening timber. The thicknesser has a capacity from 5mm up to 250mm.
The bridge guard is also sprung to ensure it is always correctly positioned. The aluminium fence is inclinable to 45º and has a double tilting mechanism to maintain accuracy over its full length when inclined. The angle being indicated on a clearly visible scale. Movement of the fence across the cutter block is on a central round bar which gives a smooth movement over its entire scope of travel.
Working width | 530 mm |
---|---|
Total table length | 2300 mm |
Infeed table length | 1120 |
Cutter block | 120 mm Dia with 4 knives |
Cutter block speed | 4800 rpm |
Max depth of cut | 8 mm planer 7 mm thicknesser |
Thicknessing capacity | 515 mm x 250 mm |

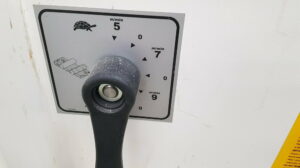

Feed speeds | 7 / 11 / 15 / 19 m / min |
Main motor power | 5.5hp |
Extraction connection | 120 mm |
Extraction requirement | 600 Cfm / 1000 M³h |
Electrical connection | 3ph / 415v / 50Hz |
Net weight | 560 kg |
